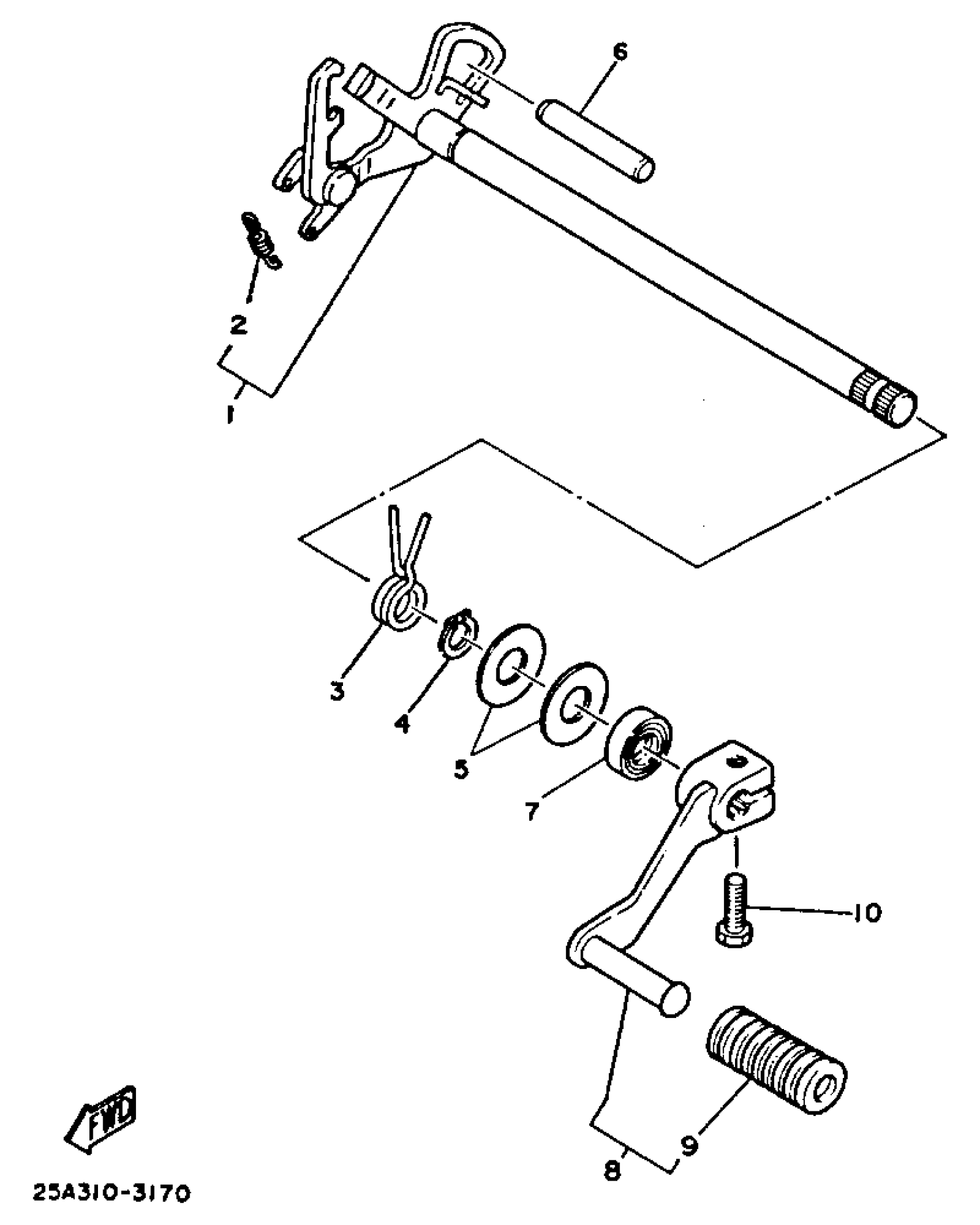

Yamaha TW200TC (TRAILWAY) 1987 SHIFT SHAFT Diagram

#

Description
Price

1

SHIFT LEVER ASSY

5H0-18120-02-00

$89.27

2

SPRING, TENSION (4H7)

90506-08227-00

$2.80

3

SPRING, TORSION (15A)

90508-29540-00

$6.11

4

CIRCLIP

99006-10600-00

$6.59

5

WASHER

90201-12588-00

$6.05

6

PIN, DOWEL (4H7)

93608-50158-00

$6.58

7

SEAL, OIL (30X)

93102-12321-00

$9.98

8

SHIFT PEDAL ASSY

1RL-18110-00-00

$22.52

9

COVER, CHANGE PEDAL

132-18113-01-00

$6.08

10

BOLT, HEXAGON

97017-06020-00

$2.42
