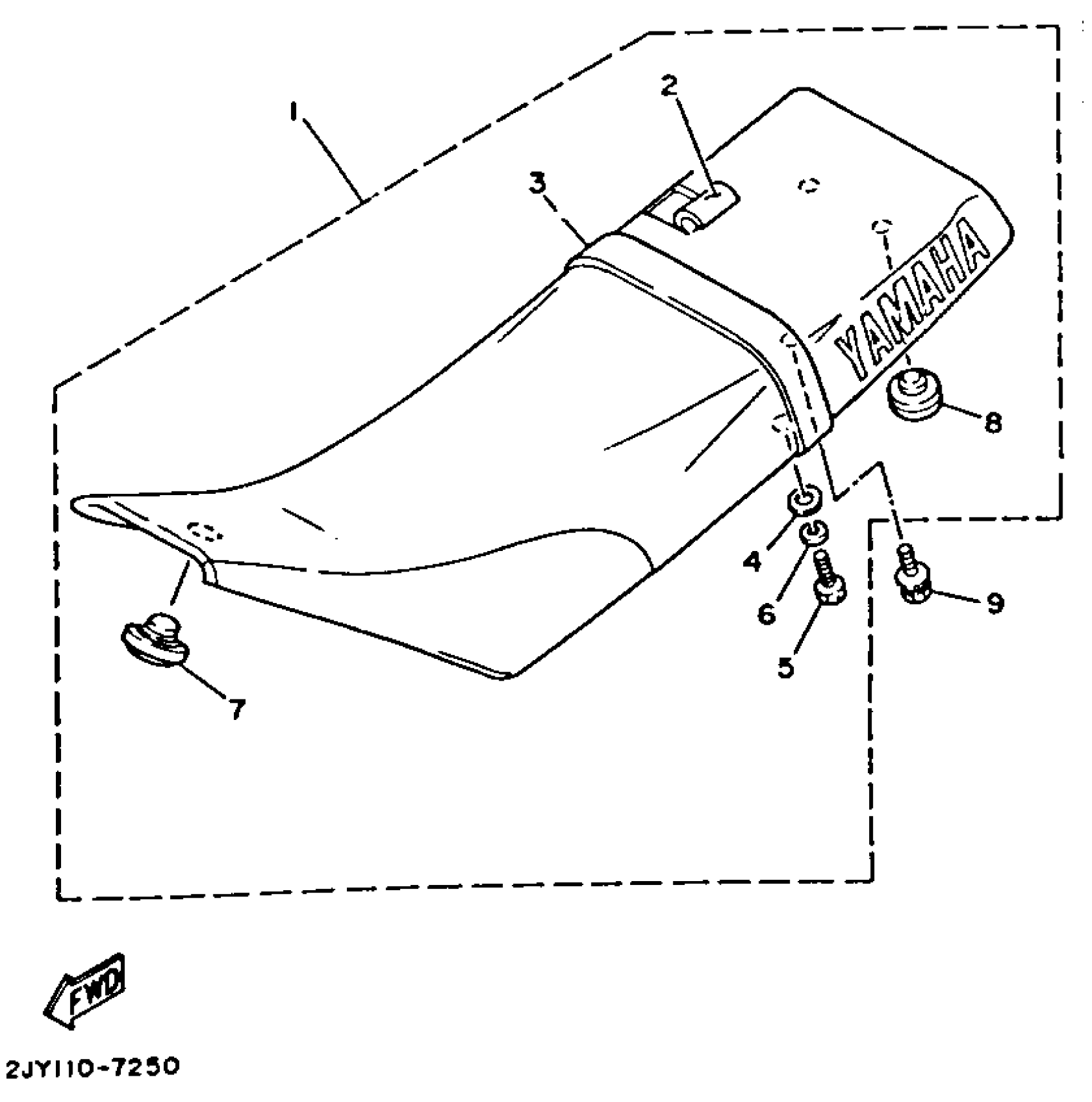

Yamaha TW200TC (TRAILWAY) 1987 SEAT Diagram

#

Description
Price

1

SEMI-DBL SEAT ASSEMBLY

2JX-24770-00-00

Unavailable

1

SEMI-DBL SEAT ASSEMBLYASS''Y

2JX-24770-10-00

Unavailable

2

. COVER, DOUBLE SEAT

2JX-24731-00-00

Unavailable

2

. COVER, DOUBLE SEAT

2JX-24731-10-00

Unavailable

3

. BAND, SEAT (2JX-24734-10)

2YY-24734-00-00

Unavailable

3

. BAND, SEAT

3BN-24734-00-00

Unavailable

4

WASHER, PLATE

90201-06380-00

$1.49

5

SCREW PAN HEAD

98580-06020-00

$6.08

6

WASHER, SPRING

92995-06100-00

$2.83

7

. DAMPER

3T5-24723-00-00

Unavailable

8

PAD, SEAT

1L9-24741-00-00

$8.49

9

BOLT, WITH WASHER (10V)

90119-06063-00

$5.98
