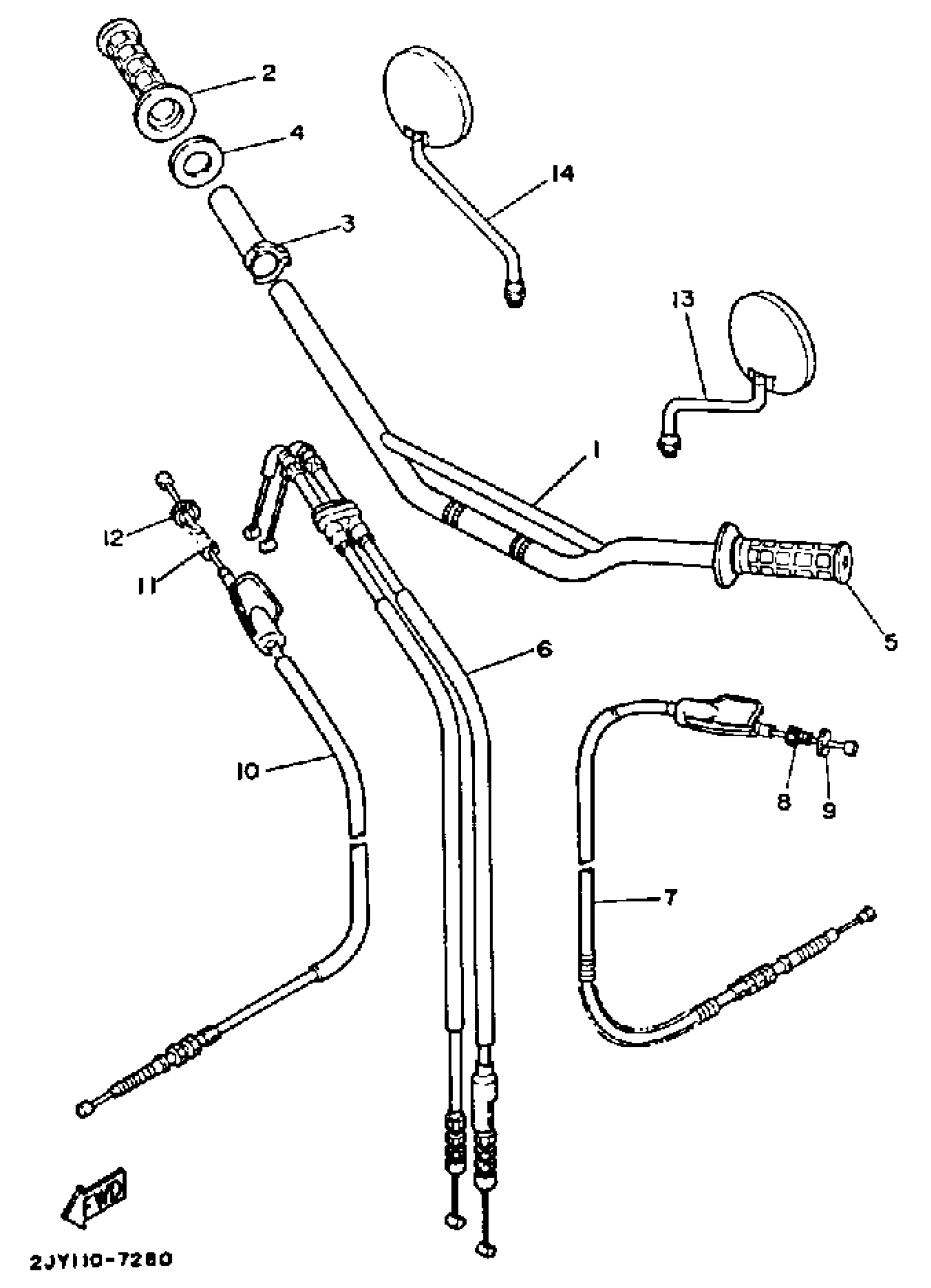

Yamaha TW200TC (TRAILWAY) 1987 HANDLEBAR CABLE Diagram

#

Description

Price

1

HANDLEBAR

5LB-26111-00-00

$57.35

2

GRIP RH

33G-26242-01-00

Unavailable

3

TUBE, THROTTLE GUIDE

1RF-26243-00-00

$22.35

4

RING, LEAF

3Y1-26249-00-00

$8.13

5

GRIP

33G-26241-01-00

Unavailable

6

THROTTLE CABLE ASSY

2JX-26302-01-00

$82.79

7

CABLE, CLUTCH

1RL-26335-00-00

Unavailable

8

BOLT

90123-08002-00

$9.16

9

NUT

90179-08030-00

$3.92

10

CABLE, BRAKE

2JX-26341-10-00

$50.28

11

BOLT

90123-08002-00

$9.16

12

NUT

90179-08030-00

$3.92

13

MIRROR ASSY., 2

5Y1-26290-11-00

$58.73

14

REAR VIEW MIRROR ASSY(RIGHT)

3Y1-26290-00-00

$44.63
