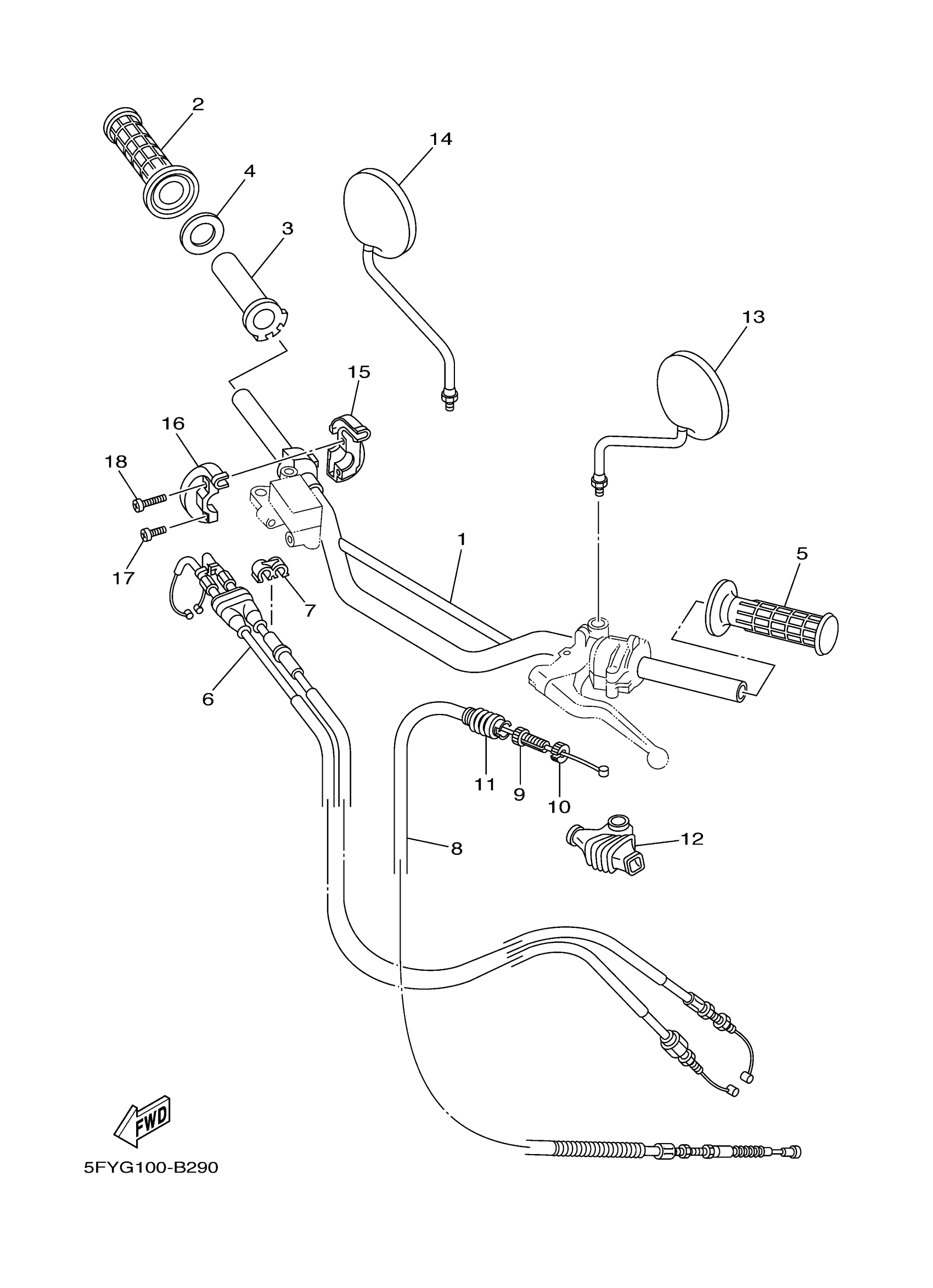

Yamaha TW200T2C (TW200) DC69 2026 STEERING HANDLE & CABLE Diagram

#

Description
Price

1

HANDLEBAR

5LB-26111-00-00

$56.16

2

GRIP (R.H)

1LX-26242-01-00

$28.57

3

TUBE, THROTTLE GUIDE

5BE-26243-00-00

$14.07

4

RING, LEAF

3Y1-26249-00-00

$7.96

5

GRIP (L.H)

1LX-26241-01-00

$27.16

6

THROTTLE CABLE ASSY

5LB-26302-03-00

$43.85

7

CLAMP(4KB)

90464-06214-00

$2.78

8

CABLE, CLUTCH

5EK-26335-00-00

$38.47

9

BOLT

90123-08002-00

$8.57

10

NUT

90179-08030-00

$3.63

11

BOOT, WIRE

1E6-26342-00-00

$25.03

12

COVER, LEVER

1E6-26372-00-00

$18.59

13

MIRROR ASSY., 2

5Y1-26290-11-00

Unavailable

14

REAR VIEW MIRROR ASSY(RIGHT)

3Y1-26290-00-00

$43.71

15

CAP, GRIP UPPER

3LN-26281-01-00

Unavailable

16

CAP, GRIP LOWER

3LN-26282-01-00

Unavailable

17

SCREW, PAN HEAD

98517-05020-00

Unavailable

18

SCREW, PAN HEAD(4MY)

98507-05025-00

Unavailable
