2026 Yamaha TW200 (TW200T2C) Shift Cam & Fork Diagram

← All diagrams

Find the part on the Shift Cam & Fork diagram for your 2026 Yamaha TW200 (TW200T2C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

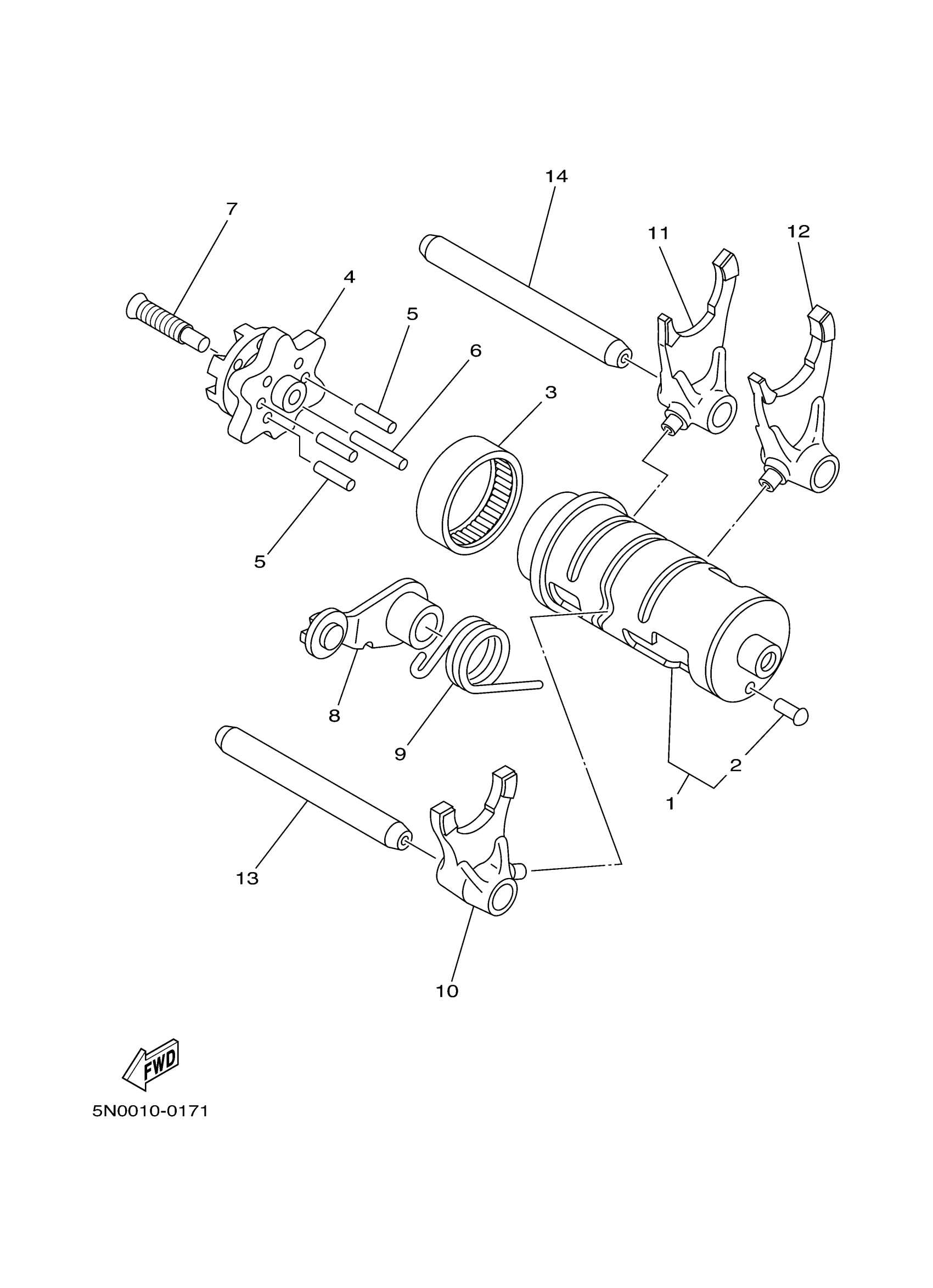

2026 Yamaha TW200 (TW200T2C) Shift Cam & Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSY

5N0-18540-00-00

—
Out of stock

2

POINT,NEUTRAL (150610)

136-18542-00-00

1
Out of stock

3

BEARING ,CYL-CAL R0LLER 20G NT

93315-23607-00

—
Out of stock

4

SEGMENT

1RH-18185-00-00

1
Out of stock

5

PIN, DOWEL (409)

93604-16092-00

1
Out of stock

6

PIN, DOWEL (4H7)

93604-20156-00

1
Out of stock

7

SCREW, COUNTERSUNK (5H0)

90151-06013-00

1
Out of stock

8

STOPPER LEVER ASSY

1RH-18140-00-00

1
Out of stock

9

SPRING, TORSION (15A)

90508-26539-00

1
Out of stock

10

FORK, SHIFT 1

4JG-18511-00-00

—
Out of stock

11

FORK, SHIFT 2

4JG-18512-01-00

—
Out of stock

12

FORK, SHIFT 3

4JG-18513-00-00

—
Out of stock

13

BAR, SHIFT FORK GUIDE 1

3GX-18531-00-00

—
Out of stock

14

BAR, SHIFT FORK GUIDE 2

3GX-18535-00-00

—
Out of stock
