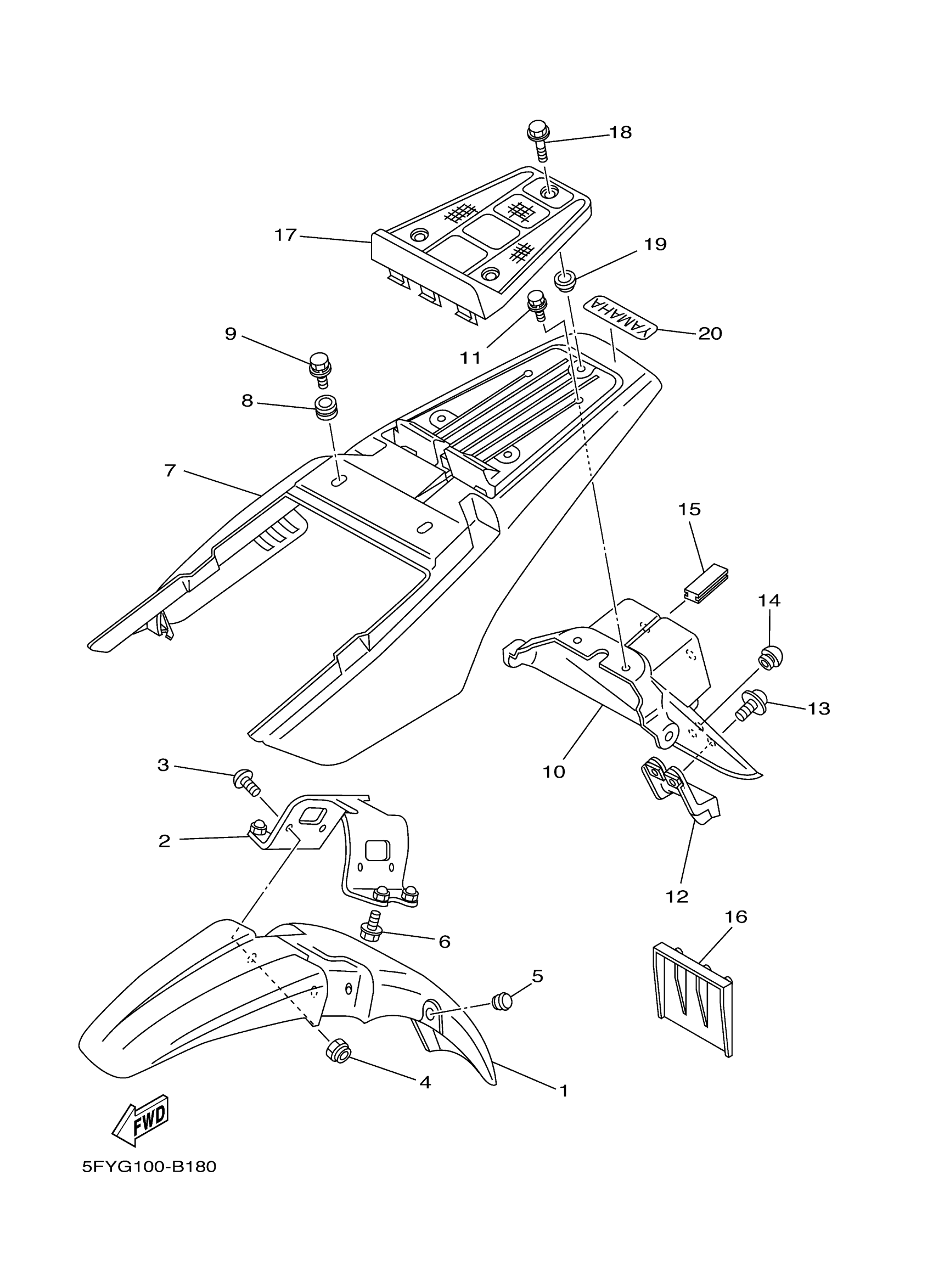

Yamaha TW200SC (TW200 CA) 5FYM 2004 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

3AW-21511-20-00

$75.67

2

BRACKET, FENDER

2JX-21512-00-00

$54.82

3

SCREW, C.R. BINDING (2T4)

90154-05004-00

$3.02

4

NUT, S/L FLANGE

95607-05200-00

$6.39

5

PLUG(2GU)

90338-12192-00

$5.76

6

BOLT, FLANGE

95817-06020-00

$2.52

7

FENDER, REAR

3AW-21611-20-00

$135.27

8

DAMPER, SIDE COVER (437)

90480-12053-00

$5.39

9

BOLT, WITH WASHER (10V)

90119-06063-00

$5.86

10

BRACKET, LICENSE

2JX-21685-01-00

$57.05

11

BOLT, WITH WASHER

90119-06152-00

$2.56

12

BRACKET, REFLECTOR

2JX-21641-00-00

Unavailable

13

SCREW, WITH WASHER(52W)

90159-05121-00

$2.24

14

PLUG

90338-07018-00

$5.42

15

SEAL

2JX-21669-00-00

$7.59

16

FLAP

5VC-21691-00-00

Unavailable

17

COVER, REAR FENDER

2JX-21651-00-00

Unavailable

18

BOLT, FLANGE

95024-06014-00

Unavailable

19

COLLAR (8G8)

90387-06681-00

Unavailable

20

EMBLEM, YAMAHA

99247-00080-00

Unavailable
