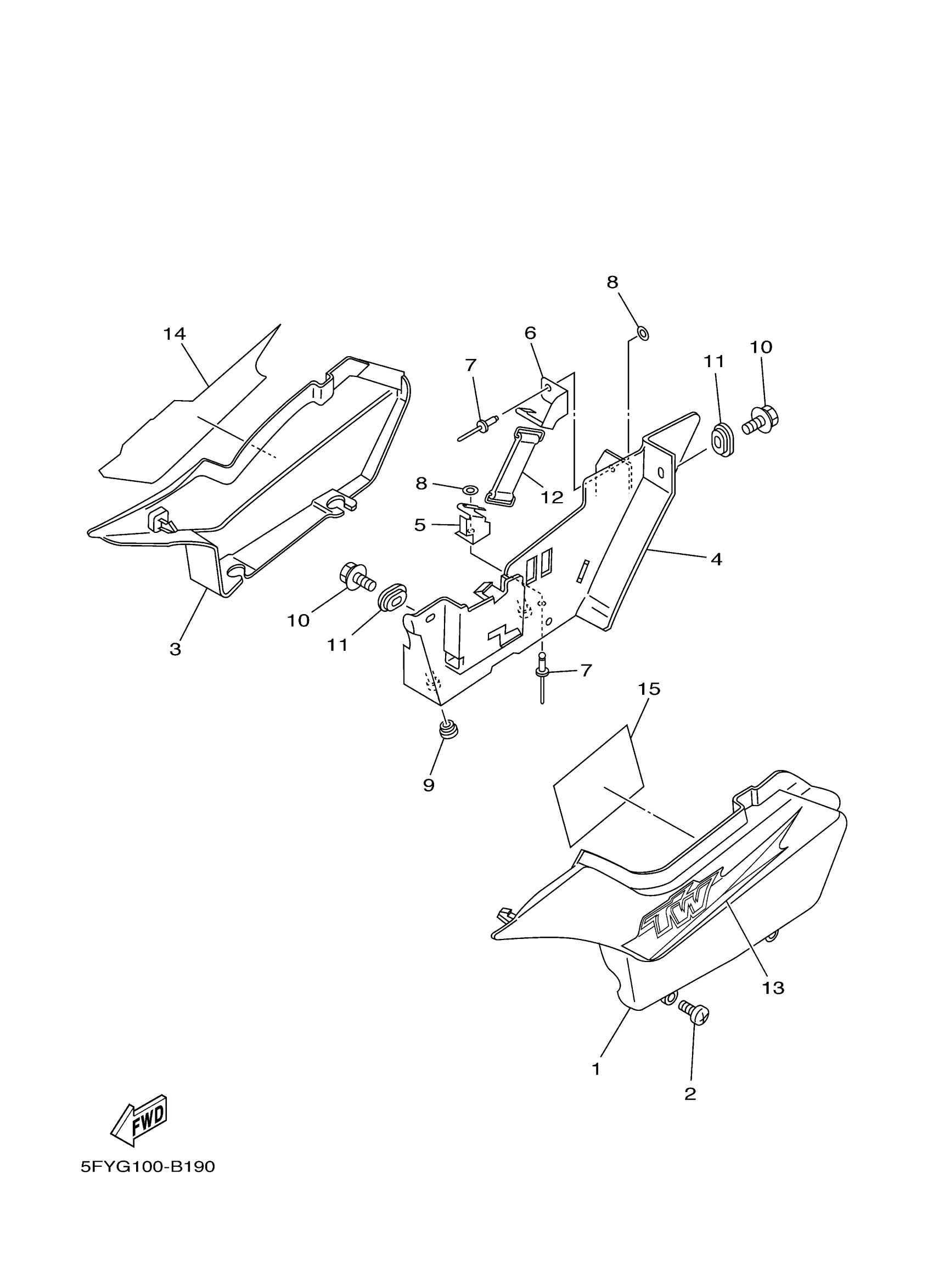

Yamaha TW200RC (TW200 CA) 5FYH 2003 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

3AW-21711-20-0X

$105.18

2

SCREW, BINDING (10V)

90154-05013-00

$4.64

3

COVER, SIDE 2

3AW-21721-20-0X

$94.84

4

BOX

5EK-2177A-00-00

$31.92

5

BRACKET 1

5EK-2175T-00-00

$14.11

6

BRACKET 2

5EK-2175U-00-00

Unavailable

7

RIVET,BLIND

90267-40080-00

Unavailable

8

WASHER, PLATE(26H)

90201-044H9-00

$6.22

9

GROMMET

90480-13014-00

$6.39

10

BOLT, WITH WASHER

90119-06152-00

$2.56

11

GROMMET(41Y)

90480-01401-00

$5.29

12

BAND, BATTERY

116-82131-00-00

$24.68

13

GRAPHIC 1

5FY-2173E-30-00

Unavailable

14

GRAPHIC 2

5FY-2173F-30-00

Unavailable

15

PLATE, EPA 2 (CALIFORNIA)

5FY-2179N-40-00

Unavailable

15

PLATE, EPA 1 (NON CALIFORNIA)

5FY-2179V-40-00

Unavailable
