2003 Yamaha TW200 CA (TW200RC) Headlight Diagram

← All diagrams

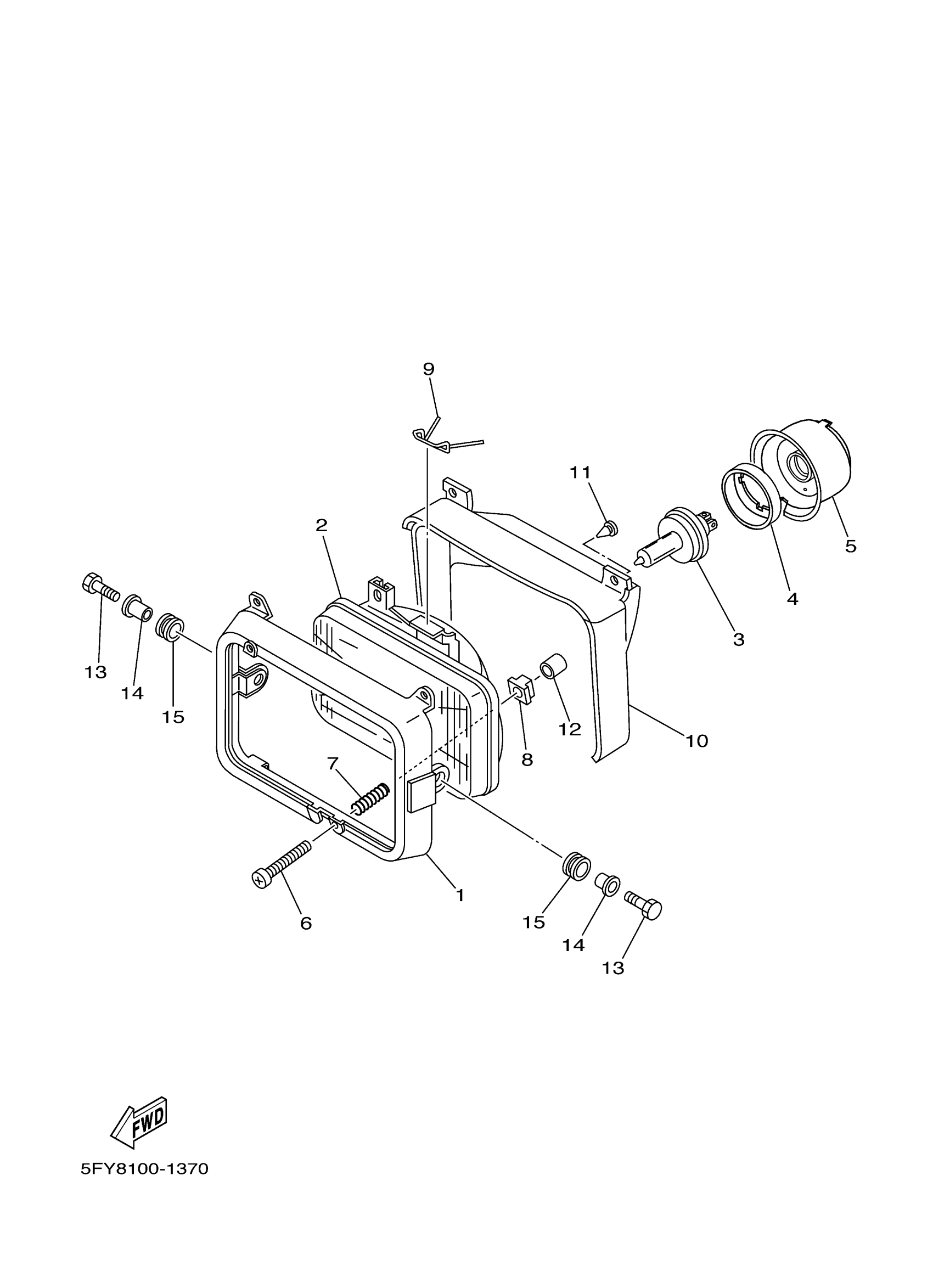

Find the part on the Headlight diagram for your 2003 Yamaha TW200 CA (TW200RC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Yamaha TW200 CA (TW200RC) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RIM, HEADLIGHT

47J-84115-00-00

1
Out of stock

2

LENS ASSY

5FY-84320-00-00

—
Out of stock

3

BULB, HEADLIGHT

8V0-84314-10-00

1
Out of stock

4

SETTING PLATE, BULB

2F9-84375-00-00

—
Out of stock

5

COVER, SOCKET

2F9-84397-01-00

1
Out of stock

6

SCREW, RIM ADJUSTER

43F-84131-00-00

1
Out of stock

7

SPRING, ADJUST

341-84332-60-00

1
Out of stock

8

NUT, ADJUST

198-84334-60-00

1
Out of stock

9

SET SPRING

55X-84124-00-00

1
Out of stock

10

COVER, SOCKET

30X-84196-00-00

1
Out of stock

11

CLIP COVER FITTING

10V-84198-00-00

—
Out of stock

12

PLUG

2RR-84178-00-00

1
Out of stock

13

BOLT, HEXAGON

97017-06025-00

1
Out of stock

14

COLLAR

90387-06158-00

1
Out of stock

15

GROMMET 839774310000

90480-14023-00

1
Out of stock
