2003 Yamaha TW200 CA (TW200RC) Front Fork Diagram

← All diagrams

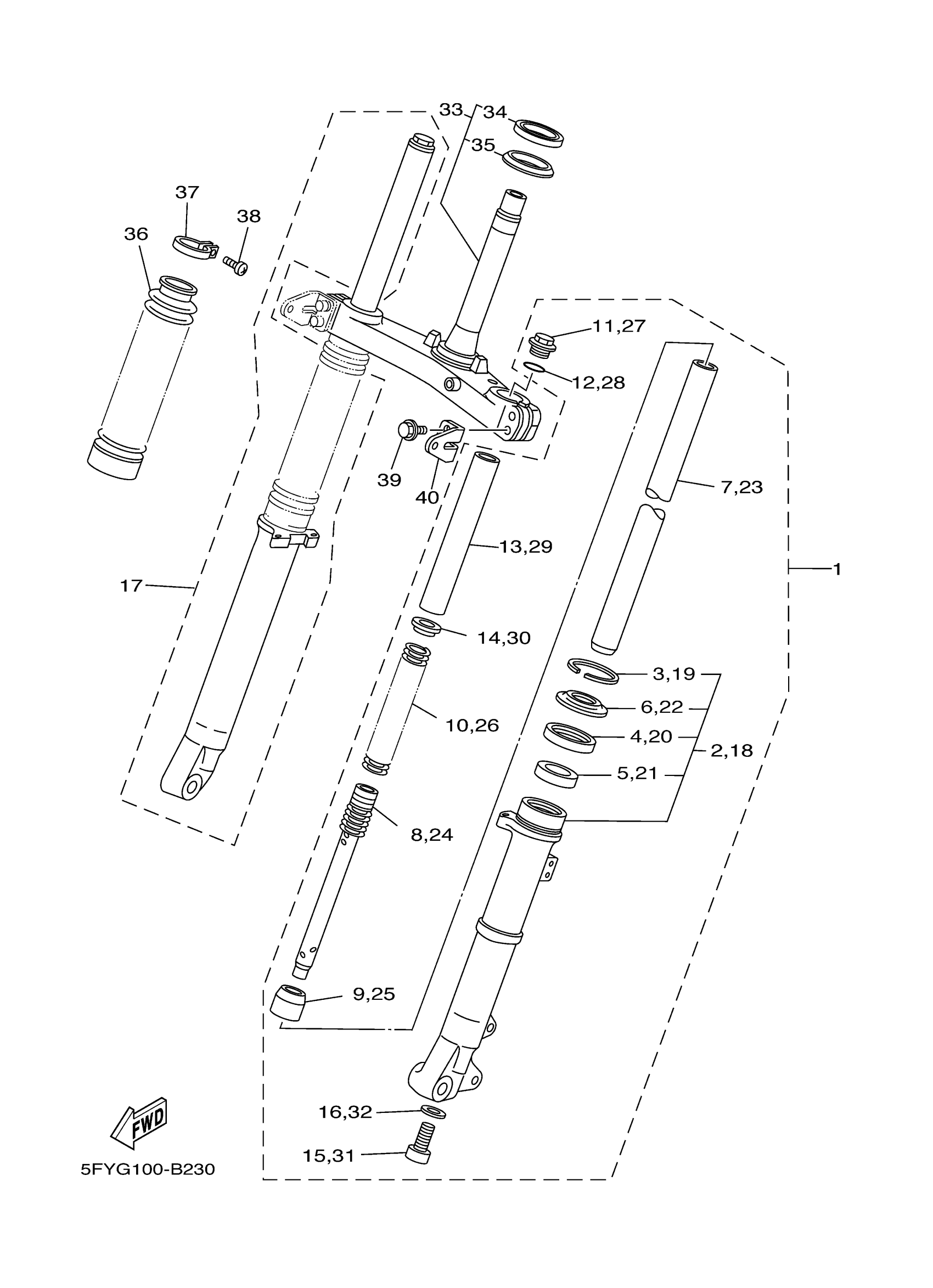

Find the part on the Front Fork diagram for your 2003 Yamaha TW200 CA (TW200RC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Yamaha TW200 CA (TW200RC) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSY (L.H)

5FY-23102-00-00

1
Out of stock

2

TUBE, OUTER (LEFT)

5RS-23126-10-00

—
Out of stock

3

RING, SNAP

22W-23153-L0-00

1
Out of stock

4

OIL SEAL

22W-23145-L0-00

1
Out of stock

5

METAL, SLIDE 1

51Y-23125-00-00

1
Out of stock

6

SEAL, DUST

54G-23144-00-00

1
Out of stock

7

INNER TUBE COMP.1

2JX-23110-00-00

1
Out of stock

8

. CYLINDER COMP, FRONT FORK

54G-23170-00-00

1
Out of stock

9

SPINDLE, TAPER

3R6-23173-L0-00

1
Out of stock

10

SPRING, FRONT FORK

2JX-23141-00-00

1
Out of stock

11

BOLT, CAP

2JN-23111-00-00

1
Out of stock

12

O-RING

3J2-23114-00-00

1
Out of stock

13

SPACER

22U-23118-01-00

—
Out of stock

14

WASHER, SPRING UPPER

3DM-23149-10-00

1
Out of stock

15

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

1
Out of stock

16

GASKET

509-23158-L0-00

—
Out of stock

17

FRONT FORK ASSY (R.H)

5FY-23103-00-00

1
Out of stock

18

TUBE, OUTER (RIGHT)

5EK-23136-00-00

—
Out of stock

19

RING, SNAP

22W-23153-L0-00

1
Out of stock

20

OIL SEAL

22W-23145-L0-00

1
Out of stock

21

METAL, SLIDE 1

51Y-23125-00-00

1
Out of stock

22

SEAL, DUST

54G-23144-00-00

1
Out of stock

23

INNER TUBE COMP.1

2JX-23110-00-00

1
Out of stock

24

. CYLINDER COMP, FRONT FORK

54G-23170-00-00

1
Out of stock

25

SPINDLE, TAPER

3R6-23173-L0-00

1
Out of stock

26

SPRING, FRONT FORK

2JX-23141-00-00

1
Out of stock

27

BOLT, CAP

2JN-23111-00-00

1
Out of stock

28

O-RING

3J2-23114-00-00

1
Out of stock

29

SPACER

22U-23118-01-00

—
Out of stock

30

WASHER, SPRING UPPER

3DM-23149-10-00

1
Out of stock

31

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

1
Out of stock

32

GASKET

509-23158-L0-00

—
Out of stock

33

UNDER BRACKET COMP.

5LB-23340-02-00

—
Out of stock

34

RACE, BALL 1

B6E-23411-00-00

—
Out of stock

35

SEAL, DUST

164-23462-00-00

—
Out of stock

36

BOOT

4CS-23191-20-00

—
Out of stock

37

BAND, BOOT

2K5-23192-00-00

—
Out of stock

38

SCREW, BOOT BAND

1W4-23194-L0-00

—
Out of stock

39

BOLT

97013-08035-00

—
Out of stock

40

BRACKET, REFLECTOR 1

49R-85112-00-00

—
Out of stock
