2002 Yamaha TW200 CA (TW200PC) Oil Pump Diagram

← All diagrams

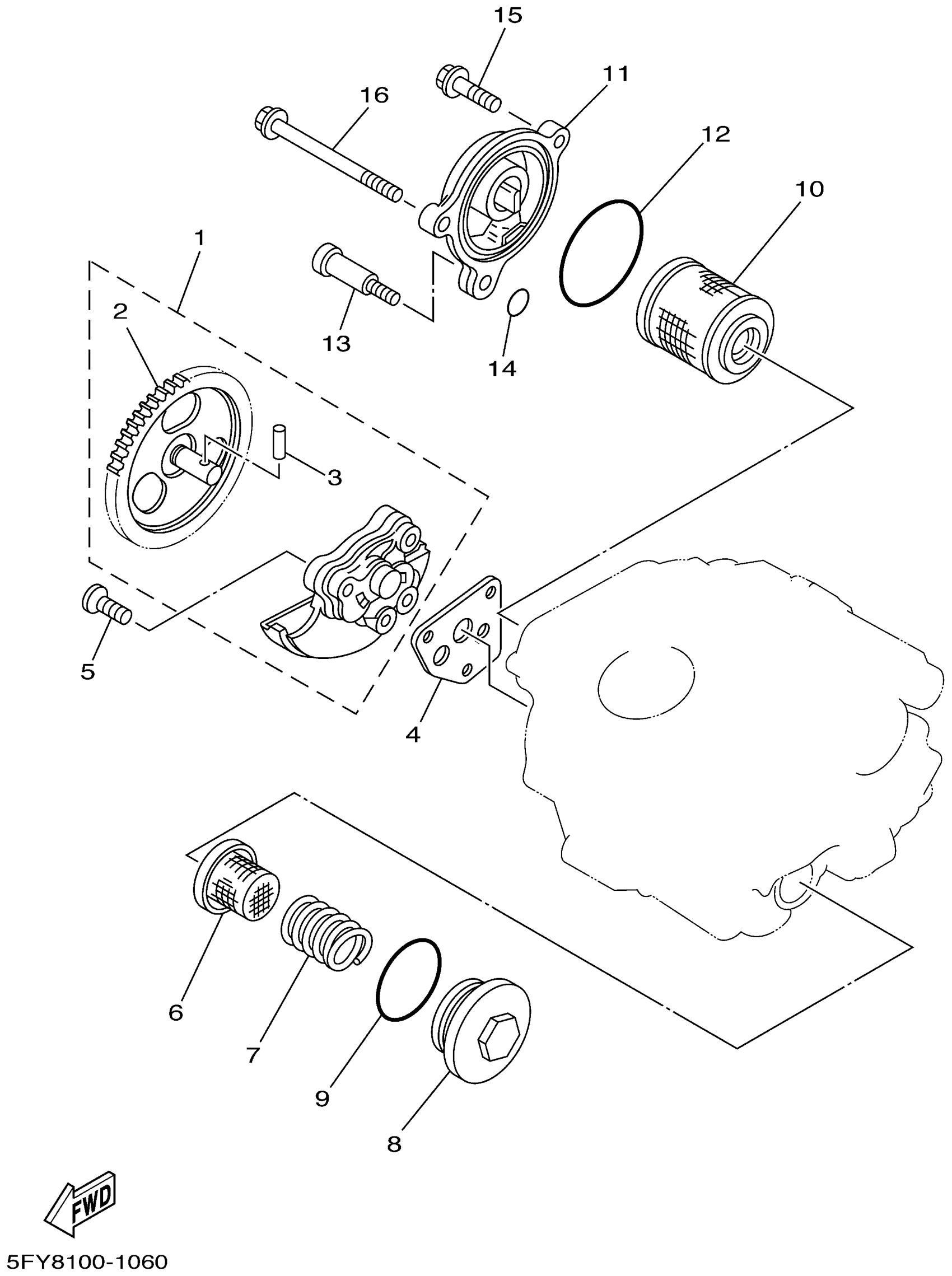

Find the part on the Oil Pump diagram for your 2002 Yamaha TW200 CA (TW200PC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Yamaha TW200 CA (TW200PC) Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSY

5H0-13300-02-00

1
Out of stock

2

GEAR, PUMP DRIVEN 2

5H0-13326-01-00

1
Out of stock

3

PIN,DOWEL (137)

93603-12030-00

1
Out of stock

4

GASKET, PUMP COVER

3GD-13329-00-00

1
Out of stock

5

SCREW, FLAT

98707-06030-00

1
Out of stock

6

STRAINER, OIL

51Y-13411-00-00

1
Out of stock

7

SPRING, COMPRESSION (3Y1)

90501-18576-00

1
Out of stock

8

PLUG, DRAIN

5H0-15351-00-00

1
Out of stock

9

O-RING

93210-347A1-00

1
Out of stock

10

OIL CLEANER ASSY

5H0-13440-09-00

1
Out of stock

11

COVER, OIL ELEMENT

3AW-13447-01-00

1
Out of stock

12

O-RING (341)

93210-54175-00

1
Out of stock

13

BOLT (583 OIL DRAIN)

90109-06419-00

1
Out of stock

14

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

1
Out of stock

15

BOLT, SMALL FLANGE

95027-06025-00

1
Out of stock

16

BOLT, WASHER BASED

90105-065A1-00

—
Out of stock
← Exhaust Valve →

More Engine diagrams
