2002 Yamaha TW200 CA (TW200PC) Handle Switch Lever Diagram

← All diagrams

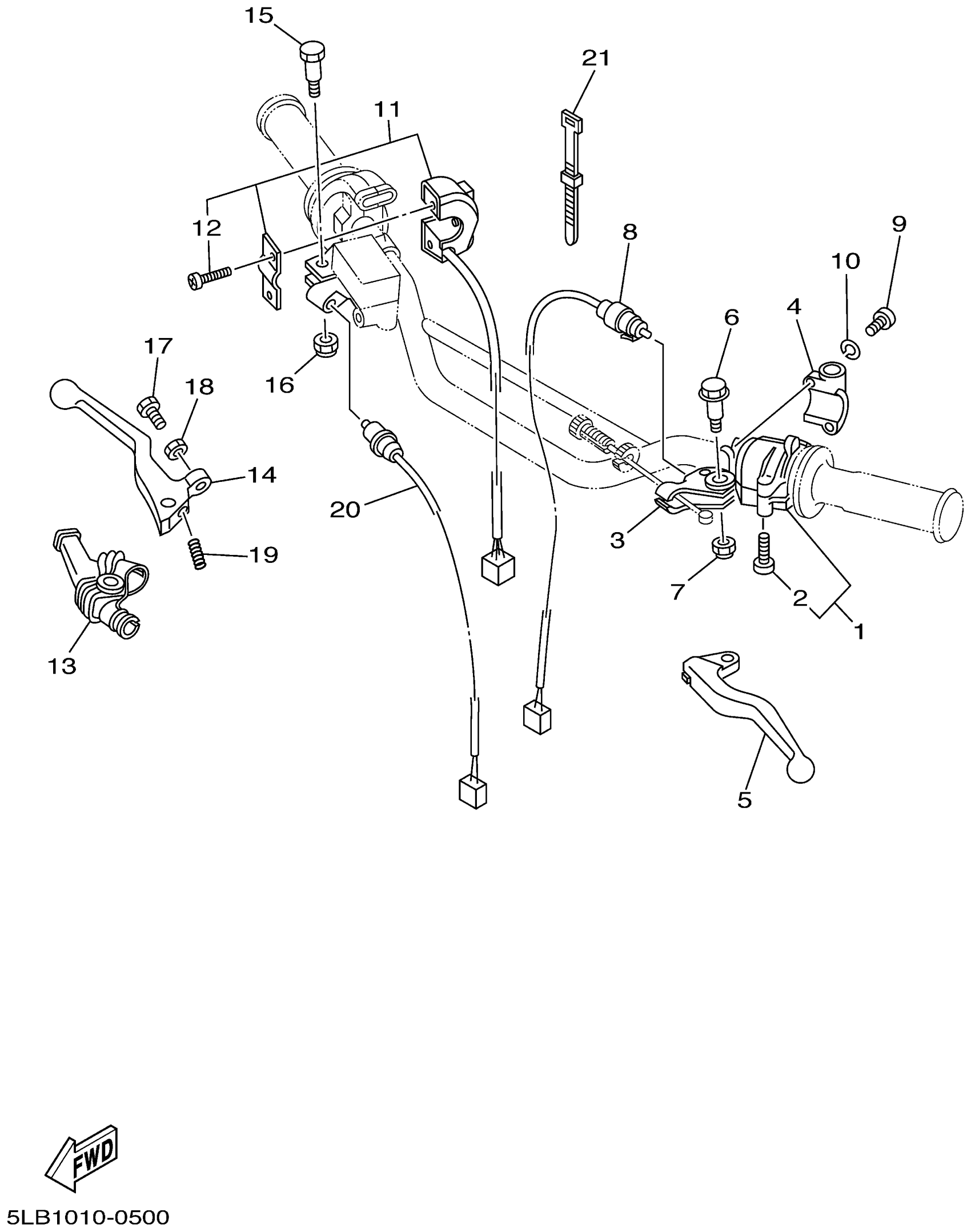

Find the part on the Handle Switch Lever diagram for your 2002 Yamaha TW200 CA (TW200PC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Yamaha TW200 CA (TW200PC) Handle Switch Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWITCH, HANDLE 3

4CS-83973-00-00

1
Out of stock

2

SCREW, PAN HEAD

98517-05030-00

1
Out of stock

3

HOLDER, LEVER 1

1LN-82911-00-00

1
Out of stock

4

HOLDER, LEVER LOWER 1

33G-82913-01-00

1
Out of stock

5

LEVER 1

4GY-83912-00-00

1
Out of stock

6

BOLT (2YK1)

90109-06799-00

1
Out of stock

7

NUT, SELF-LOCKING

95617-06100-00

1
Out of stock

8

SWITCH

4GY-82917-01-00

1
Out of stock

9

SCREW, PAN HEAD

98517-05020-00

1
Out of stock

10

WASHER(3SX)

92907-05100-00

1
Out of stock

11

SWITCH, HANDLE 2

5LB-83975-01-00

—
Out of stock

12

SCREW, PAN HEAD(4MY)

98507-05018-00

1
Out of stock

13

COVER, HANDLE LEVER (R.H)

1T5-26372-00-00

1
Out of stock

14

LEVER 2

55Y-83922-02-00

1
Out of stock

15

BOLT (4L0)

90109-06577-00

1
Out of stock

16

NUT, SELF-LOCKING

95617-06100-00

1
Out of stock

17

SCREW (2L0)

90149-06131-00

—
Out of stock

18

NUT HEXAGON 306839270000

90170-06010-00

—
Out of stock

19

SPRING COMPRESSION306839240000

90501-10312-00

—
Out of stock

20

FRONT STOP SWITCH ASSY

2UJ-83980-00-00

—
Out of stock

21

BAND, SWITCH CORD

437-83936-01-00

—
Out of stock
