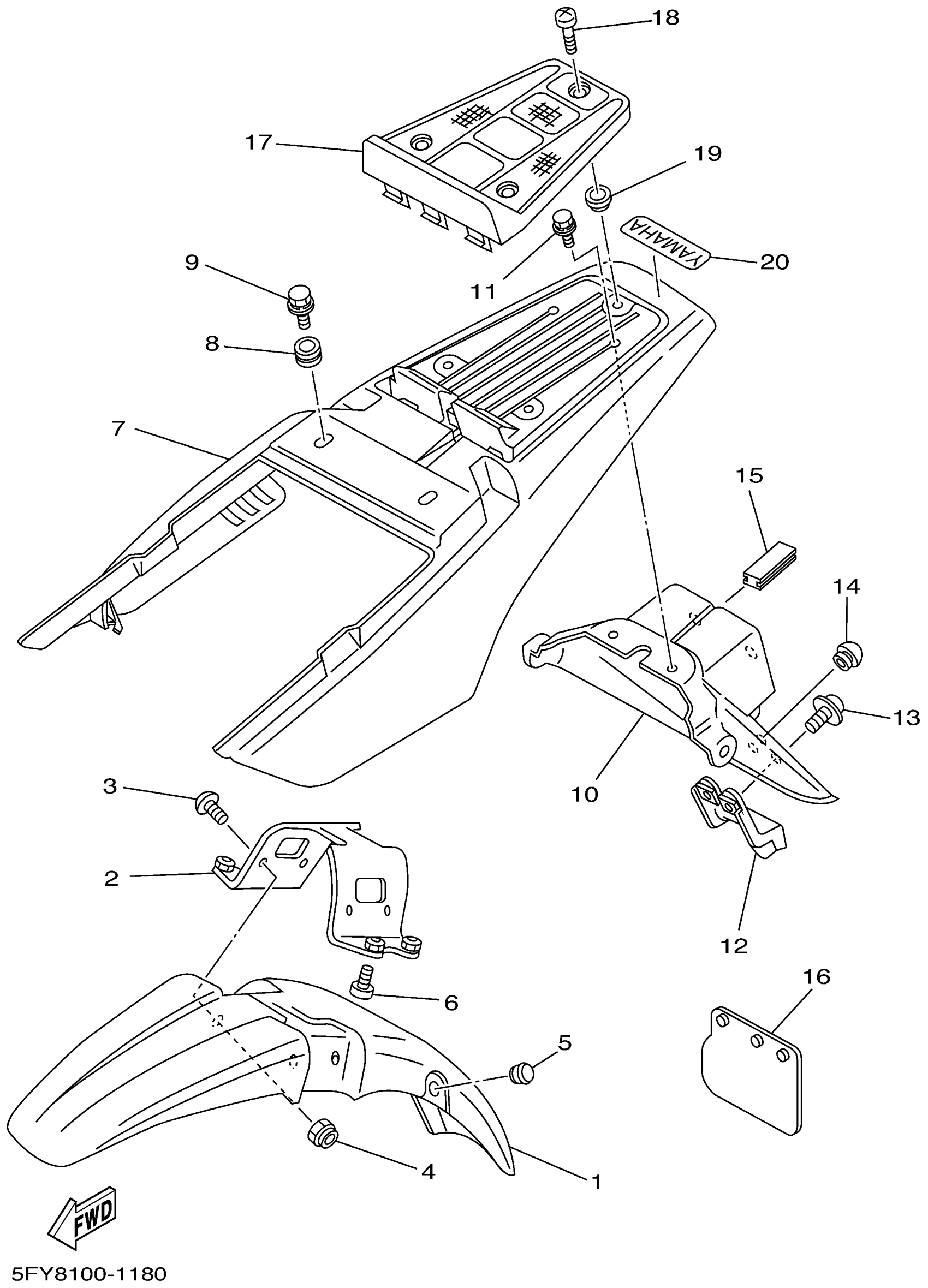

Find the part on the Fender diagram for your 2002 Yamaha TW200 CA (TW200PC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Yamaha TW200 CA (TW200PC) Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT

3AW-21511-20-00

1
Out of stock

2

BRACKET, FENDER

2JX-21512-00-00

1

$58.60

In stock

3

SCREW, C.R. BINDING (2T4)

90154-05004-00

1

$3.25

In stock

4

NUT, S/L FLANGE

95607-05200-00

1

$6.86

In stock

5

PLUG(2GU)

90338-12192-00

1

$6.18

In stock

6

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

7

FENDER, REAR

3AW-21611-20-00

1
Out of stock

8

DAMPER, SIDE COVER (437)

90480-12053-00

1

$5.78

In stock

9

BOLT, WITH WASHER (10V)

90119-06063-00

1

$6.29

In stock

10

BRACKET, LICENSE

2JX-21685-01-00

1

$57.92

In stock

11

BOLT, WITH WASHER

90119-06152-00

1

$2.74

In stock

12

BRACKET, REFLECTOR

2JX-21641-00-00

—

$33.38

In stock

13

SCREW, WITH WASHER(52W)

90159-05121-00

1

$2.34

In stock

14

PLUG

90338-07018-00

1

$5.82

In stock

15

SEAL

2JX-21669-00-00

1

$7.71

In stock

16

FLAP

34X-21691-00-00

—
Out of stock

17

COVER, REAR FENDER

2JX-21651-00-00

1
Out of stock

18

BOLT, FLANGE(4DU)

95027-06014-00

—

$0.74

In stock

19

COLLAR (8G8)

90387-06681-00

—

$6.62

In stock

20

EMBLEM, YAMAHA

99247-00080-00

—

$11.86

In stock
