2002 Yamaha TW200 CA (TW200PC) Clutch Diagram

← All diagrams

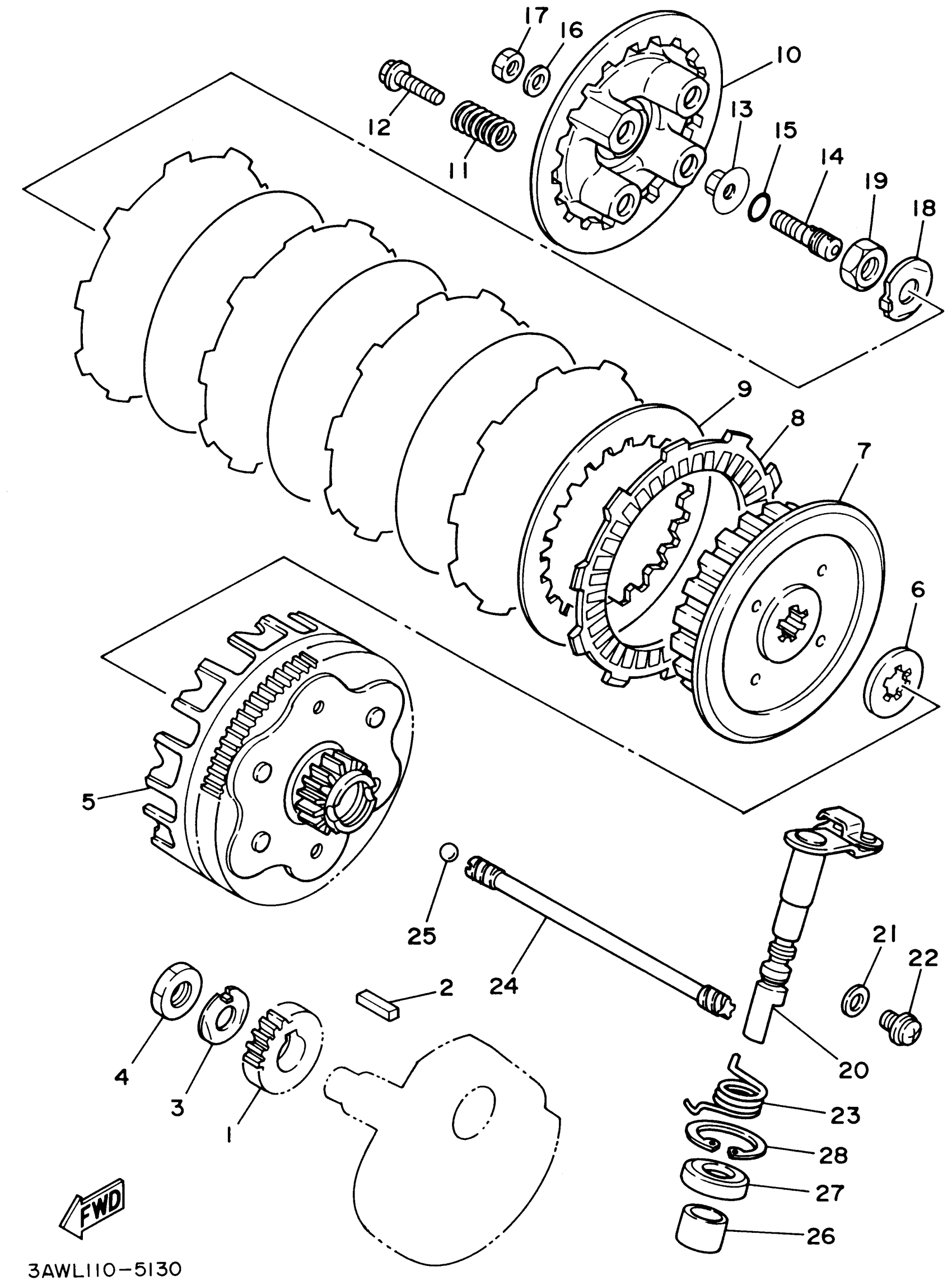

Find the part on the Clutch diagram for your 2002 Yamaha TW200 CA (TW200PC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Yamaha TW200 CA (TW200PC) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, PRIMARY DRIVE

5H0-16111-00-00

—

$38.65

In stock

2

KEY, STRAIGHT (5H0)

90282-05043-00

1

$8.26

In stock

3

WASHER, LOCK (15Y)

90215-14205-00

1

$4.70

In stock

4

NUT (5H0)

90170-14284-00

1

$7.92

In stock

5

PRIMARY DRIVEN GEAR COMP.

15A-16150-00-00

—

$476.17

In stock

6

PLATE, THRUST 1

5H0-16154-00-00

—
Out of stock

7

BOSS, CLUTCH

2JX-16371-00-00

1

$96.97

In stock

8

PLATE, FRICTION

537-16321-00-00

1

$15.04

In stock

9

PLATE, CLUTCH 1

336-16324-10-00

1

$17.51

In stock

10

PLATE, PRESSURE 1

5H0-16351-00-00

1

$37.03

In stock

11

SPRING, COMPRESSION

90501-23700-00

1

$5.68

In stock

12

SCREW, WITH WASHER (537)

90159-05011-00

1

$2.45

In stock

13

PLATE, PUSH

1W1-16358-01-00

1

$20.06

In stock

14

ROD, PUSH 1

2JX-16356-00-00

—

$33.31

In stock

15

O-RING (2H7)

93210-48364-00

1

$6.17

In stock

16

WASHER(6TA)

92907-06200-00

—

$6.18

In stock

17

NUT(6TA)

95317-06600-00

—

$2.69

In stock

18

WASHER, LOCK (25G)

90215-14186-00

—

$7.83

In stock

19

NUT (5H0)

90170-14284-00

1

$7.92

In stock

20

PUSH LEVER ASSY

15A-16380-00-00

—

$54.65

In stock

21

GASKET

90430-08119-00

—

$4.70

In stock

22

SCREW 425163430000

90149-08067-00

—

$4.54

In stock

23

SPRING, TORSION (15A)

90508-18537-00

—

$6.08

In stock

24

ROD, PUSH 2

5H0-16357-00-00

—

$31.57

In stock

25

BALL

93505-16006-00

—

$2.22

In stock

26

BUSH (5H0)

90386-14103-00

—

$9.29

In stock

27

OIL SEAL (3Y1)

93102-14209-00

—

$9.77

In stock

28

CIRCLIP (3Y1)

93420-28055-00

—

$6.89

In stock
