2002 Yamaha TW200 CA (TW200PC) Carburetor Diagram

← All diagrams

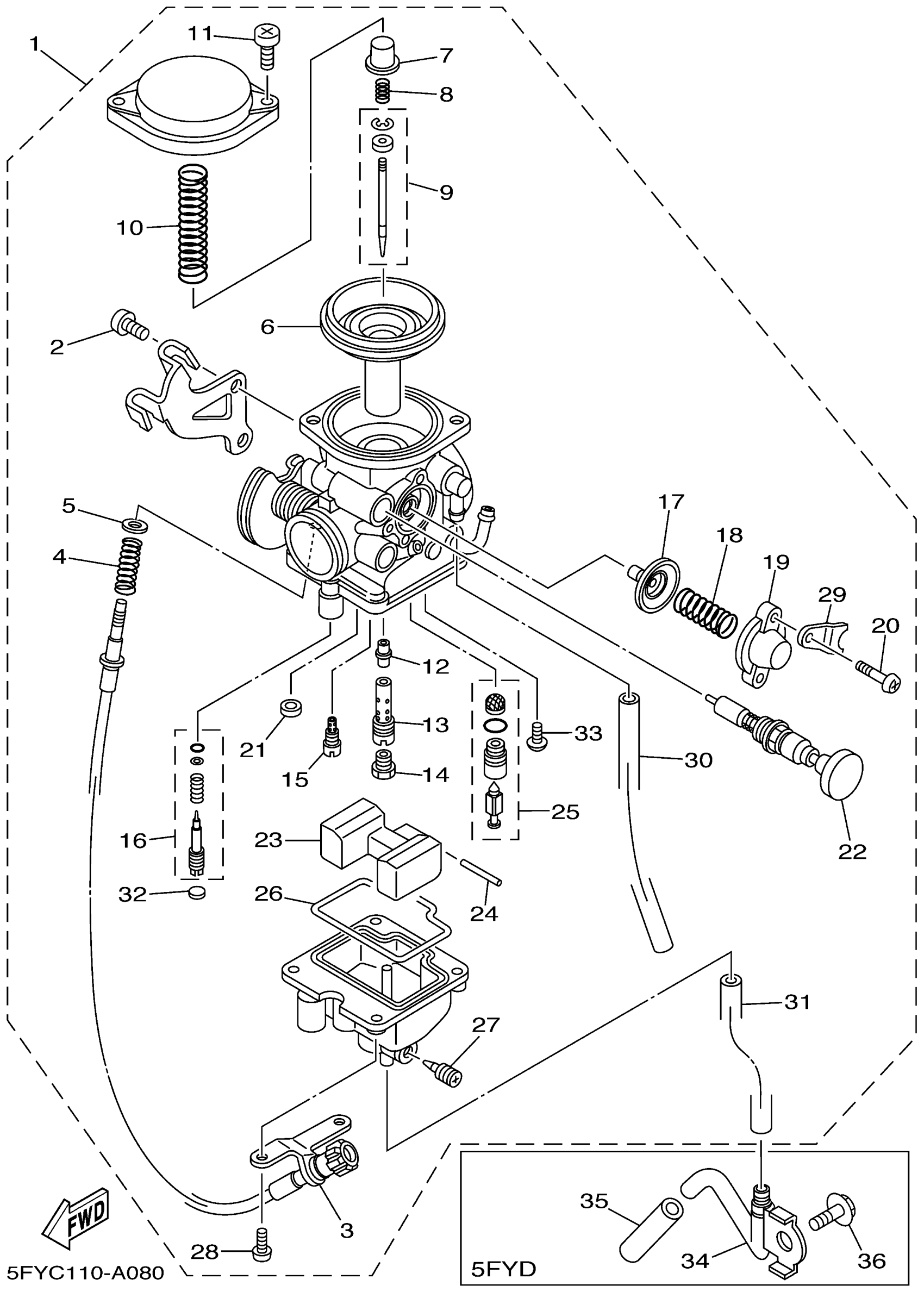

Find the part on the Carburetor diagram for your 2002 Yamaha TW200 CA (TW200PC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Yamaha TW200 CA (TW200PC) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSY 1

5FY-14301-20-00

1

$472.29

In stock

1

CARBURETOR ASSY 1

5FY-14301-10-00

1

$489.58

In stock

2

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

3

SCREW, THROTTLE

5LB-14321-00-00

1
Out of stock

4

SPRING, THROTTLE STOP

2JX-14333-00-00

1

$6.43

In stock

5

WASHER, PLAIN

5LB-14357-00-00

1

$3.58

In stock

6

SUCTION PISTON ASSY

5LB-1434A-00-00

1

$84.72

In stock

7

SEAT, SPRING

5LB-14936-00-00

—

$18.95

In stock

8

SPRING

5LB-14275-00-00

1

$4.12

In stock

9

NEEDLE

5FY-14336-00-00

1

$25.52

In stock

10

SPRING

5LB-14286-00-00

1

$8.95

In stock

11

SCREW

5LB-14216-00-00

1

$4.77

In stock

12

NOZZLE, MAIN

5LB-14341-00-00

1

$37.97

In stock

13

BLEED, MAIN NOZZLE

5LB-14341-10-00

—

$42.20

In stock

14

JET, MAIN (# 125)

288-14343-63-00

1

$8.42

In stock

14

JET, MAIN (#128) (85L)

288-14355-64-00

—
Out of stock

15

JET, PILOT (#31)

5LB-14342-65-00

—

$19.68

In stock

16

PILOT SCREW SET

5LB-14105-00-00

—

$15.83

In stock

17

DIAPHRAGM ASSY 1

5LB-14368-00-00

—

$47.22

In stock

18

SPRING

5LB-14589-00-00

—

$3.91

In stock

19

COVER 1

5LB-14293-00-00

—

$14.89

In stock

20

SCREW, LEVER FITTING

214-24535-00-00

—

$6.35

In stock

21

PLUG

50M-14355-01-00

—
Out of stock

22

PLUNGER, STARTER

5FY-14371-00-00

—

$80.68

In stock

23

FLOAT

5LB-14385-00-00

—

$49.09

In stock

24

PIN, FLOAT

5LB-14386-00-00

—

$6.43

In stock

25

NEEDLE VALVE ASSY

5LB-14390-00-00

—

$36.42

In stock

26

GASKET, FLOAT CHAMBER

5LB-14384-00-00

—

$14.25

In stock

27

AIR SCREW SET

4JP-14104-00-00

—

$8.97

In stock

28

SCREW

5LB-14592-00-00

—

$4.12

In stock

29

BRACKET 2

5LB-14292-00-00

—

$4.08

In stock

30

PIPE

5LB-14197-00-00

—

$7.34

In stock

31

PIPE

5FY-14196-00-00

—

$7.80

In stock

32

PLUG

4KN-1432A-00-00

—

$3.15

In stock

33

SCREW, BIND(6L2)

98980-04006-00

1

$4.89

In stock

34

PIPE

2JX-14193-00-00

—

$28.74

In stock

35

HOSE (L200)

90445-07176-00

—

$7.11

In stock

36

BOLT, FLANGE

95817-08012-00

—

$3.98

In stock
