Partiron

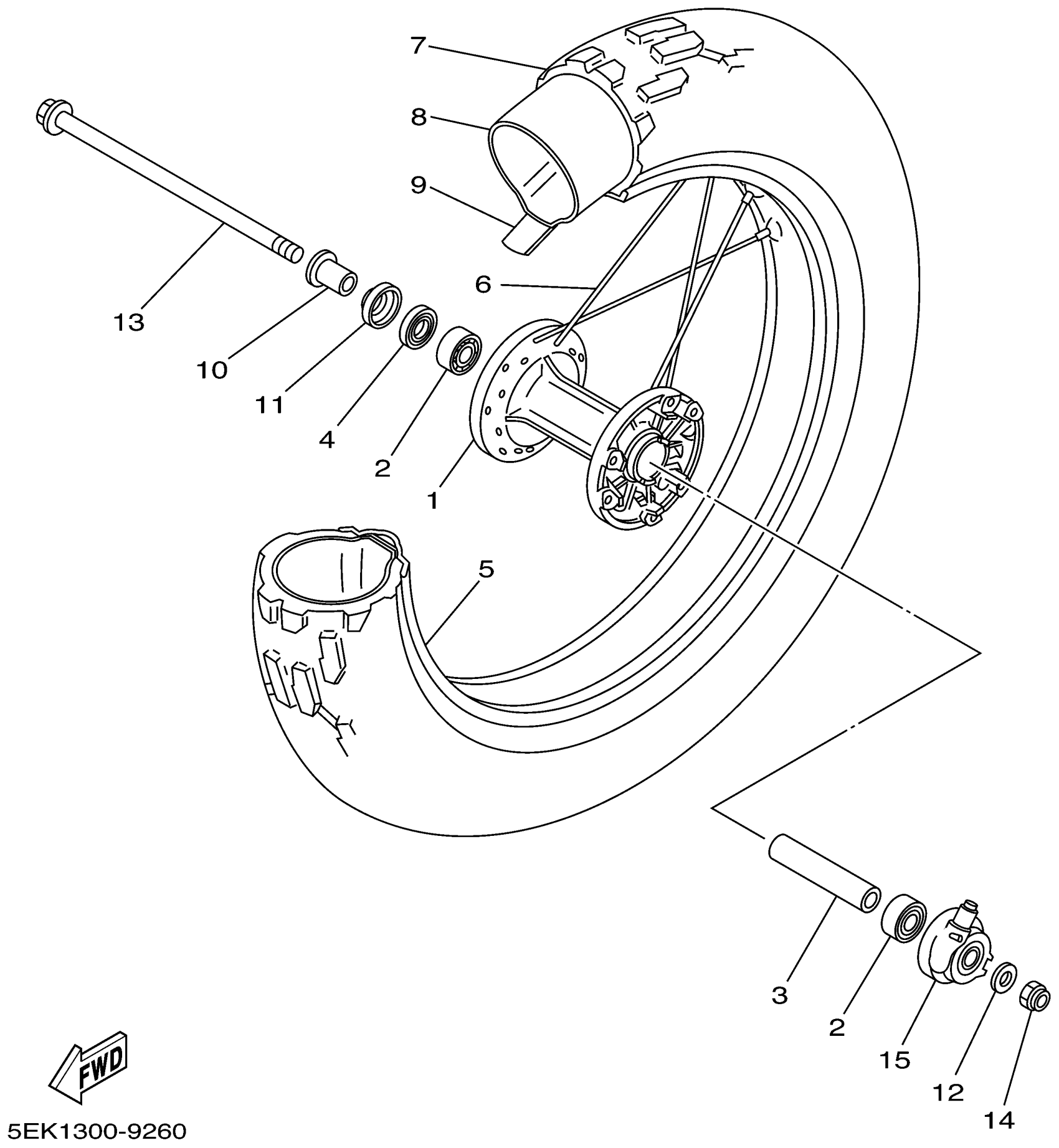

Yamaha TW200NC (TW200 CA) 5FY9 2001 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

5EK-25111-00-00

$245.00

2

BEARING

93306-20203-00

$21.66

3

SPACER(23A)

90560-15312-00

$33.89

4

OIL SEAL (23X)

93102-20281-00

$10.58

5

RIM (2.50-18)

94425-18603-00

$297.38

6

SPOKE SET, REAR

4TP-25304-10-00

Unavailable

7

TIRE (130/80-18 M/C 66P TW31)

94113-184R7-00

$169.99

8

TUBE (5A8)

94212-18188-00

$31.74

9

BAND, RIM (2J4)

94340-18086-00

$14.93

10

COLLAR (1W1)

90387-15600-00

$14.32

11

COVER, HUB DUST

322-25118-00-00

$15.12

12

WASHER PLATE (3L6)

90201-14740-00

$5.76

13

AXLE, WHEEL

2JX-25181-00-00

$69.58

14

NUT, U(4JT)

95617-14100-00

Unavailable

15

GEAR UNIT ASSY

5EK-25190-00-00

Unavailable
