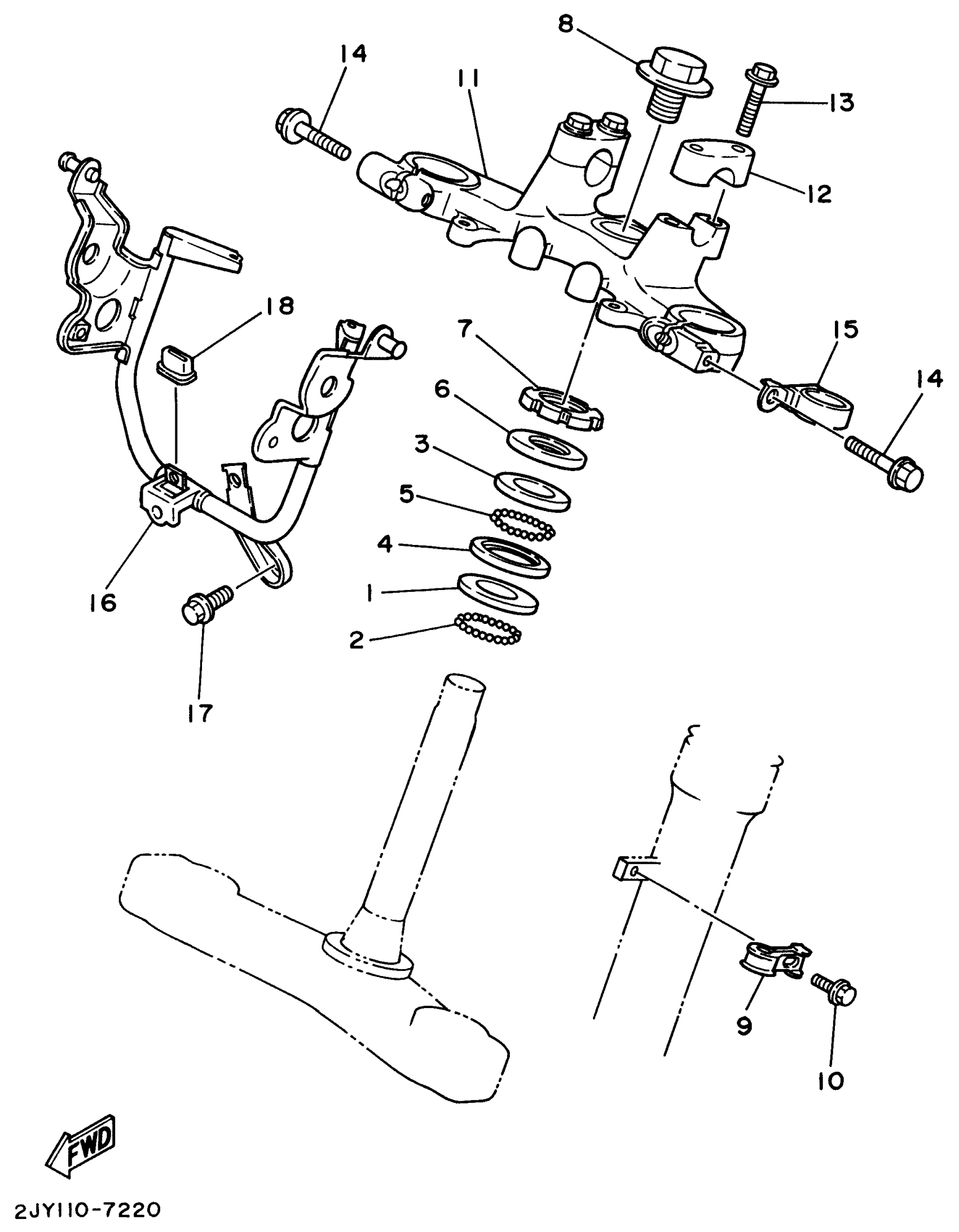

Yamaha TW200HC (TW200 CA) 1996 STEERING Diagram

#

Description
Price

1

RACE, BALL 2

B6E-23412-00-00

$9.71

2

BALL

93501-04011-00

$6.26

3

RACE, BALL 1

BP2-23411-00-00

$8.40

4

RACE, BALL 2

BP2-23412-00-00

$5.71

5

BALL

93503-16003-00

$2.05

6

COVER, BALL RACE

122-23416-00-00

$6.40

7

NUT

90179-25004-00

$20.78

8

BOLT (2A2)

90105-14102-00

$4.93

9

HOLDER, CABLE 2

3Y1-23319-00-00

Unavailable

10

BOLT, FLANGE

95817-06012-00

$1.49

11

CROWN, HANDLE

2JX-23435-10-35

$110.55

12

HOLDER, HANDLE UPPER

1E6-23441-10-35

$20.51

13

BOLT, FLANGE(4FM)

95814-08035-00

$6.68

14

BOLT, SMALL FLANGE

95027-08050-00

$0.77

15

HOLDER, CABLE

3R1-23317-00-00

Unavailable

16

STAY, HEADLIGHT

2JX-23174-00-00

Unavailable

17

BOLT, FLANGE

95817-06012-00

$1.49

18

DAMPER

30X-23445-00-00

Unavailable
