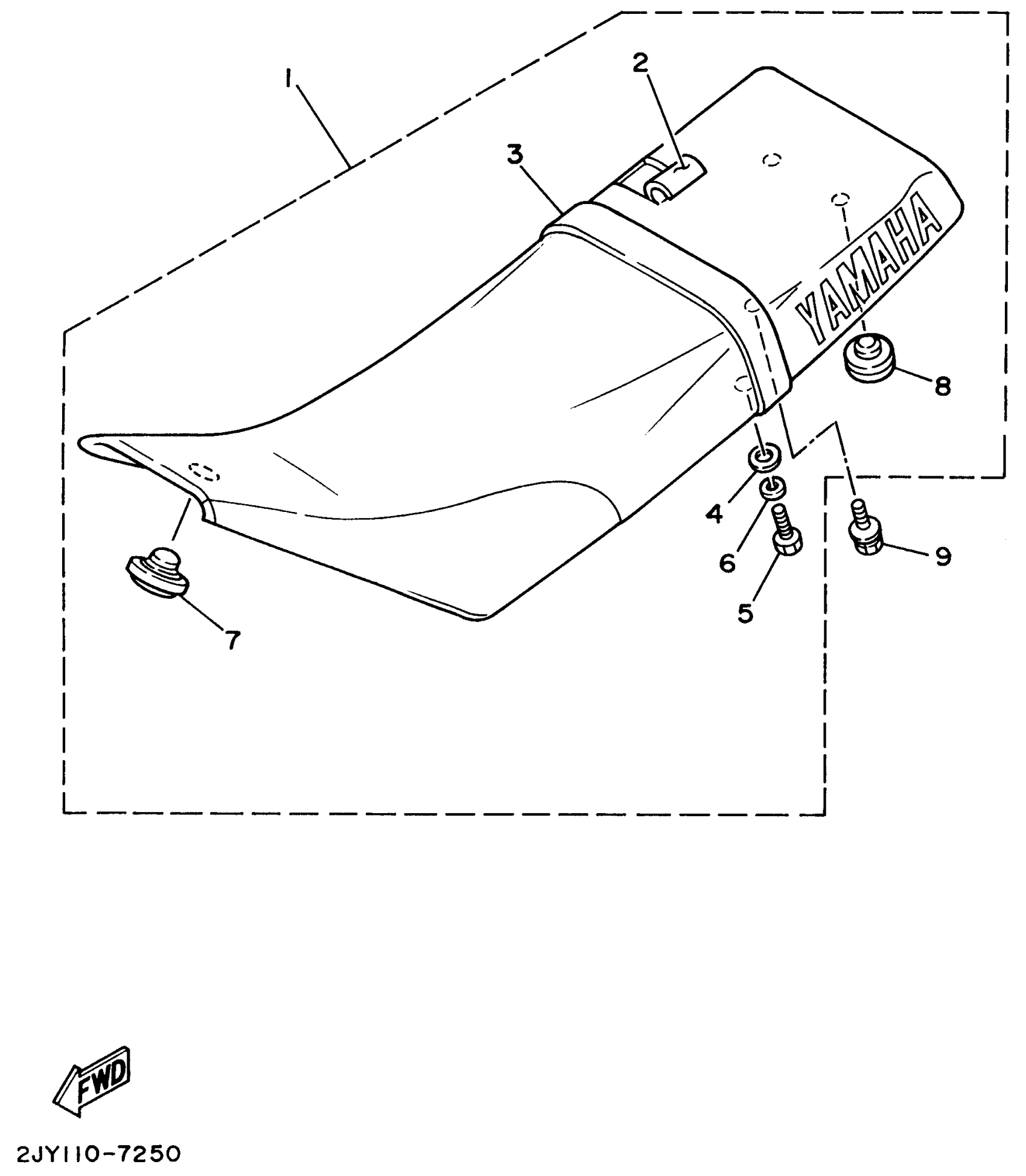

Yamaha TW200HC (TW200 CA) 1996 SEAT Diagram

#

Description
Price

1

SEMI-DOUBLE SEAT ASSEMBLY

2JX-24770-60-00

Unavailable

2

. COVER, SEAT

2JX-24731-60-00

Unavailable

3

. BAND, SEAT

2JX-24734-60-00

Unavailable

4

WASHER, PLATE 8221447500

90201-06057-00

$3.77

5

BOLT, HEXAGON

97017-06020-00

$2.55

6

WASHER, SPRING

92907-06100-00

$1.00

7

DAMPER, SEAT

18A-24723-00-00

$8.17

8

PAD, SEAT

1L9-24741-00-00

$8.91

9

BOLT, WITH WASHER (10V)

90119-06063-00

$6.29
