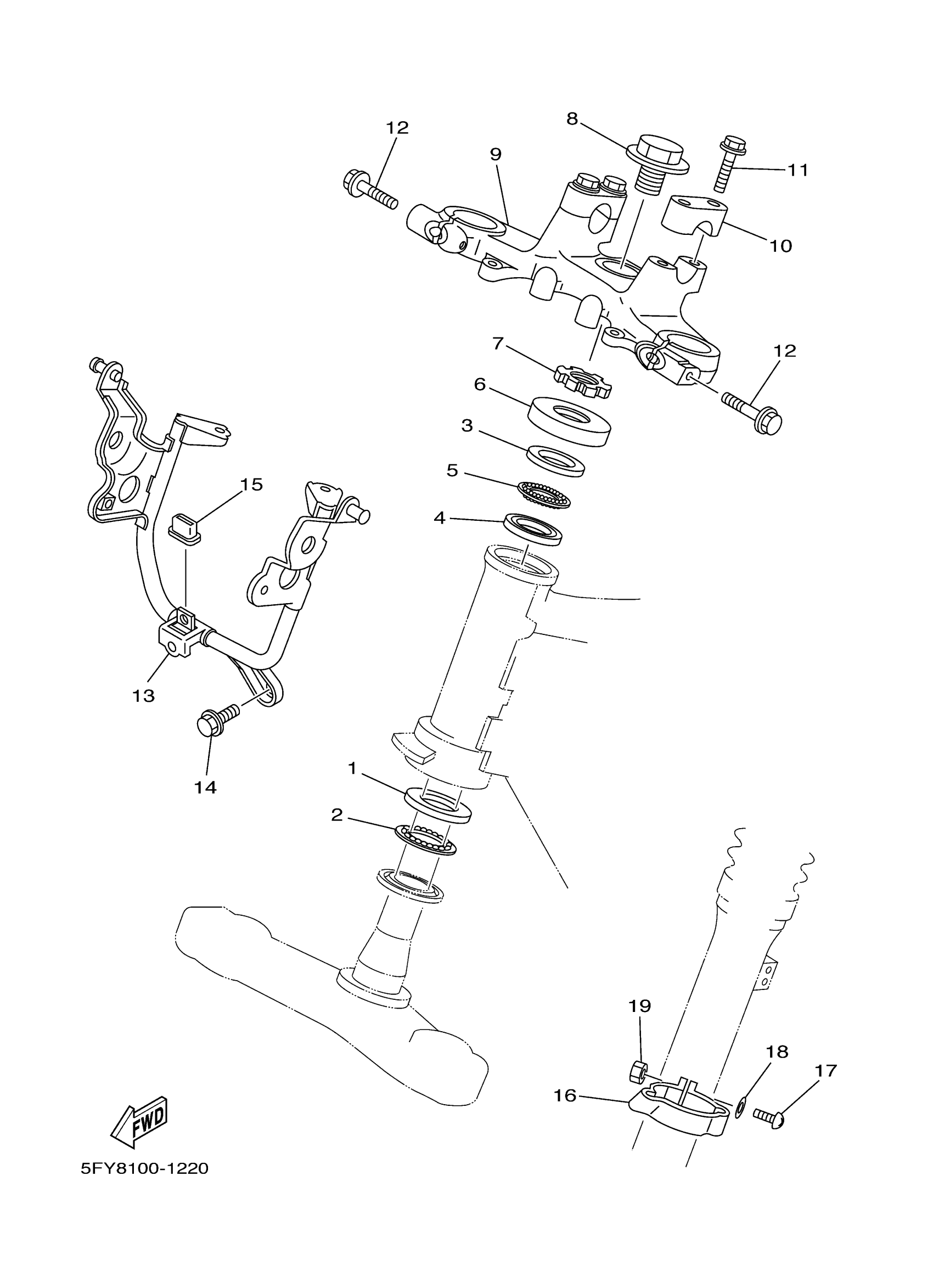

Yamaha TW200H1C (TW200 CA) B758 2017 STEERING Diagram

#

Description
Price

1

RACE, BALL 2

B6E-23412-00-00

$9.05

2

RETAINER, BALL BEARING

B6E-2341E-00-00

$11.08

3

RACE, BALL 1

BP2-23411-00-00

$7.83

4

RACE, BALL 2

BP2-23412-00-00

$5.33

5

RETAINER, BALL BEARING

BP2-2341E-00-00

$11.48

6

COVER, BALL RACE 2

36X-23416-00-00

$10.20

7

NUT

90179-25004-00

$19.41

8

BOLT (2A2)

90105-14102-00

$4.81

9

CROWN, HANDLE

2JX-23435-10-35

$108.88

10

HOLDER, HANDLE UPPER

1E6-23441-10-35

$20.20

11

BOLT, FLANGE(4FM)

95814-08035-00

$6.22

12

BOLT, FLANGE(3XF)

95024-08050-00

$6.11

13

STAY, HEADLIGHT

5FY-23174-00-00

$89.88

14

BOLT, FLANGE

95817-06012-00

$1.40

15

DAMPER

30X-23445-00-00

$8.64

16

HOLDER, CABLE

34X-23317-00-00

Unavailable

17

SCREW, PAN HEAD(4MY)

98507-05018-00

Unavailable

18

WASHER(1RW)

92907-05600-00

Unavailable

19

NUT, HEXAGON

95317-05600-00

Unavailable
