1995 Yamaha Trailway CA (TW200GC) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1995 Yamaha Trailway CA (TW200GC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

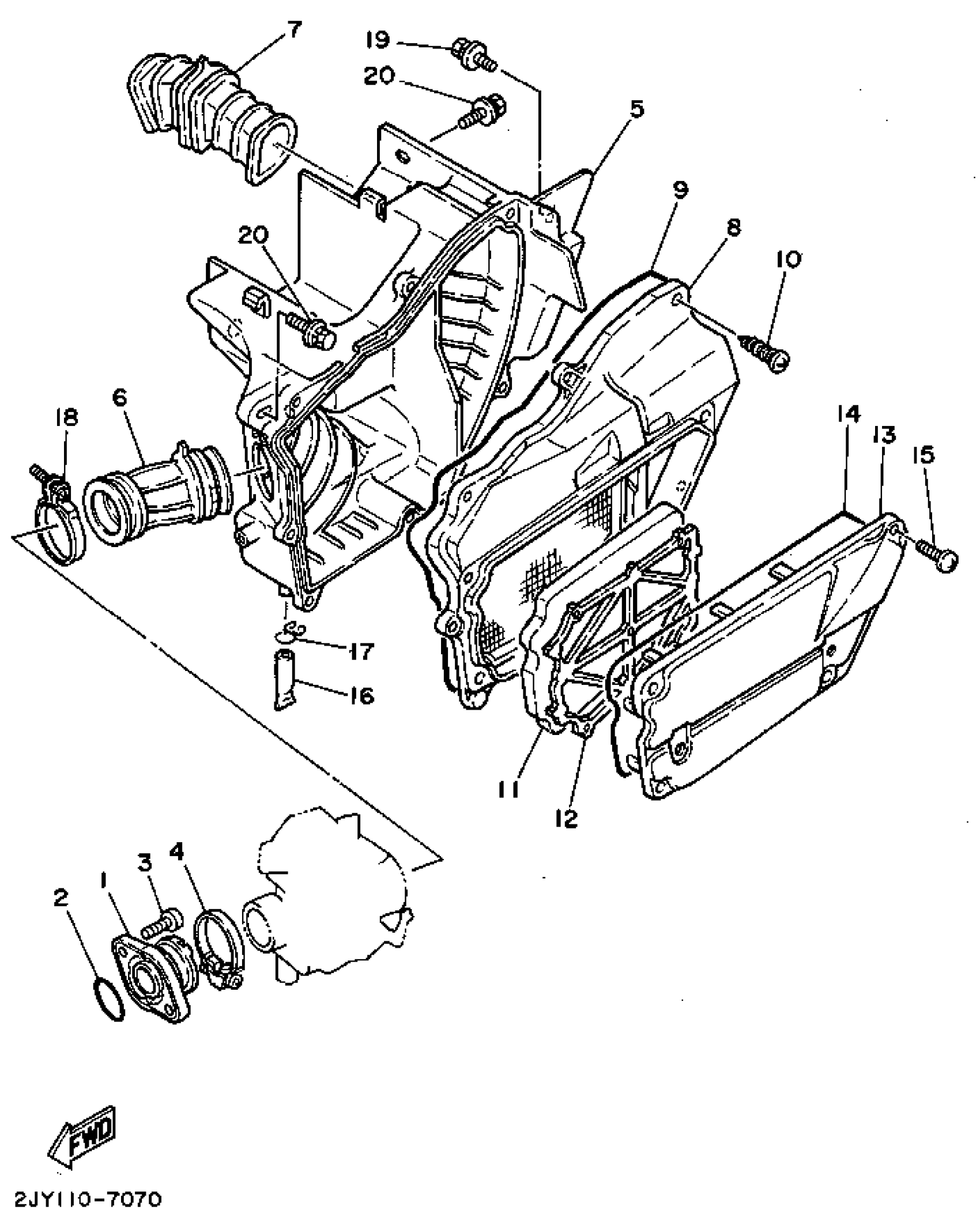

1995 Yamaha Trailway CA (TW200GC) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 1

2JX-13586-00-00

—

$123.15

In stock

2

O-RING (16G)

93210-35537-00

1

$11.32

In stock

3

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

4

BAND

4TR-13474-02-00

1

$9.52

In stock

5

CASE, AIR CLEANER 1

2JX-14411-02-00

—

$40.66

In stock

6

JOINT, AIR CLEANER 1

2JX-14453-00-00

1

$47.06

In stock

7

DUCT

2JX-14437-00-00

1
Out of stock

8

CAP, CLEANER CASE 1

2JX-14412-00-00

—

$139.78

In stock

9

SEAL

1VJ-14462-00-00

1

$16.08

In stock

10

SCREW, PAN TAP.2 SLIT

97707-50620-00

1

$6.45

In stock

11

ELEMENT, AIR CLEANER

2JX-14451-00-00

1

$8.66

In stock

12

GUIDE

2JX-14458-00-00

1

$30.72

In stock

13

CAP, CLEANER CASE 2

2JX-14422-00-00

1

$72.85

In stock

14

SEAL

1VJ-14462-00-00

1

$16.08

In stock

15

SCREW, BINDING (8J0)

90154-05005-00

1
Out of stock

16

PIPE, DRAIN

34X-1443E-00-00

—

$6.74

In stock

17

CLIP(1JH)

90467-11106-00

—
Out of stock

18

HOSE CLAMP ASSY

90450-47002-00

—

$7.15

In stock

19

BOLT, WITH WASHER

90119-06152-00

—

$2.74

In stock

20

BOLT, WITH WASHER (10V)

90119-06063-00

—

$6.29

In stock
