2015 Yamaha TW200 CA (TW200F1C) Steering Handle Cable Diagram

← All diagrams

Find the part on the Steering Handle Cable diagram for your 2015 Yamaha TW200 CA (TW200F1C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

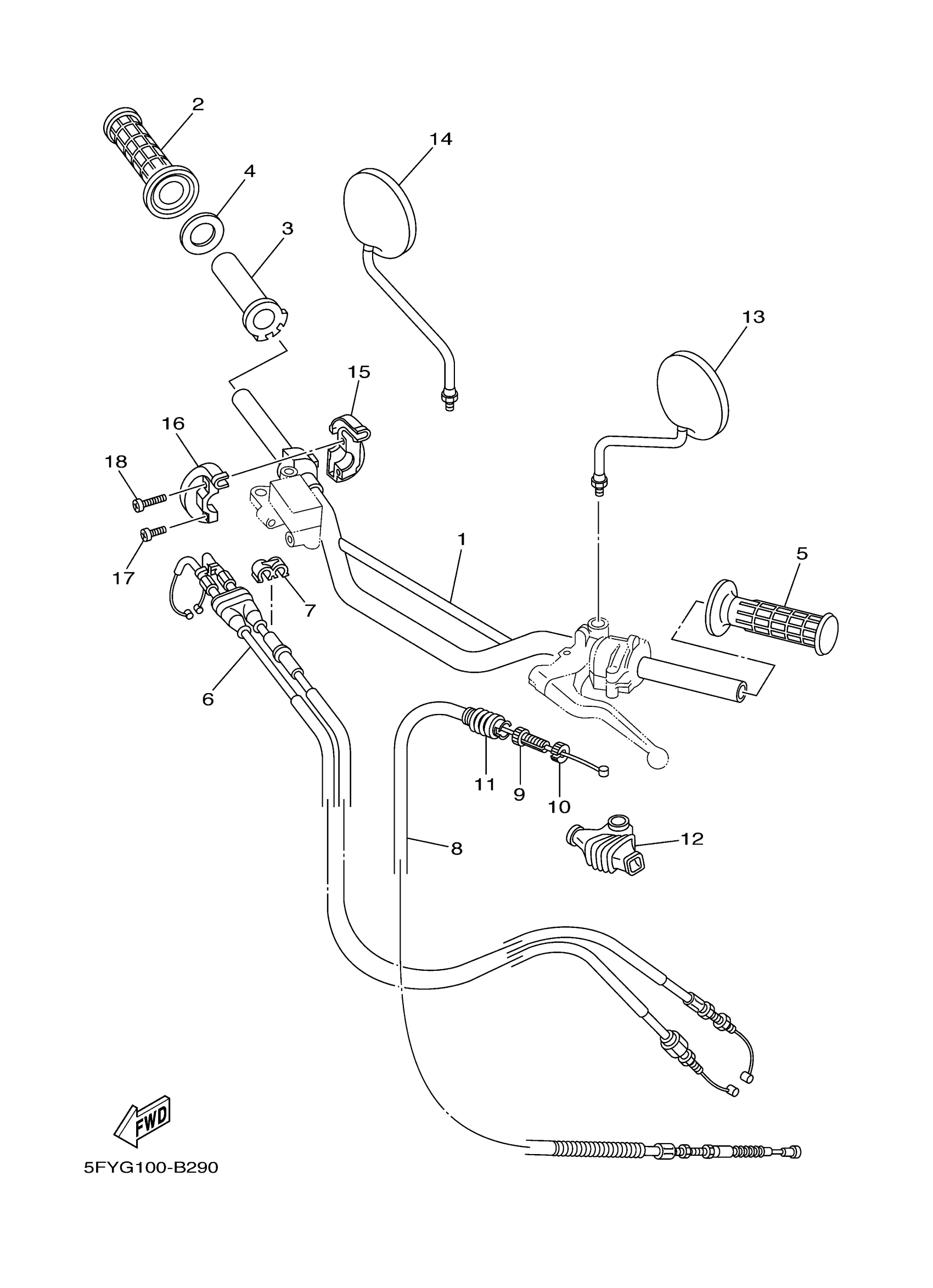

2015 Yamaha TW200 CA (TW200F1C) Steering Handle Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

5LB-26111-00-00

1
Out of stock

2

GRIP (R.H)

1LX-26242-01-00

1
Out of stock

3

TUBE, THROTTLE GUIDE

5BE-26243-00-00

1
Out of stock

4

RING, LEAF

3Y1-26249-00-00

1
Out of stock

5

GRIP (L.H)

1LX-26241-01-00

1
Out of stock

6

THROTTLE CABLE ASSY

5LB-26302-03-00

1
Out of stock

7

CLAMP(4KB)

90464-06214-00

1
Out of stock

8

CABLE, CLUTCH

5EK-26335-00-00

1
Out of stock

9

BOLT

90123-08002-00

1
Out of stock

10

NUT

90179-08030-00

1
Out of stock

11

BOOT, WIRE

1E6-26342-00-00

1
Out of stock

12

COVER, LEVER

1E6-26372-00-00

1
Out of stock

13

MIRROR ASSY., 2

5Y1-26290-11-00

1
Out of stock

14

REAR VIEW MIRROR ASSY(RIGHT)

3Y1-26290-00-00

1
Out of stock

15

CAP, GRIP UPPER

3LN-26281-01-00

—
Out of stock

16

CAP, GRIP LOWER

3LN-26282-01-00

—
Out of stock

17

SCREW, PAN HEAD

98517-05020-00

—
Out of stock

18

SCREW, PAN HEAD(4MY)

98507-05025-00

—
Out of stock
