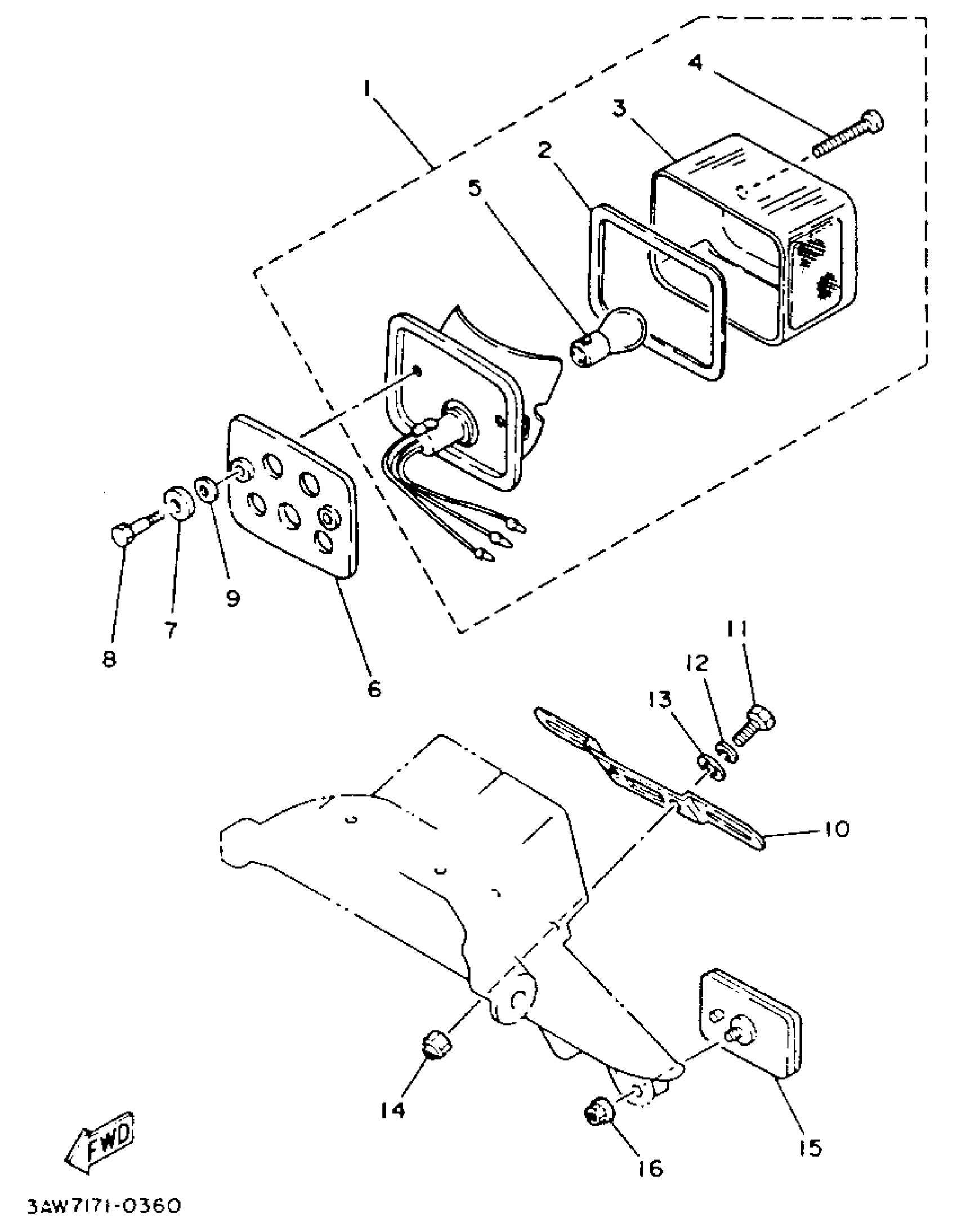

Find the part on the Taillight diagram for your 1993 Yamaha Trailwayca (TW200EC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Yamaha Trailwayca (TW200EC) Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASSY

1W9-84710-61-00

1

$96.22

In stock

2

GASKET, TAIL LENS

1M1-84523-60-00

1

$11.03

In stock

3

LENS, TAIL LAMP

1M1-84521-60-00

1

$35.69

In stock

4

SCREW, ADJUSTING

5BF-8433E-00-00

1

$6.11

In stock

5

1

$10.02

In stock

6

DAMPER

4L0-84753-00-00

—

$14.00

In stock

7

WASHER, SPECIAL (498)

90209-08125-00

1

$9.83

In stock

8

BOLT 337847520000

90109-06005-00

1

$6.29

In stock

9

WASHER, PLATE (4L0)

90201-083A0-00

1

$6.91

In stock

10

BRACKET, LICENCE

36A-84551-00-00

—

$18.55

In stock

11

BOLT, HEXAGON

97017-06016-00

1

$6.18

In stock

12

WASHER, SPRING

92907-06100-00

1
Out of stock

13

WASHER, PLATE

90201-06020-00

1

$6.28

In stock

14

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

15

REAR REFLECTOR ASSY

4KM-85130-00-00

1

$20.34

In stock

16

NUT, FLANGE(3GM)

95707-05500-00

—

$6.18

In stock
