1993 Yamaha Trailwayca (TW200EC) Crankcase Diagram

← All diagrams

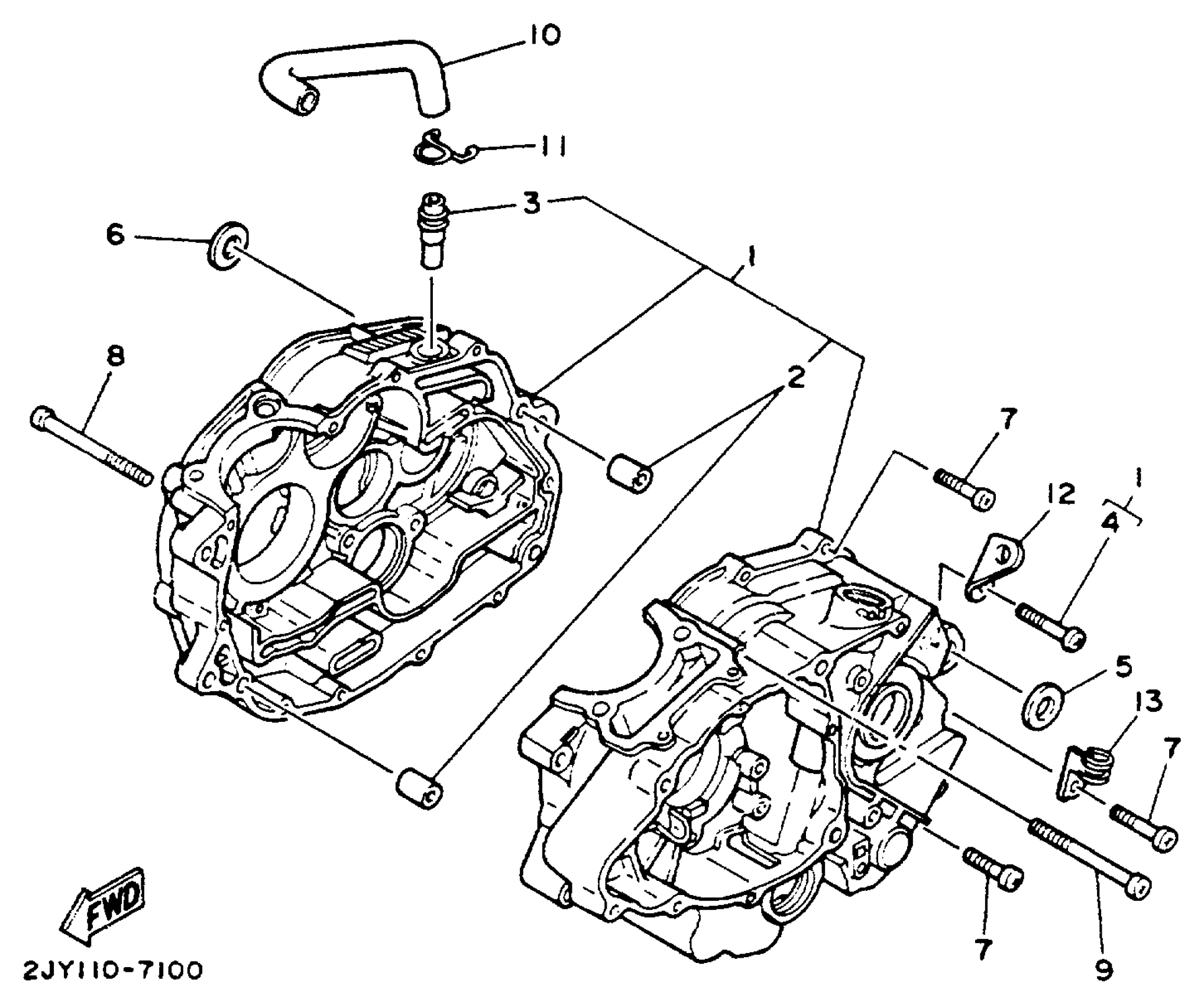

Find the part on the Crankcase diagram for your 1993 Yamaha Trailwayca (TW200EC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Yamaha Trailwayca (TW200EC) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

99999-03070-00

1
Out of stock

2

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

3

PIPE, BREATHER 2

371-11167-01-00

1

$10.35

In stock

4

SCREW, PAN

98507-06040-00

1

$2.25

In stock

5

COLLAR (15A)

90387-125F1-00

1

$3.91

In stock

6

COLLAR (15A)

90387-125F1-00

1

$3.91

In stock

7

SCREW, PAN

98517-06030-00

1
Out of stock

8

SCREW, PAN

98507-06090-00

—

$7.02

In stock

9

SCREW, PAN

98507-06085-00

1

$5.17

In stock

10

PIPE, BREATHER 1

3Y1-11166-00-00

—

$20.75

In stock

11

CLIP (371)

90467-14015-00

1

$7.51

In stock

12

CLAMP (15A)

90465-08200-00

1

$3.98

In stock

13

CLAMP (5H0)

90462-06080-00

1

$11.60

In stock
