1993 Yamaha Trailwayca (TW200EC) Air Filter Diagram

← All diagrams

Find the part on the Air Filter diagram for your 1993 Yamaha Trailwayca (TW200EC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

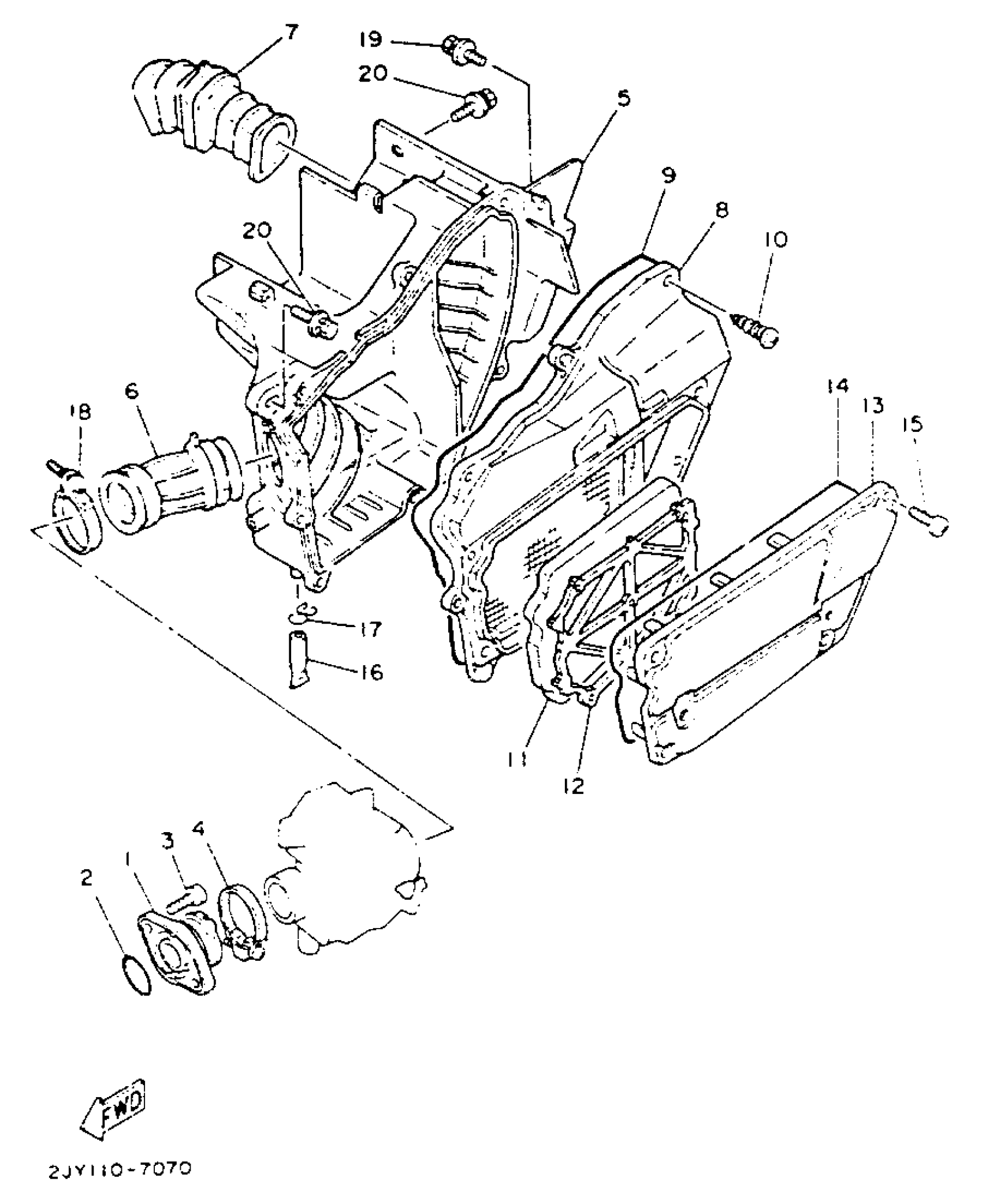

1993 Yamaha Trailwayca (TW200EC) Air Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 1

2JX-13586-00-00

—
Out of stock

2

O-RING (16G)

93210-35537-00

1
Out of stock

3

BOLT,SOCKET

91317-06020-00

—
Out of stock

4

BAND

4TR-13474-02-00

1
Out of stock

5

CASE, AIR CLEANER 1

2JX-14411-02-00

—
Out of stock

6

JOINT, AIR CLEANER 1

2JX-14453-00-00

1
Out of stock

7

DUCT

2JX-14437-00-00

1
Out of stock

8

CAP, CLEANER CASE 1

2JX-14412-00-00

—
Out of stock

9

SEAL

1VJ-14462-00-00

1
Out of stock

10

SCREW, PAN TAP.2 SLIT

97707-50620-00

1
Out of stock

11

ELEMENT, AIR CLEANER

2JX-14451-00-00

1
Out of stock

12

GUIDE

2JX-14458-00-00

1
Out of stock

13

CAP, CLEANER CASE 2

2JX-14422-00-00

1
Out of stock

14

SEAL

1VJ-14462-00-00

1
Out of stock

15

SCREW, BINDING (8J0)

90154-05005-00

1
Out of stock

16

PIPE, DRAIN

34X-1443E-00-00

—
Out of stock

17

CLIP(1JH)

90467-11106-00

—
Out of stock

18

CLAMP HOSE 278144550000

90460-49058-00

—
Out of stock

19

BOLT, WITH WASHER

90119-06152-00

—
Out of stock

20

BOLT, WITH WASHER (10V)

90119-06063-00

—
Out of stock
