2014 Yamaha TW200 CA (TW200E1C) Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2014 Yamaha TW200 CA (TW200E1C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

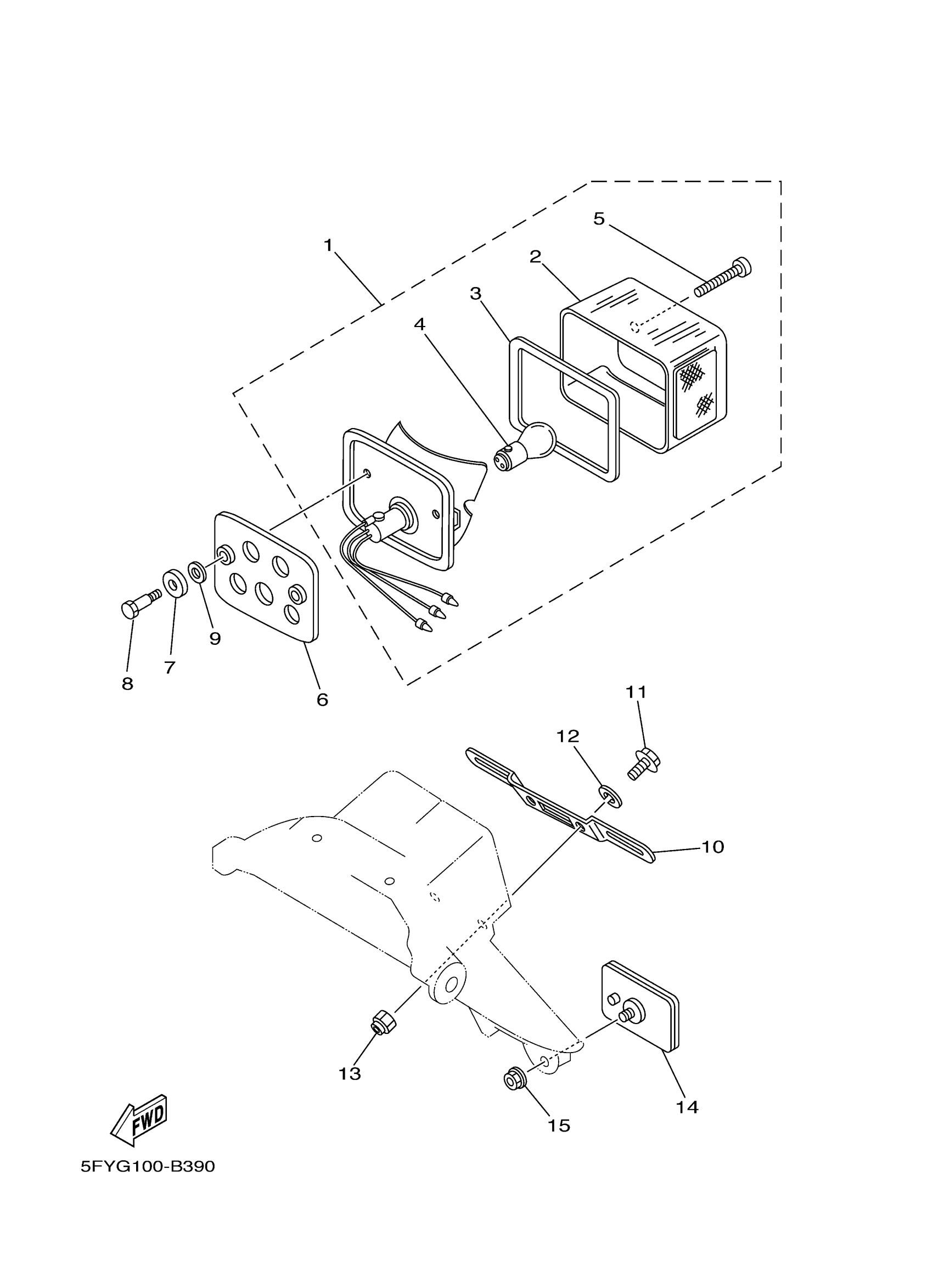

2014 Yamaha TW200 CA (TW200E1C) Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASSY

1W9-84710-61-00

1
Out of stock

2

LENS, TAIL LAMP

1M1-84521-60-00

1
Out of stock

3

GASKET, TAIL LENS

1M1-84523-60-00

1
Out of stock

4

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

1
Out of stock

5

SCREW, ADJUSTING

5BF-8433E-00-00

1
Out of stock

6

DAMPER

4L0-84753-00-00

—
Out of stock

7

WASHER, SPECIAL (498)

90209-08125-00

1
Out of stock

8

BOLT 337847520000

90109-06005-00

1
Out of stock

9

WASHER, PLATE (4L0)

90201-083A0-00

1
Out of stock

10

BRACKET, LICENCE

36A-84551-00-00

—
Out of stock

11

BOLT, FLANGE

95817-06016-00

1
Out of stock

12

WASHER, PLATE

90201-06557-00

1
Out of stock

13

NUT, SELF-LOCKING

95617-06100-00

1
Out of stock

14

REAR REFLECTOR ASSY

4KM-85130-00-00

1
Out of stock

15

NUT, FLANGE(3GM)

95707-05500-00

1
Out of stock
