1992 Yamaha Trailway CA (TW200DC) Side Cover Diagram

← All diagrams

Find the part on the Side Cover diagram for your 1992 Yamaha Trailway CA (TW200DC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

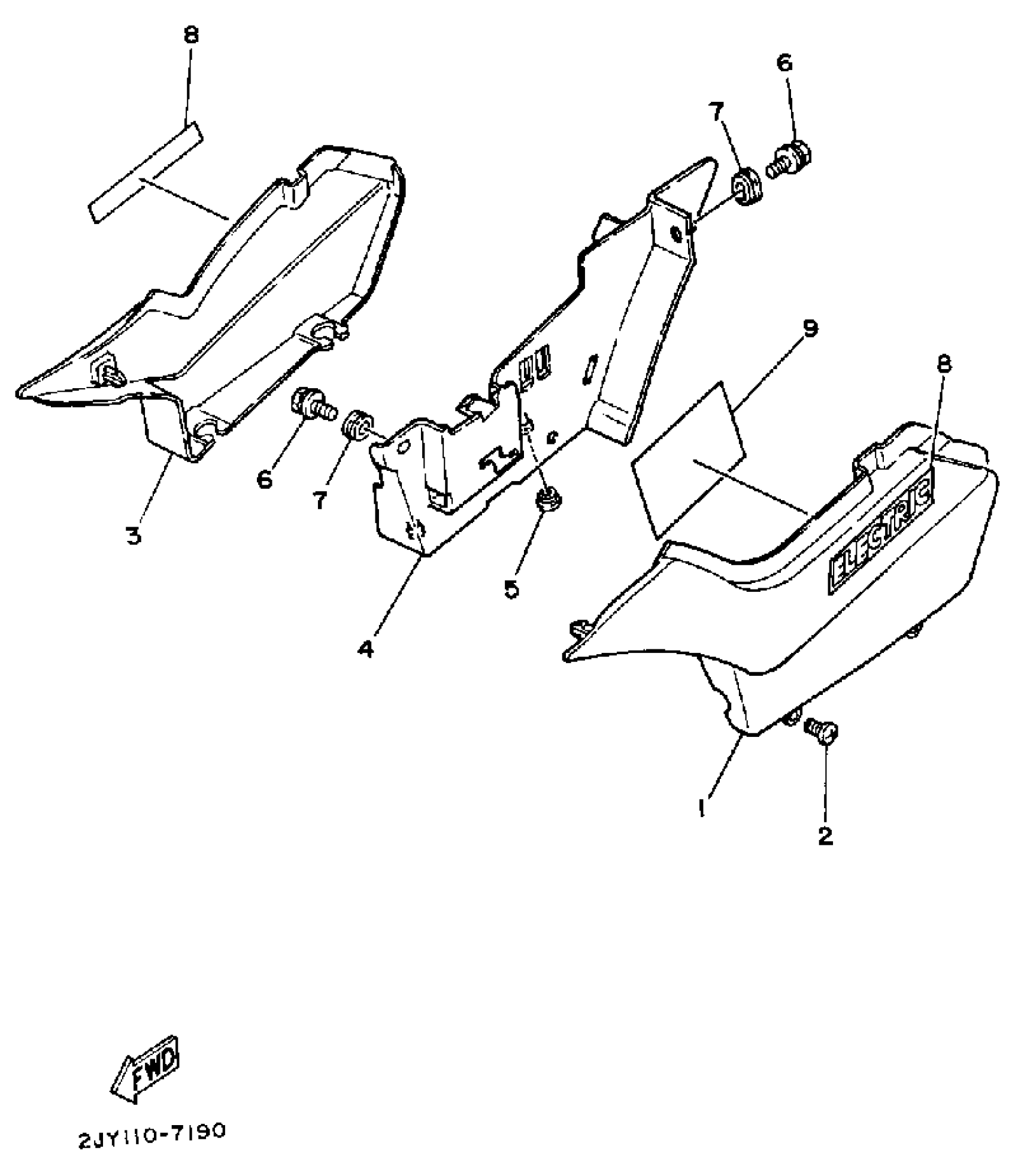

1992 Yamaha Trailway CA (TW200DC) Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE 1

3AW-21711-30-98

1
Out of stock

2

SCREW, BINDING (10V)

90154-05013-00

1
Out of stock

3

COVER, SIDE 1

3AW-21721-30-98

1
Out of stock

4

BOX

2JX-2177A-00-00

1
Out of stock

5

GROMMET

90480-13014-00

1

$6.85

In stock

6

BOLT, WITH WASHER

90119-06152-00

1

$2.74

In stock

7

GROMMET(41Y)

90480-01401-00

1

$5.51

In stock

8

EMBLEM 2

3AW-21782-30-00

1
Out of stock

9

PLATE, EPA 1 CAL

3AW-2179N-30-00

1
Out of stock

9

PLATE, EPA 1 NON CA

3AW-2179V-30-00

1
Out of stock
