1992 Yamaha Trailway CA (TW200DC) Shift Shaft Diagram

← All diagrams

Find the part on the Shift Shaft diagram for your 1992 Yamaha Trailway CA (TW200DC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

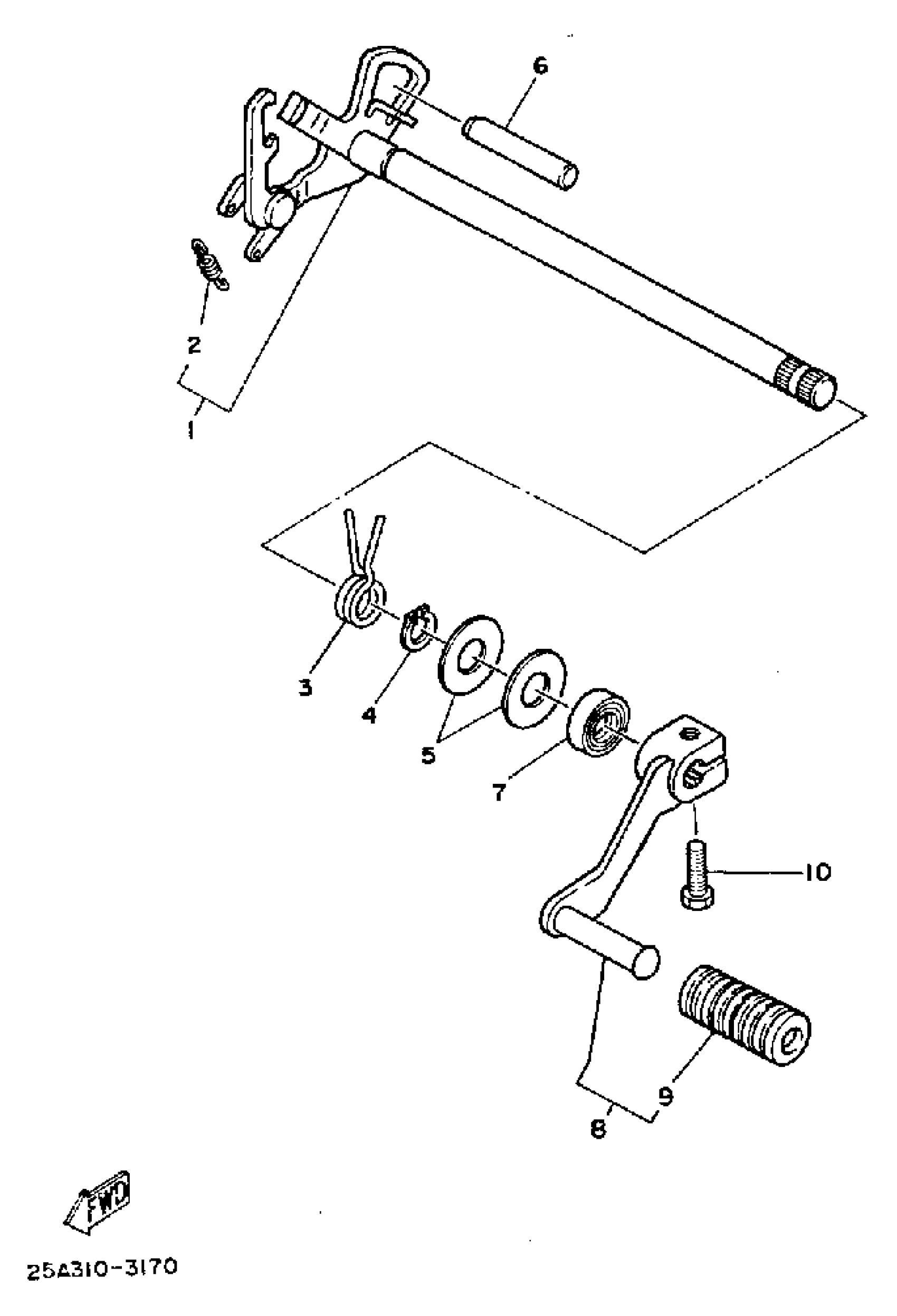

1992 Yamaha Trailway CA (TW200DC) Shift Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT LEVER ASSY

5H0-18120-02-00

1

$93.45

In stock

2

SPRING, TENSION (4H7)

90506-08227-00

1

$2.85

In stock

3

SPRING, TORSION (15A)

90508-29540-00

1

$6.20

In stock

4

CIRCLIP

99006-10600-00

1

$6.91

In stock

5

WASHER

90201-12588-00

1

$6.37

In stock

6

PIN, DOWEL (4H7)

93608-50158-00

1

$6.68

In stock

7

SEAL, OIL (30X)

93102-12321-00

1

$10.14

In stock

8

SHIFT PEDAL ASSY

1RL-18110-00-00

1

$23.65

In stock

9

COVER, CHANGE PEDAL

132-18113-01-00

1
Out of stock

10

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock
