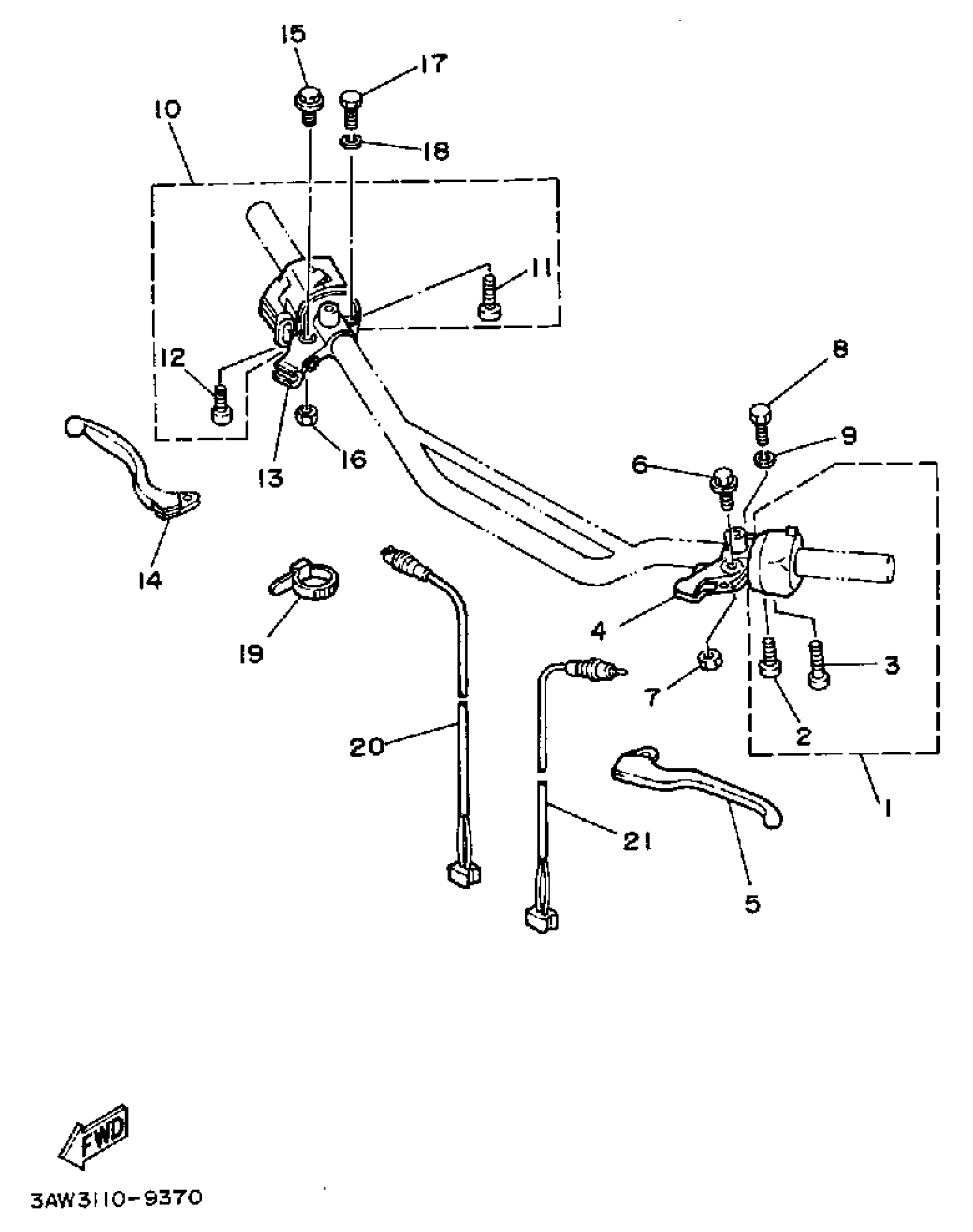

Yamaha TW200DC (TRAILWAY CA) 1992 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

SWITCH, HANDLE 3

2JX-83973-01-00

Unavailable

2

SCREW, PAN HEAD(41N)

90157-05057-00

Unavailable

3

SCREW, PAN HEAD

98517-05030-00

$7.56

4

HOLDER, LEVER 1

3Y6-82911-00-00

$45.04

5

LEVER 1

23X-83912-02-00

$20.45

6

BOLT (2YK1)

90109-06799-00

$4.32

7

NUT, SELF-LOCKING

95617-06100-00

$2.29

8

BOLT, HEXAGON

97007-06022-00

Unavailable

9

WASHER, SPRING

92907-06100-00

$1.49

10

SWITCH, HANDLE 1

2JX-83976-00-00

Unavailable

11

SCREW, PAN

98507-05035-00

$6.36

12

SCREW, PAN HEAD

98517-05020-00

$1.49

13

HOLDER, LEVER 2

83J-82910-00-00

$53.75

14

LEVER R

23X-83922-01-00

$20.72

15

BOLT (2YK1)

90109-06799-00

$4.32

16

NUT, SELF-LOCKING

95617-06100-00

$2.29

17

BOLT, HEXAGON

97007-06022-00

Unavailable

18

WASHER, SPRING

92907-06100-00

$1.49

19

BAND, SWITCH CORD

437-83936-01-00

Unavailable

20

SWITCH

3Y6-82917-00-00

Unavailable

21

SWITCH

3Y6-82917-00-00

Unavailable
