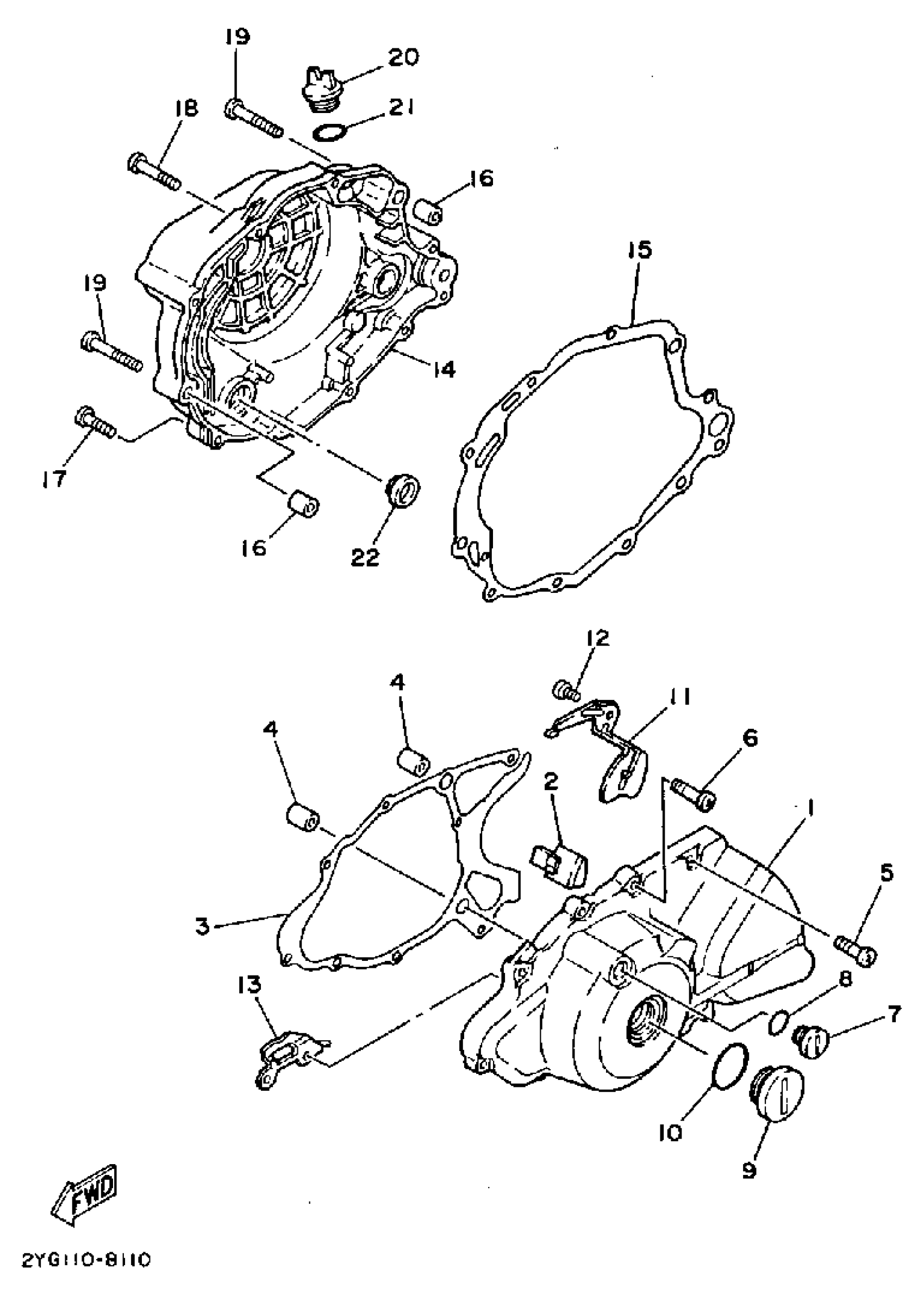

Yamaha TW200DC (TRAILWAY CA) 1992 CRANKCASE COVER 1 Diagram

#

Description
Price

1

CRANKCASE COVER ASSEMBLY 1

3AW-15410-00-00

Unavailable

2

GUIDE, INLET

2JX-15377-00-00

$27.23

3

GASKET, CRANKCASE COVER 1

3AW-15451-03-00

$15.27

4

PIN, DOWEL

99530-12016-00

$3.93

5

SCREW, PAN HEAD (76T)

98517-06025-00

$2.96

6

SCREW, PAN

98507-06035-00

$5.88

7

PLUG, STRAIGHT SCREW(2WK)

90340-14120-00

$11.82

8

O-RING (2H9)

93210-14369-00

$5.53

9

PLUG, STRAIGHT SCREW(3AW)

90340-32123-00

$18.82

10

O-RING (341)

93210-32172-00

$5.50

11

CLAMP

90465-08300-00

Unavailable

12

SCREW PAN HEAD

98580-06010-00

$5.87

13

CLAMP

90462-16096-00

Unavailable

14

COVER, CRANKCASE 3

3AW-15431-01-00

Unavailable

15

GASKET, CRANKCASE COVER 3

4BE-15462-00-00

$28.15

16

PIN, DOWEL

99530-12016-00

$3.93

17

SCREW, PAN HEAD (76T)

98517-06025-00

$2.96

18

SCREW, PAN

98507-06035-00

$5.88

19

SCREW, PAN

98507-06045-00

Unavailable

20

PLUG, OIL

3Y1-15363-10-00

Unavailable

21

O-RING (646)

93210-19123-00

Unavailable

22

GAUGE, LEVEL

3Y1-15361-00-00

Unavailable
