2013 Yamaha TW200 CA (TW200D1C) Frame Diagram

← All diagrams

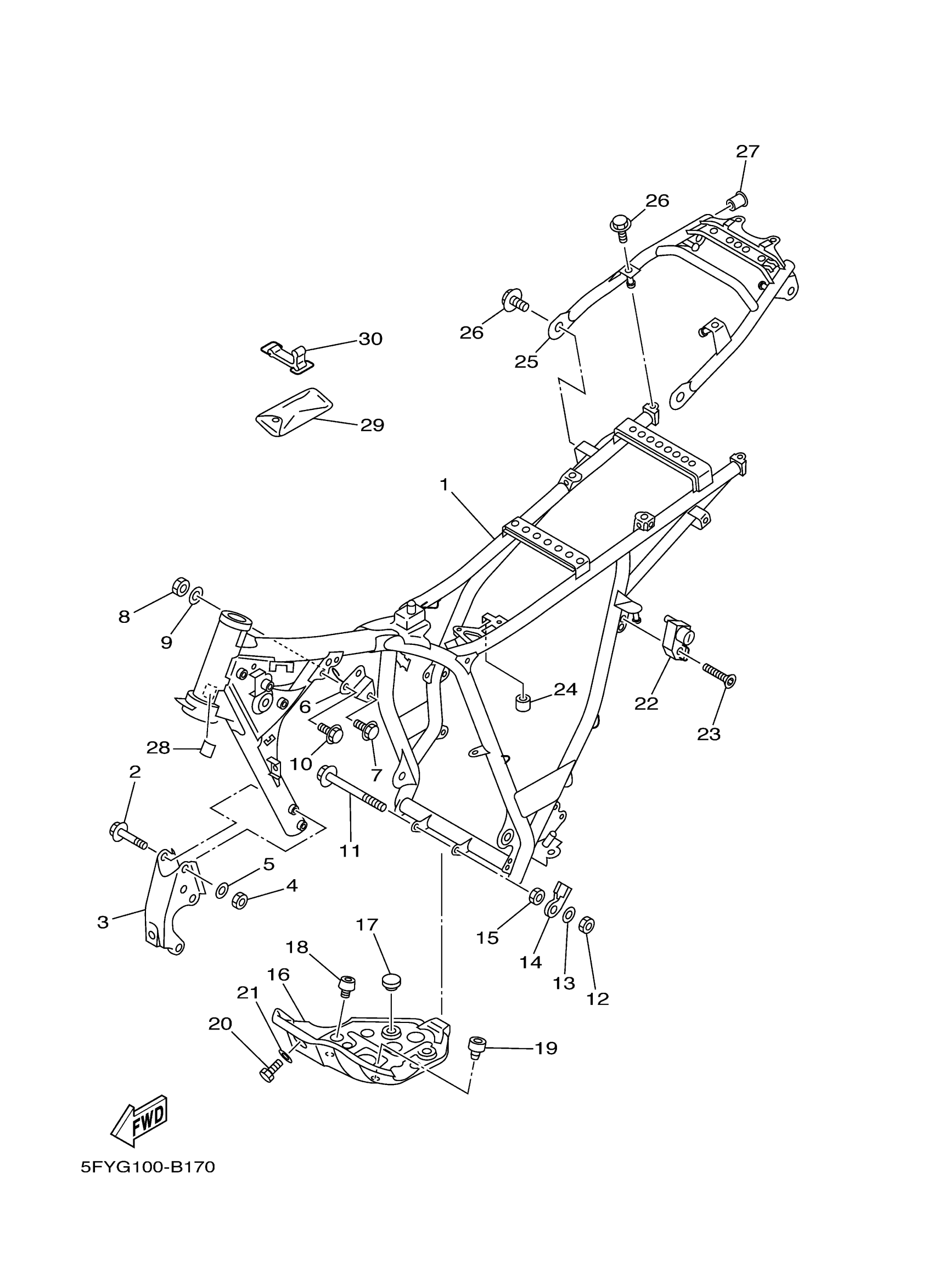

Find the part on the Frame diagram for your 2013 Yamaha TW200 CA (TW200D1C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Yamaha TW200 CA (TW200D1C) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

5FY-21110-61-00

1
Out of stock

2

BOLT, WASHER BASED

90105-084A1-00

1
Out of stock

3

STAY, ENGINE 2

1RL-21316-00-WL

1
Out of stock

4

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1
Out of stock

5

WASHER, PLATE (33N)

90201-094G1-00

1
Out of stock

6

STAY, ENGINE 2

5VC-21315-00-00

—
Out of stock

7

BOLT, FLANGE

95817-08050-00

1
Out of stock

8

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1
Out of stock

9

WASHER, PLATE (33N)

90201-094G1-00

1
Out of stock

10

BOLT WASHER BASED (1J7)

90105-08066-00

—
Out of stock

11

BOLT, FLANGE(4EM)

95817-08120-00

1
Out of stock

12

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1
Out of stock

13

WASHER, PLATE (33N)

90201-094G1-00

1
Out of stock

14

CLAMP, CABLE

1RL-21337-00-00

1
Out of stock

15

NUT

90185-08055-00

1
Out of stock

16

PROTECTOR, ENGINE

1RL-21471-00-35

—
Out of stock

17

STOPPER, MAIN STAND

128-27114-00-00

—
Out of stock

18

DAMPER, RUBBER 1

34L-21485-00-00

—
Out of stock

19

STOPPER, MAIN STAND

4N0-27114-00-00

—
Out of stock

20

BOLT, HEXAGON

97017-06016-00

—
Out of stock

21

WASHER(6TA)

92907-06600-00

—
Out of stock

22

HELMET HANGER ASSY

4R8-21308-01-00

—
Out of stock

23

SCREW (4G1)

90149-06154-00

—
Out of stock

24

GROMMET (5G0)

90480-12299-00

—
Out of stock

25

REAR FRAME COMP.

2JX-21190-00-P1

—
Out of stock

26

BOLT, FLANGE

95817-06012-00

—
Out of stock

27

PLUG(EU0)

90605-50201-00

—
Out of stock

28

PROTECTOR

3MA-27491-00-00

—
Out of stock

29

TOOL KIT

5VC-28100-01-00

—
Out of stock

30

BAND, BATTERY

3TJ-82131-00-00

—
Out of stock
