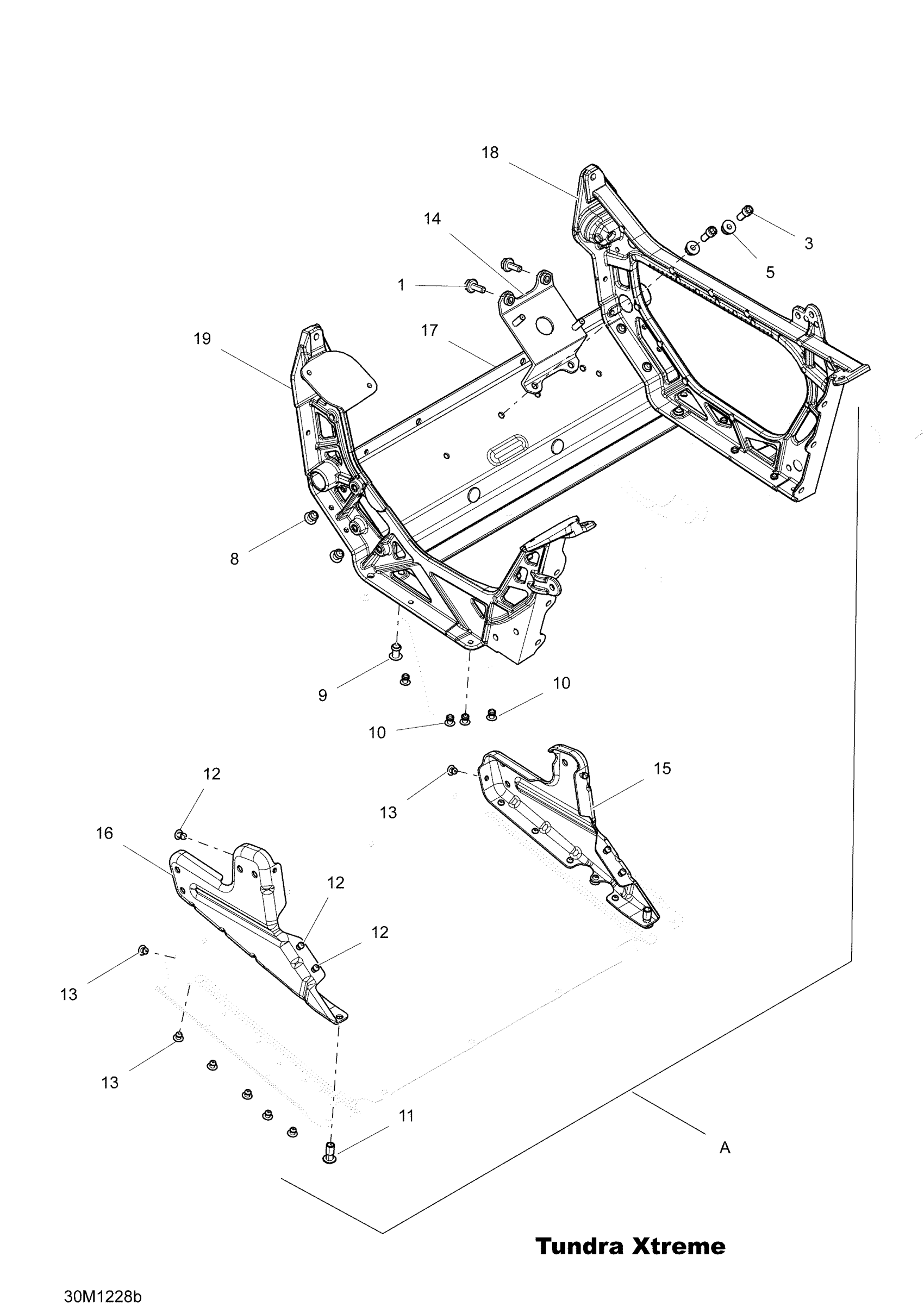

Ski-Doo Tundra Xtreme 600HOETEC XP-LTS, 2012 Frame E Module Diagram

Description

Price

Hex. Flange Screw M6 X 16

207661644

Unavailable

Socket Screw Head 1/4-20 X 5/8''

250000512

$6.26

Elastic Hex. Flange Nut 1/4-20

250100140

$7.31

Hemlock Rivet, 6.5 mm

293150119

$4.00

Hemlock Rivet 6.5 mm

293150120

$7.23

Stavex Rivet

293150144

Unavailable

Monobolt Rivet 6.4

293150182

$2.91

Avex Rivet

390909100

$0.29

Avex Rivet

390909200

Unavailable

MAG Engine Support | Includes 10a to 10a1

518325943

$26.12

RH Front Member

518325949

$18.43

LH Front Member

518325950

$17.66

Front Member

518326198

$59.97

RH Member

518326795

Unavailable

LH Member

518326796

$210.74

Module E TUNDRA Xtreme | Includes 10av to 10w

518326927

$708.43
