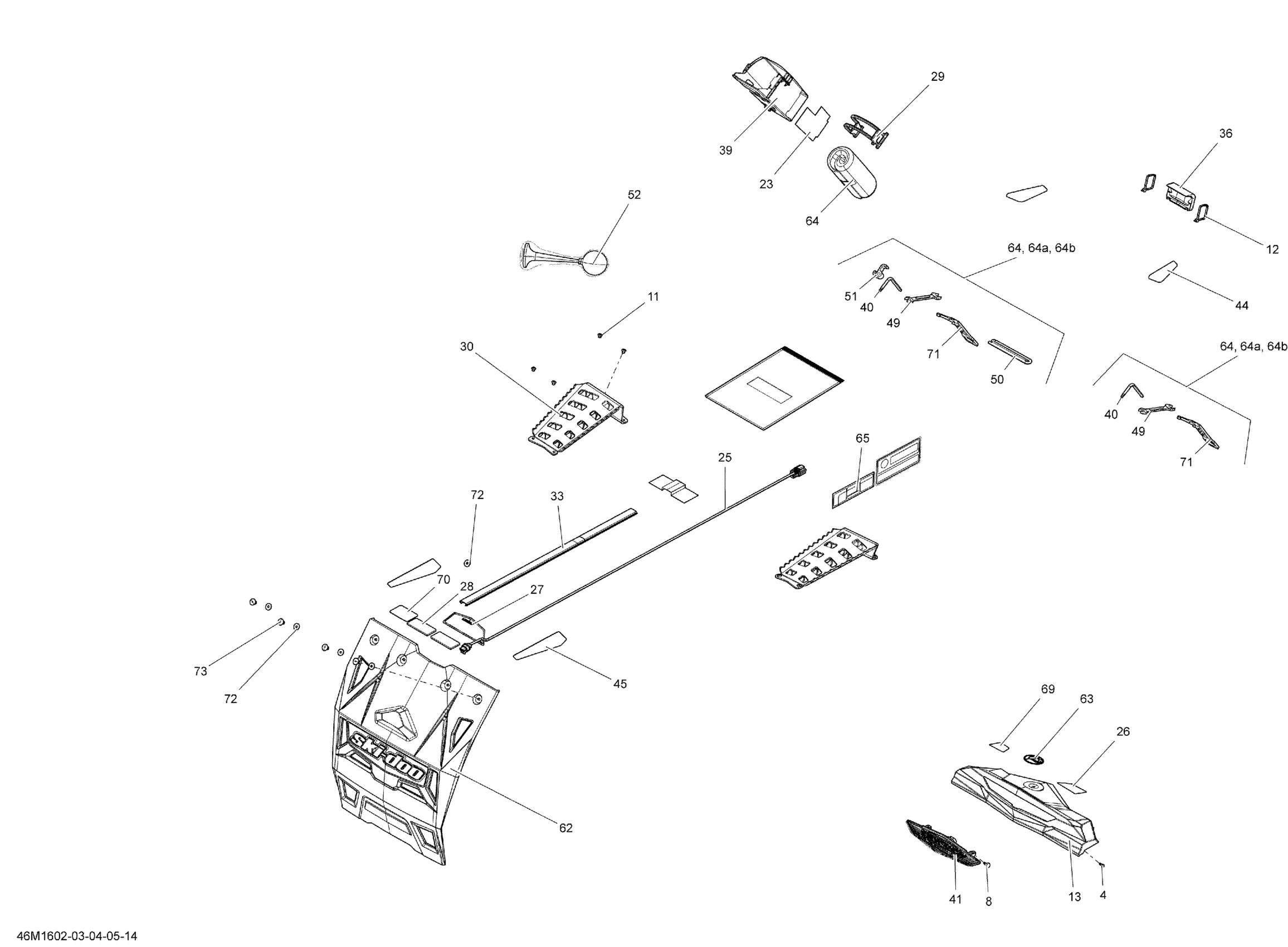

Ski-Doo TUNDRA - Xtreme, 2016 Utilities Diagram

#

Description
Price

4

Hex. Screw K40 X 13

241141340

Unavailable

8

Screw M4 X 16

250000725

Unavailable

12

Tie Rap 371 mm

293750018

$0.46

13

Deep Black, Light Fairing

511000810

Unavailable

23

Reflective Sheet

514054827

Unavailable

25

Wiring Harness

515178064

Unavailable

26

Warning Decal, Safety

516005058

Unavailable

27

Warning Decal, Track

516005175

Unavailable

28

Amber, Reflector

520000271

$18.43

29

Latch

520000528

$6.60

33

Radiator Trim

520000829

$20.74

36

Deep Black, Reflector Support

520000871

$5.29

39

Tool Kit Rack

520000894

$14.99

40

Spacing Tool

520001142

$10.99

41

Rear Light

520001143

$76.89

44

Yellow, RH Front Reflector

520000891

$13.38

44

Yellow, LH Front Reflector

520000892

$13.38

45

Red Rh Rear Reflector

520001239

Unavailable

45

Red, LH Rear Reflector

520001238

Unavailable

49

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

50

Was 412500100 Rope-Starter

219704403

Unavailable

51

Starter Grip

529000060

Unavailable

52

Horn

549011291

$35.35

62

Snow Guard

520001510

Unavailable

63

BRP Logo 48mm

516008738

$12.87

64

Tools Kit | Includes 1400 to 1400e

520001670

Unavailable

65

CE Decal | Model Europe

516006804

$9.94

69

Security Label, XS

516006914

Unavailable

70

White, Reflector

415037900

$19.20

71

Set Key, 16/21 mm

529000046

$14.49

64a

Wrench

520001499

Unavailable

64b

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

72

Washer

517124300

Unavailable

73

Pop Rivet 3/16”

293150101

$2.06
