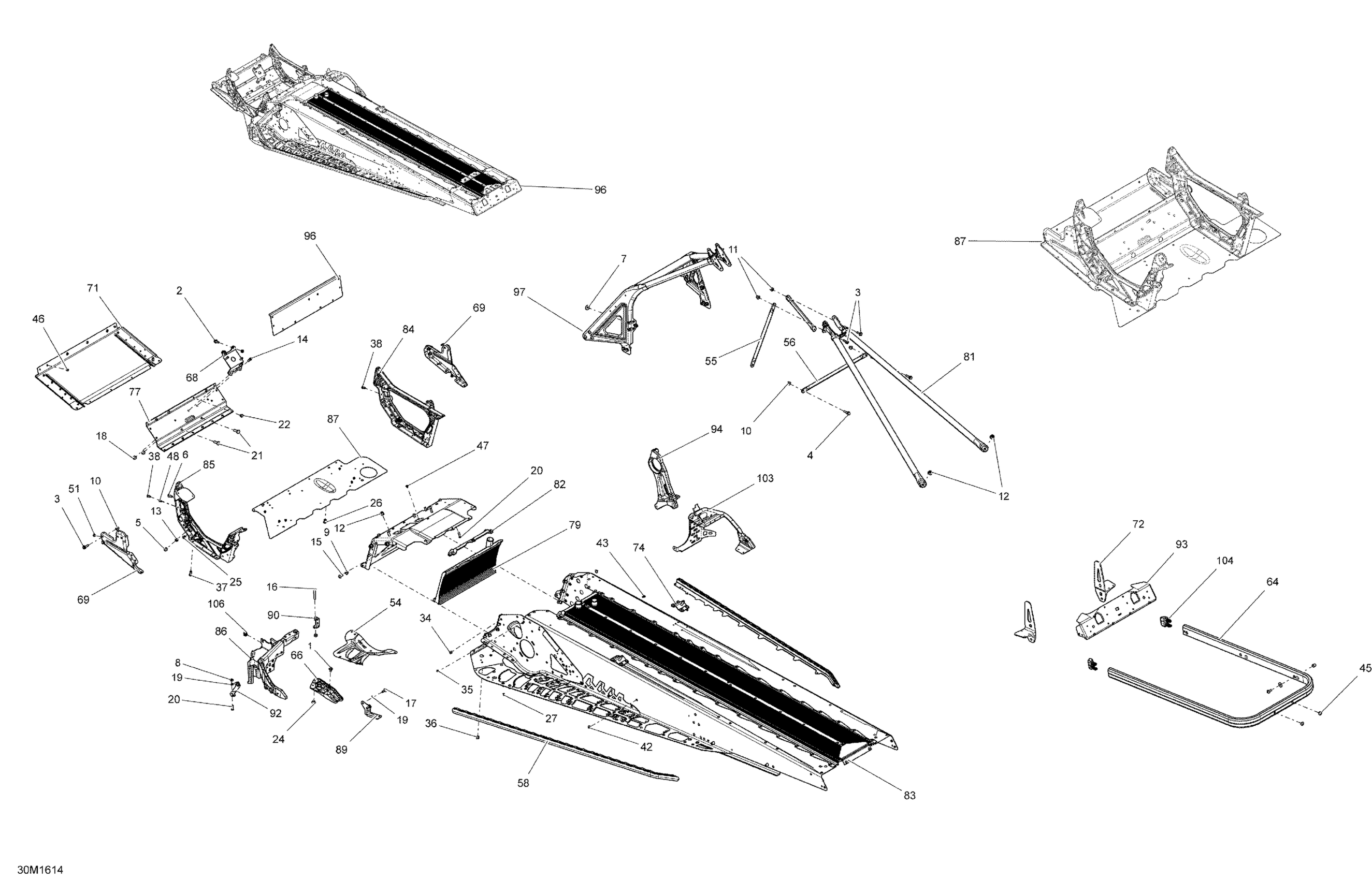

Ski-Doo TUNDRA - Xtreme, 2016 Frame Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

Unavailable

2

Hex. Flange Screw M6 X 16

207661644

Unavailable

3

Hex. Flange Screw M6 X 20

207662044

Unavailable

4

Hex. Flange Screw M6 X 25

207662544

Unavailable

5

Hex. Flange Screw M6 X 10

210261040

Unavailable

6

Hex. Flange Screw M6 X 16

210261650

$1.22

7

Flat Washer

224061201

Unavailable

8

Elastic Stop Nut M6

232561414

Unavailable

9

Hex. Flange Nut M6

233061414

Unavailable

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

11

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

12

Hex. Flange Elastic Nut M8

233281414

Unavailable

13

Flat Washer 6 mm

234061410

Unavailable

14

Socket Screw Head 1/4-20 X 5/8''

250000512

$6.26

15

Tork Screw M6 X 16

250000534

Unavailable

16

Torx Screw M8 X 55

250000535

Unavailable

17

Tork Screw M6 X 18

250000536

Unavailable

18

Elastic Hex. Flange Nut 1/4-20

250100140

$7.31

19

Flat Washer

250200039

Unavailable

20

Clinch Stud M6 X 20

250300027

$1.92

21

Clinch Stud

250300038

Unavailable

22

Hemlock Rivet, 6.5 mm

293150096

$3.17

24

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

26

Hemlock Rivet 6.5 mm

293150120

$7.23

27

Stavex Rivet

293150144

Unavailable

34

Henrob Rivet

293150146

Unavailable

35

Ornit Rivet 6,5 X 14.5

293150266

Unavailable

36

Hemlock Rivet, 6.4 mm

293150174

$6.43

37

Monobolt Rivet 6.4

293150182

$2.91

38

Monobolt Rivet, 4.8 mm

293150191

Unavailable

42

Black, Dart 8 mm

293730047

Unavailable

43

Full Moon Dart 5 mm

293730042

Unavailable

45

Black, Dart 10 mm

293730060

Unavailable

46

Pop Rivet 3/16"

390402200

$0.26

47

Pop Rivet 3/16"

390402400

Unavailable

48

Avex Rivet

390909100

$0.29

51

Avex Rivet

390909200

Unavailable

54

RH Reinforcement

518324874

Unavailable

54

LH Reinforcement

518324875

Unavailable

55

Upper Lateral Column Support

518325114

Unavailable

56

Center Column Support

518325115

Unavailable

58

RH ROLLER - Call your local BRP dealership

518325159

Unavailable

58

LH Roller | Includes 10bd to 10be

518325160

Unavailable

64

Black Rear Bumper, 154"

518326611

$123.05

66

RH Deflector, Black Polypropylene

518325782

Unavailable

66

LH Deflector, Black Polypropylene

518325783

Unavailable

68

MAG Engine Support | Includes 10a to 10a1

518325943

$26.12

69

RH Front Member

518325949

$18.43

69

LH Front Member

518325950

$17.66

71

Front Bottom Plate

518325951

$29.97

72

RH Slide Bracket

518325955

Unavailable

72

LH Slide Bracket

518325956

Unavailable

74

RH Rear Base

518325973

Unavailable

74

LH Rear Base | Includes 10v to 10x

518325974

Unavailable

77

Front Member

518326198

$59.97

79

Front Radiator | Includes 10b to 10b2

518326485

Unavailable

79

Front Radiator | Includes 10b to 10b2

518326485

Unavailable

81

Rear Member

518326559

Unavailable

82

Seal

518326656

Unavailable

83

Rear Radiator Ass'y, 154" | Includes 10bm to 10bn

518326692

$699.97

84

RH Member

518326795

Unavailable

85

LH Member

518326796

$210.74

86

LH Stirup

518326820

Unavailable

87

Module E TUNDRA Xtreme | Includes 10av to 10w

518326927

$708.43

89

Support

518326960

Unavailable

90

U-Attach

518326961

Unavailable

92

Attach | Includes 10n to 10p

518326986

Unavailable

93

Rear Cap

518327105

Unavailable

94

Driven Pulley Support This part replaces 518327133.

518327460

$102.28

94

Driven Pulley Support This part replaces 518327133.

518327460

$102.28

96

FRAME TUNDRA XTREME NOIR - Call your local BRP dealership | Includes 10 to 10ce

415130261

Unavailable

97

Front Member, S Module

518328306

$226.12

103

RH Stirup | Includes 10aa to 10ab

518328938

Unavailable

104

Black RH Cap

520000965

$8.97

104

Black LH Cap

520000964

$8.97

106

Panel Nut M5 X 0.8

250000958

Unavailable
