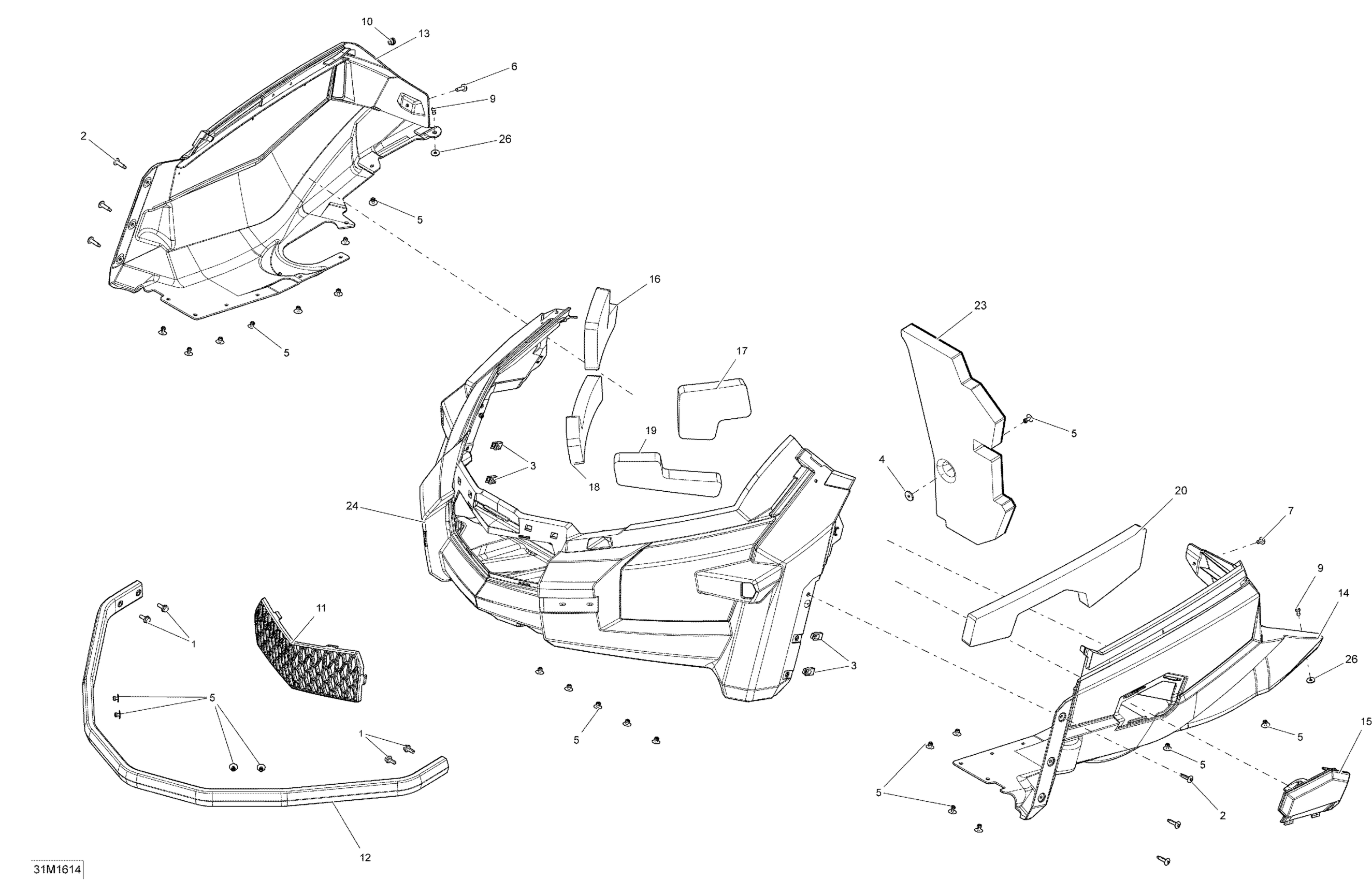

Ski-Doo TUNDRA - Xtreme, 2016 Bottom Pan Diagram

#

Description

Price

1

Hex. Flange Screw M6 X 16

207661644

Unavailable

2

Torx Screw M6 X 25

250000618

Unavailable

3

Panel Nut M6 X 1.0

250100198

Unavailable

4

Washer

250200016

Unavailable

5

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

6

Torx Truss Screw M6 X 20

250000705

Unavailable

7

Torx Truss Screw M6 X 12

250000767

$1.66

10

Insert

293450275

Unavailable

11

Botton Pan Grille

502006887

Unavailable

12

Black Front Bumper

502007121

Unavailable

13

Black RH Bottom Pan

502006965

Unavailable

14

Black LH Bottom Pan

502006966

Unavailable

15

Black Bottom Pan Door

502006970

Unavailable

16

RH Upper Bottom Pan Foam

502007204

Unavailable

17

LH Upper Bottom Pan Foam

502007205

Unavailable

18

RH Lower Bottom Pan Foam

502007206

Unavailable

19

LH Lower Bottom Pan Foam

502007207

Unavailable

20

LH Bottom Pan Foam

502007208

Unavailable

23

Foam On Plate

502007209

Unavailable

24

Black, Bottom Pan

502007361

Unavailable

26

Washer

517124300

Unavailable
