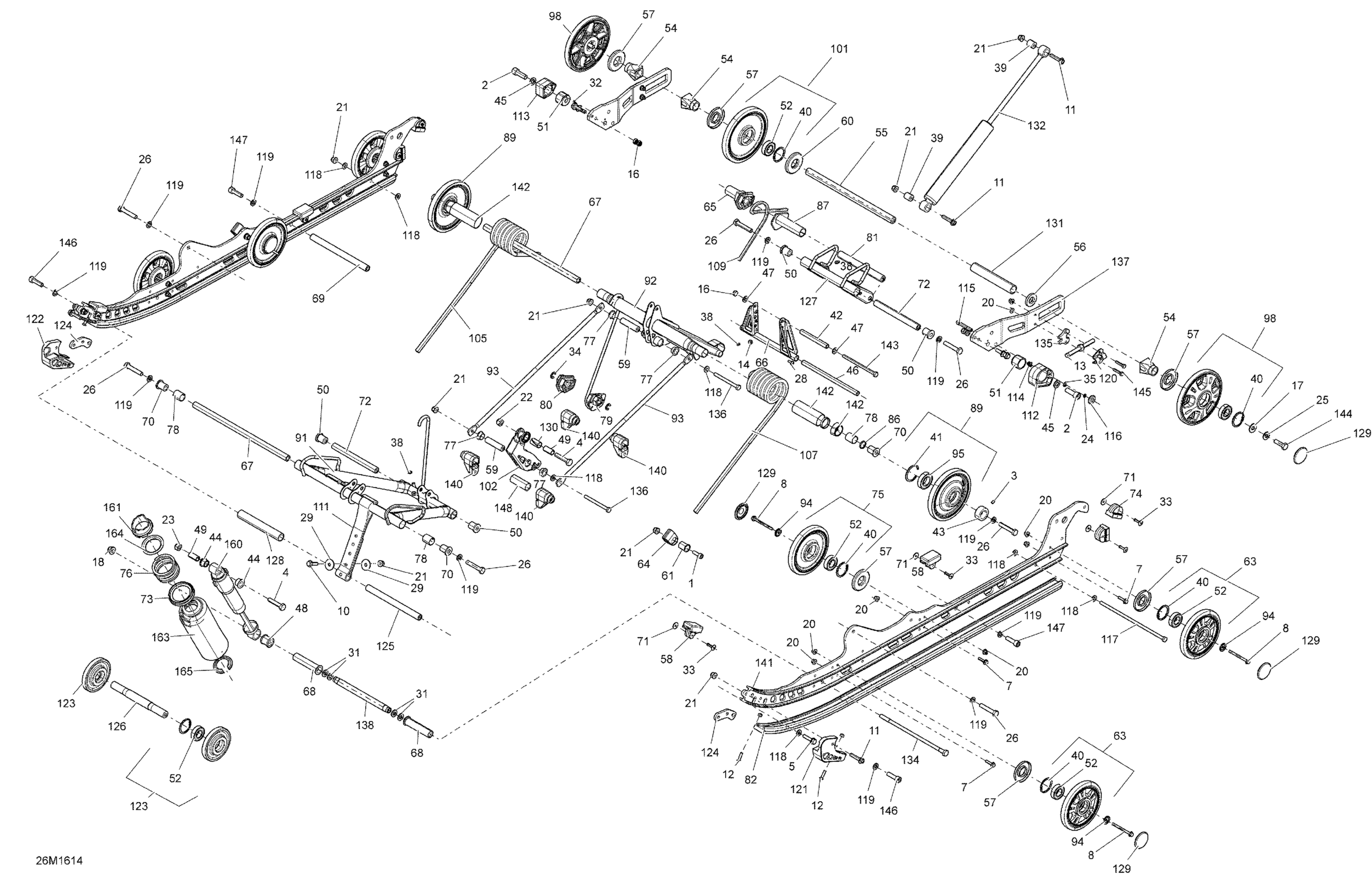

Ski-Doo TUNDRA - Xtreme, 2016 Rear Suspension Diagram

#

Description
Price

1

Socket Screw M8 X 25

205082554

$1.74

2

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.91

3

Socket Set Screw M6 X 8

206260844

$1.25

4

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

5

Hex. Flange Screw M8 X 35

250000986

$1.74

7

Hex. Flange Screw M6 X 25

207662556

$3.61

8

Hex. Flange Screw M6 X 70

207667056

$3.61

9

Hex. Flange Screw M8 X 25

207682534

$1.06

10

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

11

Hex. Flange Screw M8 X 40

207684044

$1.25

12

Phillips Screw M6 X 25

208562531

$1.74

13

Hex Screw M10 x 100

230100054

$5.29

14

Hexagonal Nut M6

232061404

$0.32

15

Elastic Stop Nut M6

232561434

$1.55

16

Hex. Elastic Stop Nut M8

232581414

$0.47

17

Washer

503191910

$2.25

18

Flange Elastic Nut M10

233201466

$2.63

20

Hex. Flange Elastic Nut M6

233261466

$1.66

21

Elastic Flange Nut M8

233281466

$0.83

22

Elastic Locking Nut M10 X 1.5

233601416

$1.68

23

Elastic Locking Nut M10

233601466

$1.74

24

Flat Washer M5

234051410

$0.44

25

Conical Spring Washer 10 mm

234201474

$1.39

26

Hex. Screw S.Grip M10 X 55

250000605

$6.18

28

Torx Screw M5 X 14

250000742

$1.20

29

Flat Washer 8 mm

250200128

$1.74

31

Flat Washer

250200143

$2.63

32

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

33

Pop Rivet 3/16"

293150013

$1.11

34

E-Circlip

293370013

$0.62

35

Circlip

293370068

$0.92

36

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

37

Loctite 243, 10 ml

293800060

$20.77

38

Grease Fitting

408200700

$2.80

39

Bushing

414936000

$11.55

40

Retaining Ring

415129371

$8.92

41

Retaining Ring

415129780

$13.88

42

Upper Axle, Pivot Arm

503144300

$11.98

43

Retaining Ring

503168800

$12.65

44

Urethane Bushing

503189117

$6.88

45

Washer | 7415/7416. 7417/7418.

503189148

$2.72

46

Pivot Arm Axle

503189156

$20.74

47

Washer

503189157

$3.20

48

Bushing

503189271

$10.46

49

Bushing | Includes 240d to 240d1

503189282

$4.18

50

Bushing

503189324

$11.17

51

Block Guide

503189488

$37.66

52

Ball Bearing | Package-STD

503190396

$7.12

54

Rear Wheel Spacer

503190428

$6.06

55

Rear Axle

503190429

$59.97

56

Washer

503190432

$12.52

57

Labyrinth Seal

503190434

$4.29

58

Rubber Stopper

503190576

$10.23

59

Axle Bar (Long)

503190643

$15.35

60

Labyrinth Seal

503190682

$5.85

61

Spring Support Kit

861805547

$8.14

63

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

503191152

$46.12

64

Spring Support Kit

861805547

$8.14

65

RH Spring Cam

503191190

$13.78

66

Pivot Arm | Includes 3000j to 3000j3

503191209

$118.43

67

Upper Shaft

503191215

$36.12

68

Center Bushing

503191259

$8.97

69

Axle Strap

503191260

$29.20

70

Bushing

503191262

$13.60

71

Washer

503191273

$1.06

72

Lower Shaft

503191279

$27.66

73

Spring Spacer

503191281

$7.66

74

Rubber Stopper

503191291

$18.43

75

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$46.12

76

Black, Spring | Except 600 ACE

503191343

$59.97

77

Swivel Bushing

503191555

$5.71

78

Extended Bushing

503191556

$5.71

79

LH Cam Adjuster

503191565

$13.95

80

RH Cam Adjuster

503191566

$13.95

81

Cam Axle

503191608

$15.03

82

Black Slider, 154"

503192618

$33.05

86

Washer

503191651

$7.49

87

LH Spring Cam

503191668

$10.18

89

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

503191738

$46.12

91

Front Arm | Includes 2000a to 2000b

503191752

$359.97

92

Rear Arm | Includes 3000a to 3000a7

503191762

$96.89

93

Link Rod

503191765

$17.66

94

Wheel Cup M6

503191820

$4.66

95

Ball Bearing

503193548

$16.89

98

Deep Black, Wheel Ass'y, 165 mm | Includes 600 to 600b

503192128

$49.97

101

Black, Wheel Ass'y, 165 mm | Includes 670 to 670b

503192140

$49.97

102

Rocker

503192211

$78.43

105

Black, RH Spring Square

503193159

$77.66

107

Black, LH Spring Square

503193158

$77.66

109

Spring

503194624

$29.97

111

Stopper Strap

503192360

$19.97

112

LH Block

503192426

$12.69

113

RH Block

503192427

$12.69

114

Compression Spring

503192436

$37.66

115

Rode

503192437

$5.85

116

Handle

503192438

$4.66

117

Bolt M8 X 248mm

503192440

$29.97

118

Washer

503192494

$3.11

120

Tensioner

503192583

$5.85

121

LH Protector

503192609

$26.89

122

RH Protector

503192610

$26.89

123

Black, Wheel Ass'y, 100 mm

503192611

$32.28

124

Plate

503192612

$11.45

125

Axle Strap

503192613

$34.58

126

Front Wheel Axle

503192644

$146.12

127

Runner Pivot | Includes 100c to 100c3

503192647

$55.35

128

Spacer

503196943

$7.58

129

Black, Wheel Cap

503192771

$2.28

130

Bushing

503193037

$15.35

131

Spacer

503193052

$15.35

132

Rear Shock HPG SEAL

503193192

$238.43

134

Bolt M10 X 251MM

503193227

$16.12

135

Spacer

503193250

$13.95

136

Screw M8 X 90

503193372

$4.28

137

Black, RH Pivot Support Long

503195759

$83.82

137

Black, LH Pivot Support Long

503195760

$83.82

138

Pivot Axle

503193435

$38.43

140

Casted Support

503193894

$12.75

141

RAIL_SUSPENSION 154 B-370 - Call your local BRP dealership

503193956

Unavailable

142

Bushing

572080700

$15.26

143

Bolt M8, Short

732601197

$15.06

144

Hex Screw With Nilon Patch, M10 X 35

250000817

$3.61

145

Hex. Cap Screw M6 X 30

207063054

$4.41

146

Socket Head Screw M10 X 35

205503554

$6.18

147

Socket Head Screw M10 X 35

205503554

$6.18

148

Bushing

503191552

$5.71

160

Center Shock

503192991

$238.43

161

Adjustment Cam

505073625

$12.18

163

Black, Spring

503192279

$66.89

164

Spring Guide

503191872

$2.18

165

Spring Stopper

503194270

$16.89
