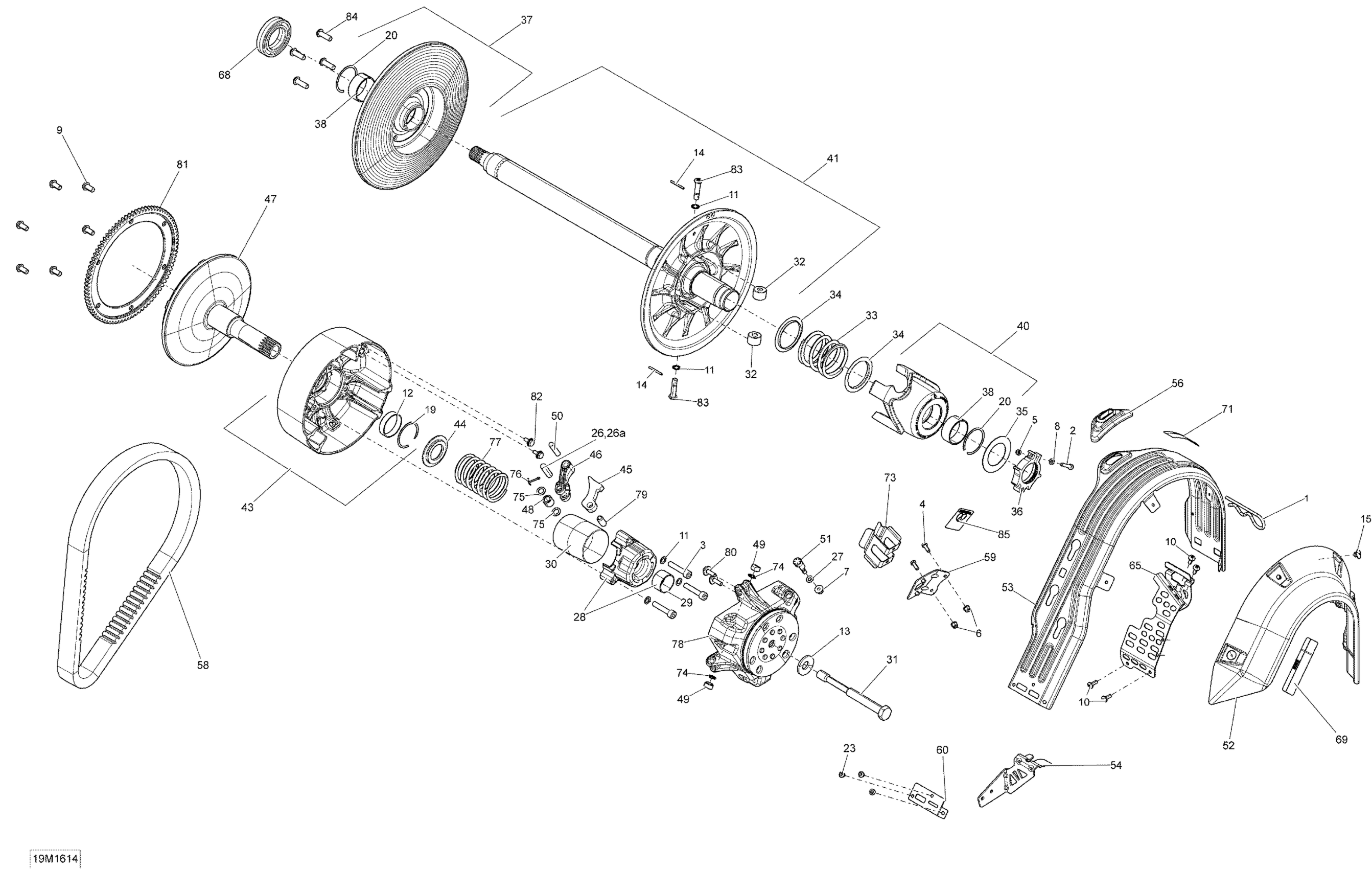

Ski-Doo TUNDRA - Xtreme, 2016 Pulley System Diagram

#

Description
Price

1

Hair Pin

114045200

Unavailable

2

Socket Screw M5 X 25

205052544

$1.34

3

Socket Head Screw M8 X 1.25 X 40

205084044

$2.80

4

Hex. Screw M5 X 14

207151444

Unavailable

5

Elastic Stop Nut M5

232551414

Unavailable

6

Flange Elastic Nut M5

233251434

$1.66

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

8

Flat Washer M5

234051410

Unavailable

9

Hex. Flange Screw M8 X 1.25 X 16

250000533

$2.37

10

Torx Screw M5 X 14

250000742

$1.20

11

Lock Washer 8 mm

250200009

Unavailable

12

Bushing

417222758

$20.74

13

Conical Spring Washer M14

250200144

Unavailable

14

Spring Pin M3 X 30

250400063

$1.74

15

Pop Rivet 3/16"

293150103

Unavailable

19

Circlip

293370037

$3.02

20

Circlip

293370049

Unavailable

23

Avex Rivet

390909200

Unavailable

26

Pin

417004308

Unavailable

26

Threaded Pin

417222477

Unavailable

26b

Socket Set Screw M6 X 1.0 X 16

250000410

Unavailable

27

Washer

417005600

$3.86

28

Spring Cover Ass'y | Includes 10r to 10t

417007500

$46.12

29

Bushing

417009204

$16.12

30

Guard

417009205

$16.89

31

Drive Pulley Bolt

417120000

$63.82

32

Pulley Roller

417127016

Unavailable

33

Black, Return Spring

417127039

Unavailable

34

Swivel Abutment

417127116

Unavailable

35

Washer

417127155

Unavailable

36

Calibration Ass'y

415129604

Unavailable

37

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

Unavailable

38

Bushing ID 41mm OD 45mm X 19mm L

417127318

Unavailable

40

Cam Ass'y | Includes 100c to 100c2

417127376

$134.99

40

Cam Ass'y | Includes 100c to 100c3

417127325

$164.99

41

Fix Flange Ass'y | Includes 100a to 100a4

417127389

Unavailable

43

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$198.43

44

Spring Seat

417222312

$8.28

45

Ramp 412

417222515

Unavailable

45

Ramp 417

417222552

Unavailable

46

Lever | Includes 10f to 10g

417222671

$32.28

47

Fixed Flange Ass'y

417222937

$226.12

48

Roller

417222947

$19.97

49

Slider Shoe

417222992

Unavailable

49

Slider Shoe

417223271

$8.59

50

Lever Axle

417223164

$4.25

51

Calibration Screw

417223501

$27.66

52

Side Protector

417300356

$13.25

53

Belt Guard

417300382

$85.35

54

Front Belt Guard Bracket

417300374

Unavailable

56

Guide

417300381

$9.23

58

Drive Belt

417300551

Unavailable

59

Plate

417300406

Unavailable

60

Reinforcement

417300380

$5.17

65

BELT GUARD BRACKET - Call your local BRP dealership

417300448

$29.20

68

Ball Bearing

504152574

Unavailable

69

Decal English

516005503

Unavailable

71

Safety Belt Guard Decal

516005509

Unavailable

73

Bracket

517281905

Unavailable

74

O-Ring

732401030

$0.95

75

Stopper Washer

417004302

$15.99

76

Cotter Pin

250400060

$1.60

77

Spring, Blue/green

414817700

$14.75

77

Spring (Red/Orange)

415015200

Unavailable

78

Governor Cup Ass'y

417223669

$456.89

79

Spring Pin M10 X 22

250400050

$2.38

80

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$3.26

81

Ring Gear_Starter This part replaces 417223738.

417225070

Unavailable

82

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$3.86

83

Pivot Stud

417127294

Unavailable

84

Button Head Torx Screw M8 X 25 S.Gr

250000757

Unavailable

85

Belt Gard Decal

516007493

$9.62
