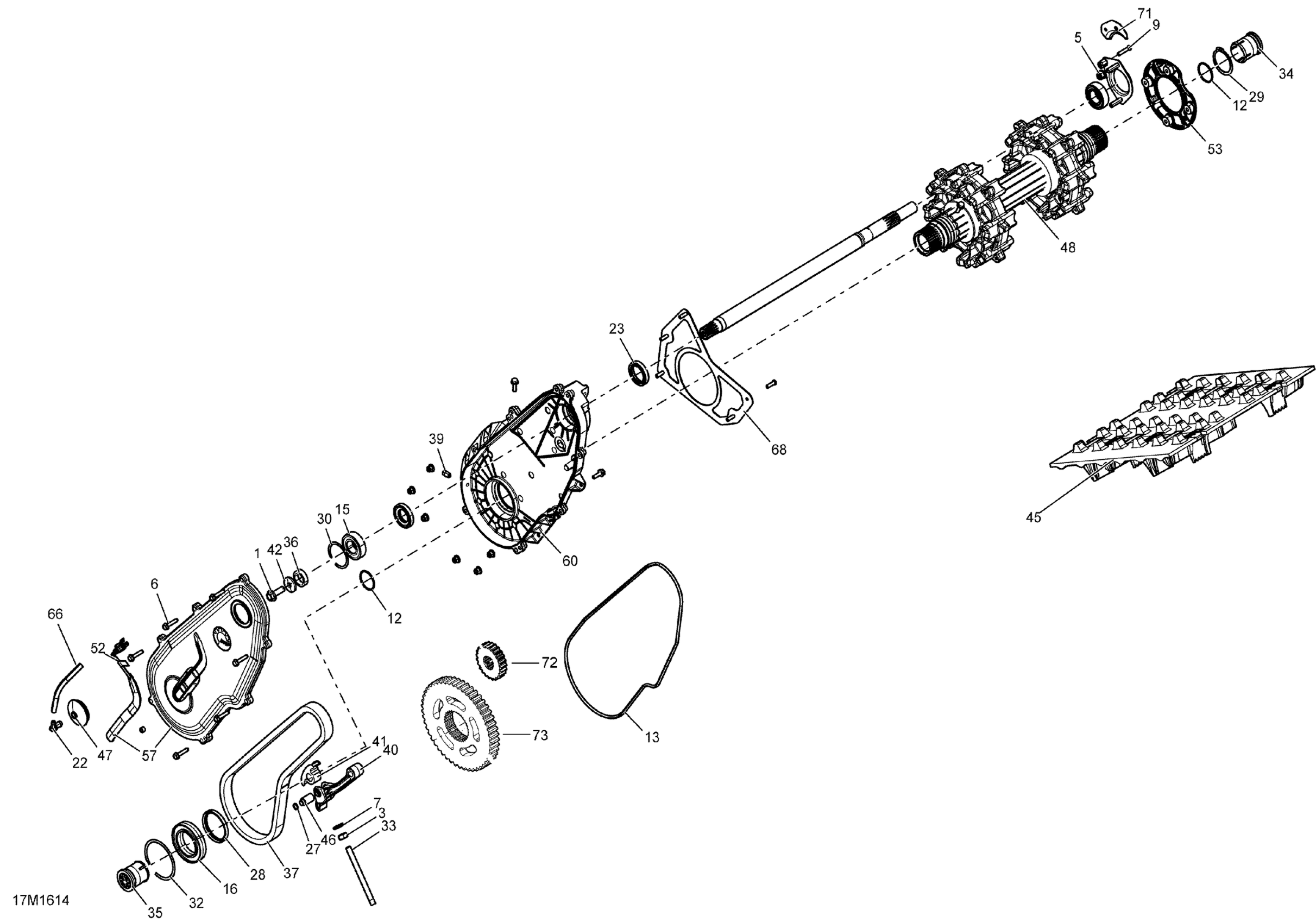

Ski-Doo TUNDRA - Xtreme, 2016 Drive System Diagram

#

Description
Price

1

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

Unavailable

3

Hex. Nut M10 X 1.5

232006414

$1.11

5

Hex. Flange Elastic Nut M8

233281414

Unavailable

6

Hex. Flange Screw M6 X 30 | International

210263050

$1.63

7

Bonded Washer

250200100

$1.74

9

Clinch Stud M6 X 30

250300031

$1.92

12

O-Ring

293300122

$2.06

13

Tight Seal

293300130

$7.31

15

Ball Bearing

293350115

Unavailable

16

Ball Bearing

293350059

Unavailable

22

Male Connector

414580700

Unavailable

23

Oil Seal

293200158

Unavailable

27

Circlip

504152282

$3.11

28

Oil Seal

293200159

Unavailable

29

Circlip

504152572

Unavailable

30

Circlip

504152576

Unavailable

32

Circlip

504152582

Unavailable

33

Adjustment Screw

504152602

$9.62

34

Magnetic Cap

504152619

$23.05

36

Shim

504152628

$8.40

37

Drive Chain, 104 Links

504152629

Unavailable

39

Magnetic Plug 1/8 - 27 NPTF

504152854

Unavailable

40

Tensioner chain

504153429

$13.77

41

Slider Chain

504152739

$67.66

42

Spring Washer M10

504152784

Unavailable

45

Track Ass'y 16" X 154" X 2.50" | Includes 3200 to 3200b

504153396

Unavailable

46

Tensioner Axle

504152841

$14.65

47

Cap

504152860

Unavailable

48

Drive Axle Ass'y

504154054

Unavailable

52

Rotation Sensor

504152896

$35.35

53

Retaining Ring

504153886

Unavailable

57

Casting Cover

504153151

Unavailable

57

Chaincase Cover Ass'y | Includes 1700 to 1700c

504153410

Unavailable

60

Chaincase | Includes 10 to 10a

504153405

Unavailable

66

Polyurethane Hose 10000Mm Long

219704410

Unavailable

68

Plate | Not Shown

518325816

$73.82

71

Bearing Housing Ass'y | Includes 2500 to 2500a

504153418

Unavailable

72

Sprocket, 19 Teeth

504153783

Unavailable

73

Kit Sprocket This part replaces 504152581.

861805539

Unavailable
