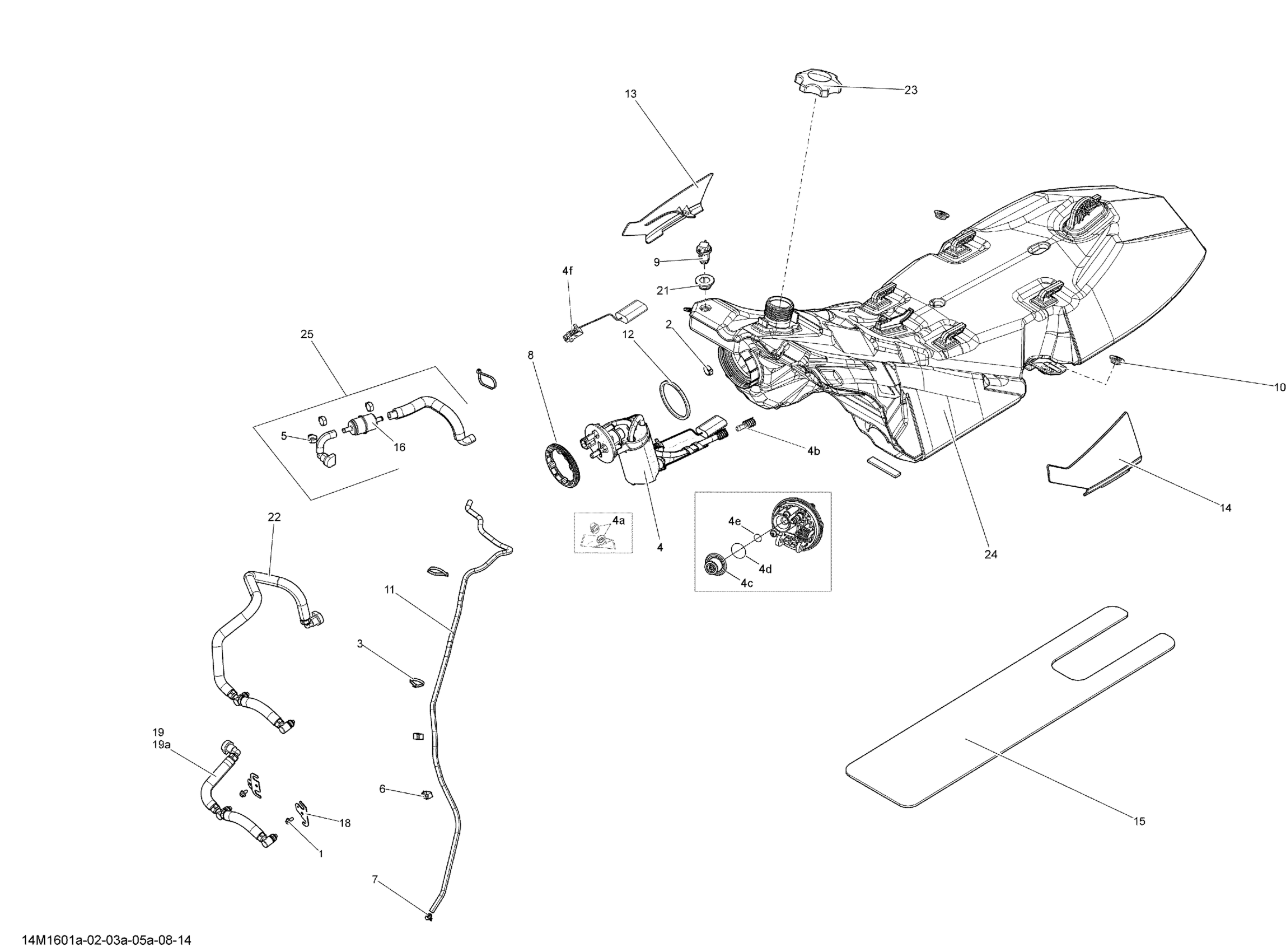

Ski-Doo TUNDRA - Xtreme, 2016 Fuel System Diagram

#

Description
Price

1

Hex. Flange Screw M5 X 10

207551044

Unavailable

2

Crimp Clamp

293650053

Unavailable

3

Tie Wrap 368 mm

293750008

$0.85

3

Tie-Rap 180 mm

414115200

$0.09

4

PUMP FUEL | Includes 300 to 300f This part replaces 513033837.

513034258

Unavailable

4a

Fuel Filter

415129451

$23.05

4b

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$9.63

4c

Regulator

415129821

Unavailable

4d

O-Ring

415129822

Unavailable

4e

O-Ring

415129823

Unavailable

4f

Fuel Level Sensor

415130108

$140.74

5

Oetiker Clamp

293650125

$2.69

6

Clip

414227300

$1.45

7

Spring Clamp

414554800

$0.83

8

Ring

513033180

$17.66

9

Check Valve

513033842

$33.82

10

Shoulder Bushing

513033326

$12.62

11

Polyurethane Hose 10000Mm Long

219704410

Unavailable

12

Gasket

513033334

$23.05

13

RH Cap

513033418

Unavailable

14

LH Cap

513033419

Unavailable

15

Insulating Foam

513033588

$12.62

16

Fuel Filter

513034047

Unavailable

18

Bracket

513033542

$12.62

19

Hose Ass'y | Includes 22 to 23

513033594

$81.51

19a

Locking Clip

513033135

$5.11

21

Grommet

513033596

$18.43

22

Fuel Hose Ass'y

513033648

Unavailable

23

Fuel Tank Cap 91 Octane

513033722

$23.05

24

Fuel Tank

513033667

$313.82

25

Hose Ass'y | Includes 500 to 500b This part replaces 513033846.

513034137

$79.97
