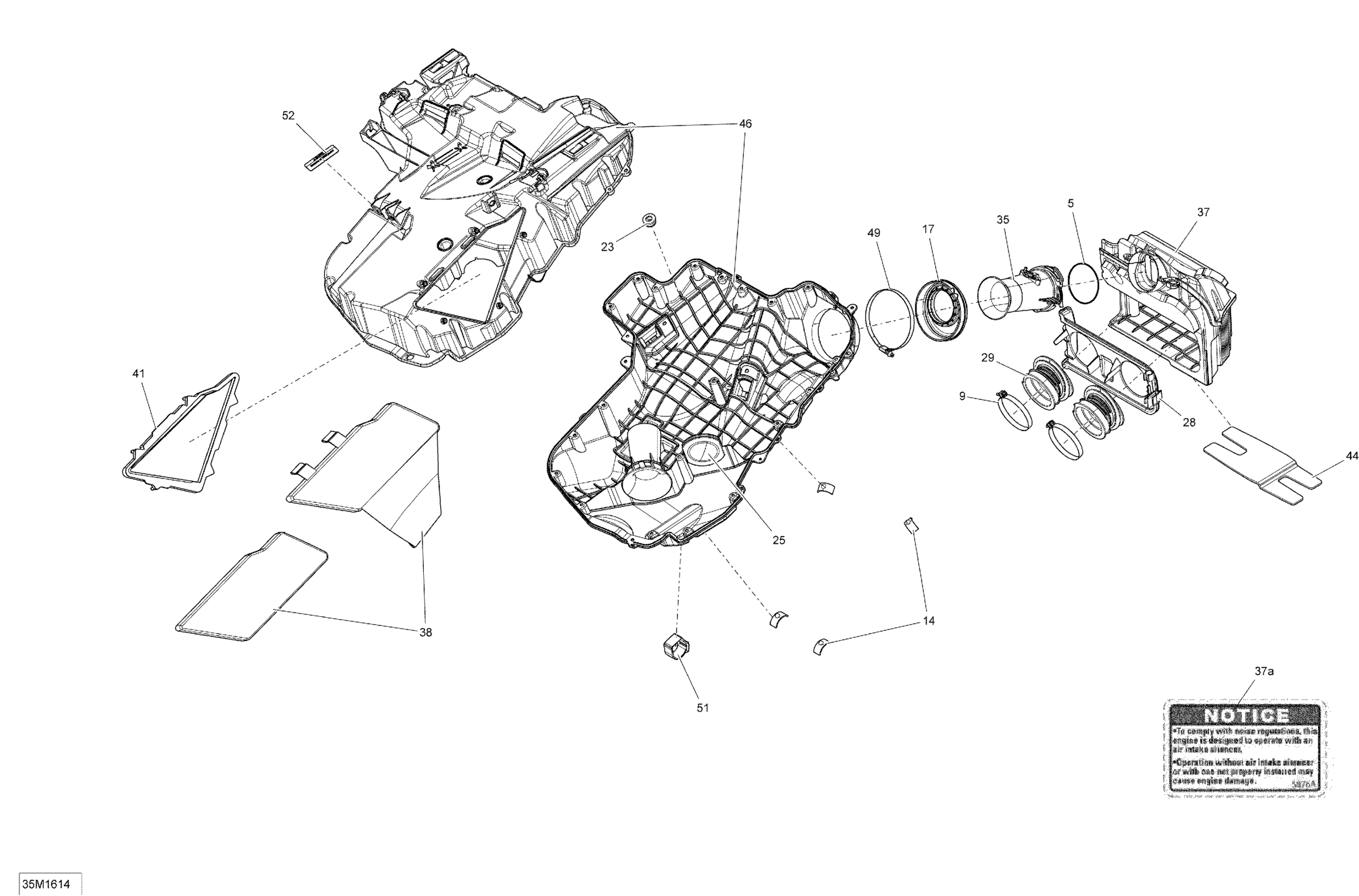

Ski-Doo TUNDRA - Xtreme, 2016 Air Intake System Diagram

#

Description
Price

5

O-Ring

293300115

$2.63

9

Gemi Clamp

508000346

$9.31

14

Stopper

508000537

$7.35

17

Boot

508000548

Unavailable

23

Grommet

508000574

$7.35

25

Cap

508000590

Unavailable

28

Plate Adapter

508000613

Unavailable

29

Air Intake Adapter

508000614

Unavailable

35

Flute

508000662

Unavailable

37

Primary Chamber Ass'y | Includes 100 to 100a

508000660

Unavailable

37a

Notice Decal, Air Intake Silencer

516005876

$4.12

38

Filter

508000698

Unavailable

41

Air Filter

508000546

Unavailable

41

Air Filter | Includes 10c to 10d

508000700

Unavailable

44

Insulated Foam

508000739

$8.38

46

Secondary Chamber Ass'y | Includes 10 to 10d

508000780

Unavailable

49

Norma Gear Clamp

514052983

$11.43

51

Velcro Strip

508000820

$7.35

52

Caution Decal Hot Parts

516005280

Unavailable
