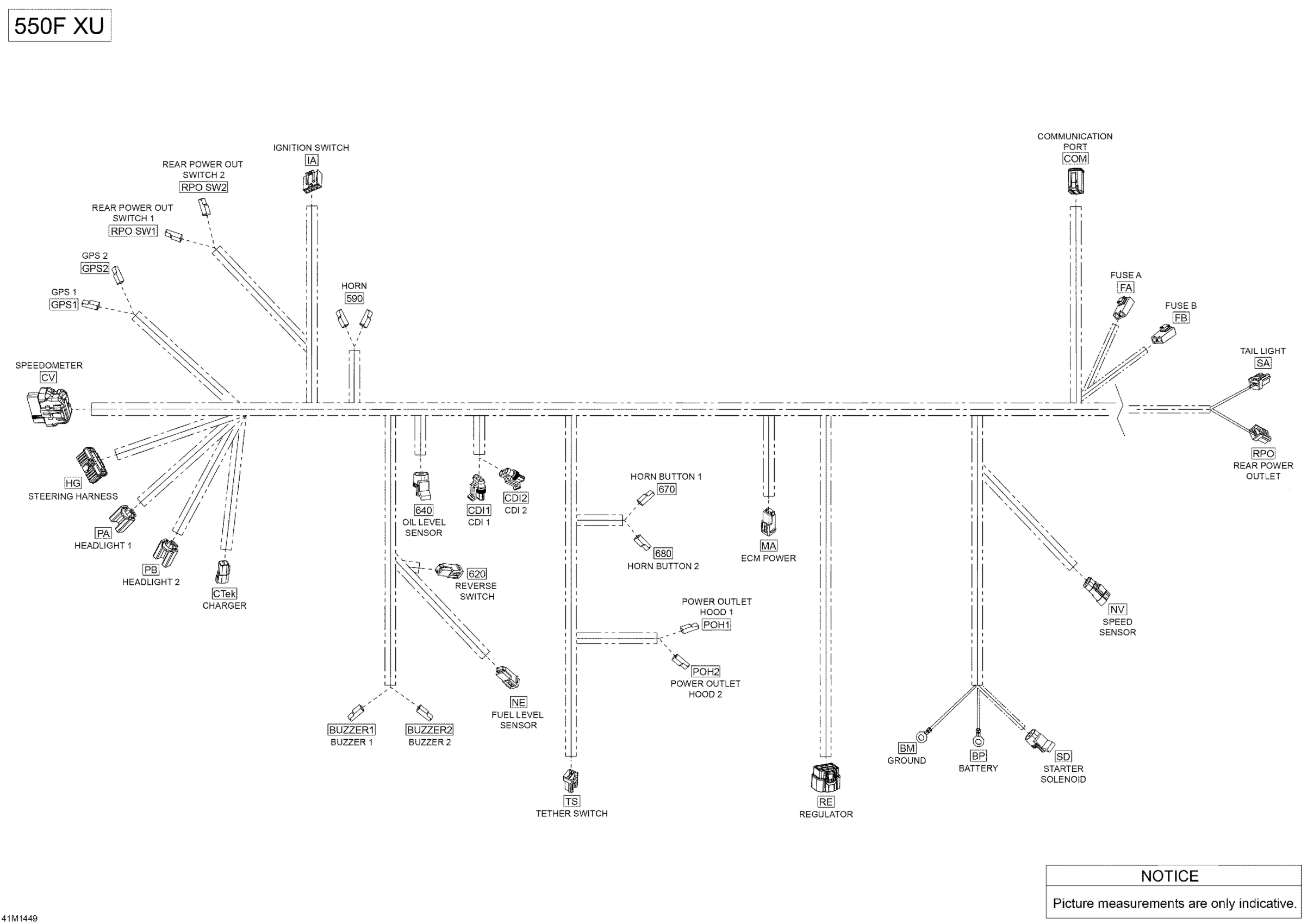

Ski-Doo TUNDRA WT 550F RER XU, 2014 Electrical Harness Diagram

#

Description
Price

1

Main Harness

515177505

Unavailable

2

Tubing 6 Mm 3000Mm Long

219704425

$13.14

2

Was 409901700 Tubing (9 mm)

219704399

$79.97

2

Tubing 10 MM 1000MM Long

219704407

$2.20

2

Was 409901800 Tubing (13 mm)

219704400

$9.40

2

Tubing 16 Mm 1000Mm Long

219704408

$6.23

2

Was 409901600 Tubing 19mm

219704398

$89.97

2

Not Available As Spare Part - Friction Washer

Unavailable

2

Tubing 25 MM 1000MM Long

219704402

$12.69

3

Not Available As Spare Part - Friction Washer

Unavailable

590

Female Housing, 2 Circuits

515175658

$15.35

590

Female Terminal

515175231

$4.12

620

Female Terminal Housing, 2 Circuits

515176296

$5.11

620

Female Terminal

515175231

$4.12

640

Male Connector, 2 Circuits

278001113

$12.65

640

Female Terminal

278001114

$2.55

670

Female Terminal Housing, 1 Circuit

409010400

$7.48

670

Female Terminal

409010100

$5.46

680

Female Terminal Housing, 1 Circuit

409010400

$7.48

680

Female Terminal

409010100

$5.46

BM

Open Barrel

278000992

$1.79

BP

Open Barrel

278000992

$1.79

BUZZER1

Female Terminal Housing, 1 Circuit

409010400

$7.48

BUZZER1

Female Terminal

409010100

$5.46

BUZZER2

Female Terminal Housing, 1 Circuit

409010400

$7.48

BUZZER2

Female Terminal

409010100

$5.46

CDI1

Female Housing, 4 Circuits

409209700

$12.97

CDI1

Female Terminal

278001014

$2.72

CDI1

Wire Seal

278001013

$2.72

CDI2

Female Housing, 3 Circuits

409209600

$35.35

CDI2

Female Terminal

278001014

$2.72

CDI2

Wire Seal

278001013

$2.72

COM

Male Housing, 6 Circuits

515175673

$13.05

COM

Male Wedge, 6 Circuits

515175678

$5.11

COM

Female Terminal

278000632

$1.69

COM

Sealing Cap

293000052

$2.55

CTek

Mâle Terminal Housing, 2 Circuits

278001674

$29.97

CTek

Male Lock, 2 Circuits

278001672

$3.02

CTek

Male Terminal

515175568

$7.48

CV

Female Housing, 24 Circuits

515175801

$9.00

CV

Retainer Block

515175802

$10.66

CV

Wire Seal

515175803

$2.41

CV

BLOCK - Call your local BRP dealership

515175804

Unavailable

CV

LOCK - Call your local BRP dealership

515175805

Unavailable

CV

Female Terminal

515175806

$0.81

CV

Plug

515175812

$1.70

CV

Female Housing

710000399

$14.02

FA

Female Terminal

409004200

$4.42

FA

Fuse Holder

409004000

$7.00

FA

Clip

710000992

$4.00

FA

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

FB

Female Terminal

409004200

$4.42

FB

Fuse Holder

409004000

$7.00

FB

Clip

710000992

$4.00

FB

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

GPS1

Female Terminal Housing, 1 Circuit

409010400

$7.48

GPS1

Female Terminal

409010100

$5.46

GPS2

Female Terminal Housing, 1 Circuit

409010400

$7.48

GPS2

Female Terminal

409010100

$5.46

HG

Female Terminal Housing, 13 Circuits

515175350

$12.88

HG

Female Terminal

515175231

$4.12

HG

Female Terminal

515175282

$6.43

IA

Female Terminal Housing, 4 Circuits

710000272

$10.14

IA

Lock, 4 Circuits

710000273

$8.98

IA

Female Terminal

710000274

$8.98

MA

Female Terminal Housing, 2 Circuits

515175670

$7.85

MA

Female Lock, 2 Circuits

515175675

$4.42

MA

Female Terminal

278000632

$1.69

NE

Male Terminal Housing, 2 Circuits

515175654

$7.48

NE

Male Terminal

515175232

$1.49

NV

Housing

710000568

$10.83

NV

Male Terminal

515176164

$6.43

NV

Clip

710000992

$4.00

NV

Wire Seal

515176621

$7.00

PA

Female Housing

515176908

$12.05

PA

Terminal

515176909

$2.12

PB

Female Housing

515176908

$12.05

PB

Terminal

515176909

$2.12

POH1

Female Terminal Housing, 1 Circuit

409010400

$7.48

POH1

Female Terminal

409010100

$5.46

POH2

Female Terminal Housing, 1 Circuit

409010400

$7.48

POH2

Female Terminal

409010100

$5.46

RE

Connector

515176530

$29.97

RE

Terminal

515176531

$10.99

RE

Seal

515176594

$6.43

RE

Lock

515176681

$18.43

RPO

Male Housing, 3 Circuits

515175494

$15.35

RPO

Male Terminal

515175232

$1.49

RPO SW1

Female Terminal Housing, 1 Circuit

409010400

$7.48

RPO SW1

Female Terminal

409010100

$5.46

RPO SW2

Female Terminal Housing, 1 Circuit

409010400

$7.48

RPO SW2

Female Terminal

409010100

$5.46

SA

Female Housing, 3 Circuits

515175495

$15.35

SA

Female Terminal

515175231

$4.12

SD

Male Connector, 2 Circuits

278001113

$12.65

SD

Female Terminal

278001114

$2.55

TS

Female Terminal Housing, 2 Circuits

515176296

$5.11

TS

Female Terminal

515175231

$4.12
