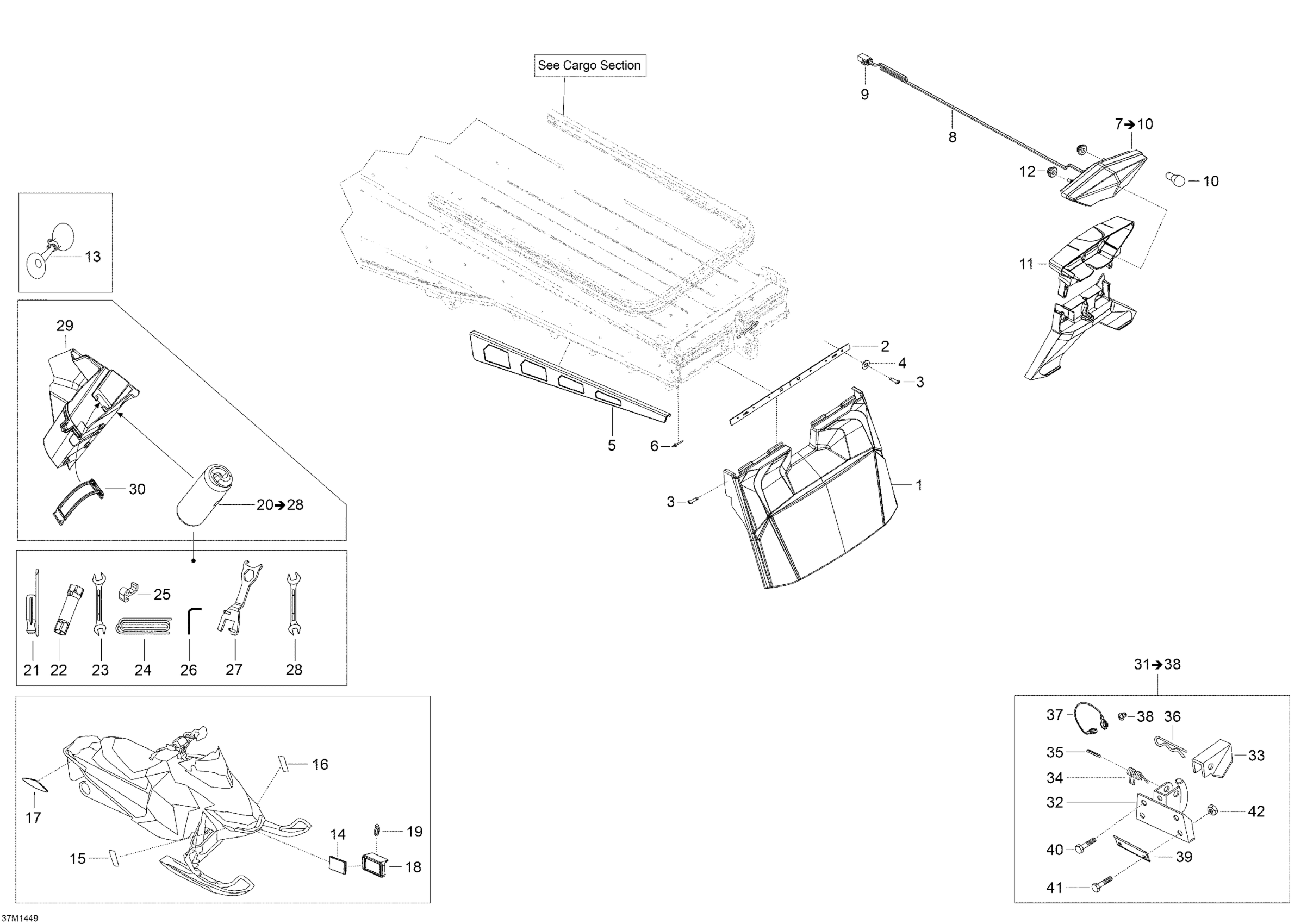

Ski-Doo TUNDRA WT 550F RER XU, 2014 Utilities Diagram

#

Description
Price

1

Snow Guard

520001411

$109.99

2

Plate

520001021

$34.58

3

Forming Screw M5 x 16

250000676

$0.83

4

Washer M5

250200025

$0.61

5

RH Protector

520000693

$53.99

5

LH Protector

520000694

$53.99

6

Rivet Hucklok

293150163

$2.82

7

Rear Light | Includes 200 to 200a

520000848

$96.12

8

Rear Wiring Harness

520000849

$50.74

9

Male Housing, 3 Circuits

515175494

$15.35

10

Bulb

520000758

$7.49

11

Rear Light Cover

511000764

$36.12

12

Stopper Rubber

705014429

$6.09

13

Horn

549011291

$35.35

14

White Reflector | Model- EUROPE

M21118

Unavailable

15

Yellow, RH Reflector

520001600

$31.51

16

Yellow, LH Reflector

520001601

$31.51

17

Amber, Lateral Reflector

705002423

$13.28

18

Deep Black, Reflector Support

520000871

$5.29

19

Tie Rap 2.4x200 | Model- EUROPE

M27120

Unavailable

20

Tool Kit | Includes 20 To 28

529000065

$57.99

21

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

22

Set Key, 16/21 mm

529000046

$14.49

23

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

24

Was 412500100 Rope-Starter

219704403

$10.15

25

Starter Grip

529000060

$11.40

26

Spacing Tool

520001142

$10.99

27

WRENCH SUSPENSION - Call your local BRP dealership

520000988

Unavailable

28

Wrench

M34017

Unavailable

29

Tool Kit Rack

520000894

$14.99

30

Latch

520000528

$6.60

31

Hitch Ass'y | Includes 3600 to 3600f

520001774

$61.99

32

Not Available As Spare Part - Friction Washer

Unavailable

33

LOCKING PLATE - Call your local BRP dealership | Model- EUROPE

520001041

Unavailable

34

SPRING - Call your local BRP dealership | Model- EUROPE This part replaces M545693.

545693

Unavailable

35

Pin

41012

$5.22

36

Hair pin

41029

$4.28

37

RETAINER CABLE - Call your local BRP dealership | Model- EUROPE

M5446839

Unavailable

38

Avex Rivet

390909100

$0.29

39

Plate

520000727

$33.82

40

Carriage Bolt, M8 X 25 | XXC

207782544

$1.31

41

Bolt Carriage M8 X 40

207784044

$1.09

42

Hex. Flange Elastic Nut M8

233281414

$1.14
