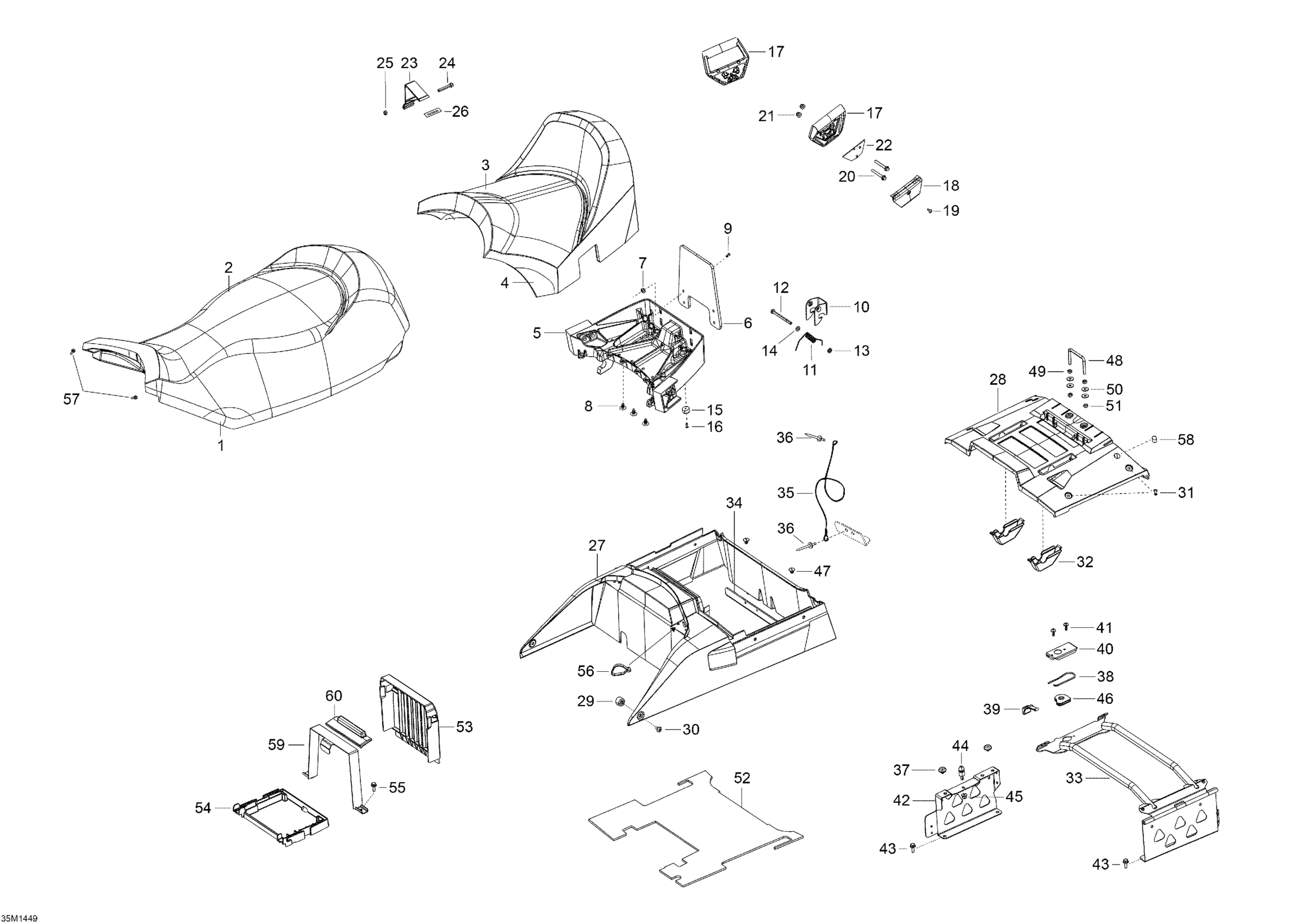

Ski-Doo TUNDRA WT 550F RER XU, 2014 Seat Diagram

#

Description
Price

1

Front Seat Foam | Model-550F

510005807

$424.58

2

Cover, front

510005722

Unavailable

3

Rear Seat Cover XU

510005320

Unavailable

4

Rear Seat Foam | Model-550F

510005811

$379.97

5

Seat Base

510004816

$90.74

6

Backrest Plate

510005330

$66.12

7

Flat Washer 6 mm

234062410

$0.64

8

Black, Dart

414644300

$0.78

9

Rivet

293150210

Unavailable

10

Latch, Black

708000144

$11.09

11

Spring

708000369

$8.60

12

Hex. Screw M6 X 80

207068044

$3.39

13

Push Nut

732610072

Unavailable

14

Flat Washer 6 mm

234061410

Unavailable

15

RUBBER STOPPER - Call your local BRP dealership

510004903

Unavailable

16

Pop Rivet 1/8”

293150015

$0.34

17

Handle

510005409

$57.99

18

Handle Cover

510005444

$36.12

19

Forming Screw M5 x 16

250000676

$0.83

20

Hex. Flange Screw, M8 X 65

207686544

$9.74

21

Hex. Flange Elastic Nut M8

233281414

Unavailable

22

Support Plate

510005936

$12.92

23

Security Lock

510005139

$55.35

24

Socket Screw HD.DIN.912

205064044

$2.06

25

Elastic Stop Nut M6

232561434

$1.55

26

SCREEN PLATE - Call your local BRP dealership

510005480

Unavailable

27

Storage Box

510006243

$218.43

28

Storage Box Cover

510006244

$39.99

29

Bushing

510005147

$9.91

30

Torx Truss Screw M6 x 12 | Model-T3

250000675

$0.92

31

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

32

Cover

510004999

$16.12

33

Lock tube

510005714

$402.28

34

Cable Support Plate

510005156

$17.66

35

Seat Retainer Cable

293750070

$10.23

36

Pop Rivet 3/16"

390402200

$0.26

37

Plug

605452114

$8.60

38

Latch Spring

269700017

$7.27

39

Puller

510005072

$18.43

40

Lock Pin Cover

510005698

$19.20

41

Forming Screw M5 x 16

250000676

$0.83

42

LOCKING PLATE (FRAME) - Call your local BRP dealership

510004998

Unavailable

43

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

44

LOCK PIN - Call your local BRP dealership

605452035

Unavailable

45

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

46

Lock Pin Guide

510005044

$14.02

47

Pop Rivet 3/16"

293150103

Unavailable

48

FASTENER PIN - Call your local BRP dealership

510004876

Unavailable

49

Hex. Nut M6

250000135

$0.51

50

Washer

20117

$5.22

51

Elastic Stop Nut M6

232561434

$1.55

52

Foam

510005043

Unavailable

53

Battery Cover

510005079

$17.66

54

Battery Support

515176804

$74.58

55

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

56

Tie-Rap

605627000

$3.68

57

Forming Screw M5 x 16

250000676

$0.83

58

Cap

572051500

$5.38

59

Battery Strap

510005143

$74.58

60

Strap Cover

510005146

$26.89
