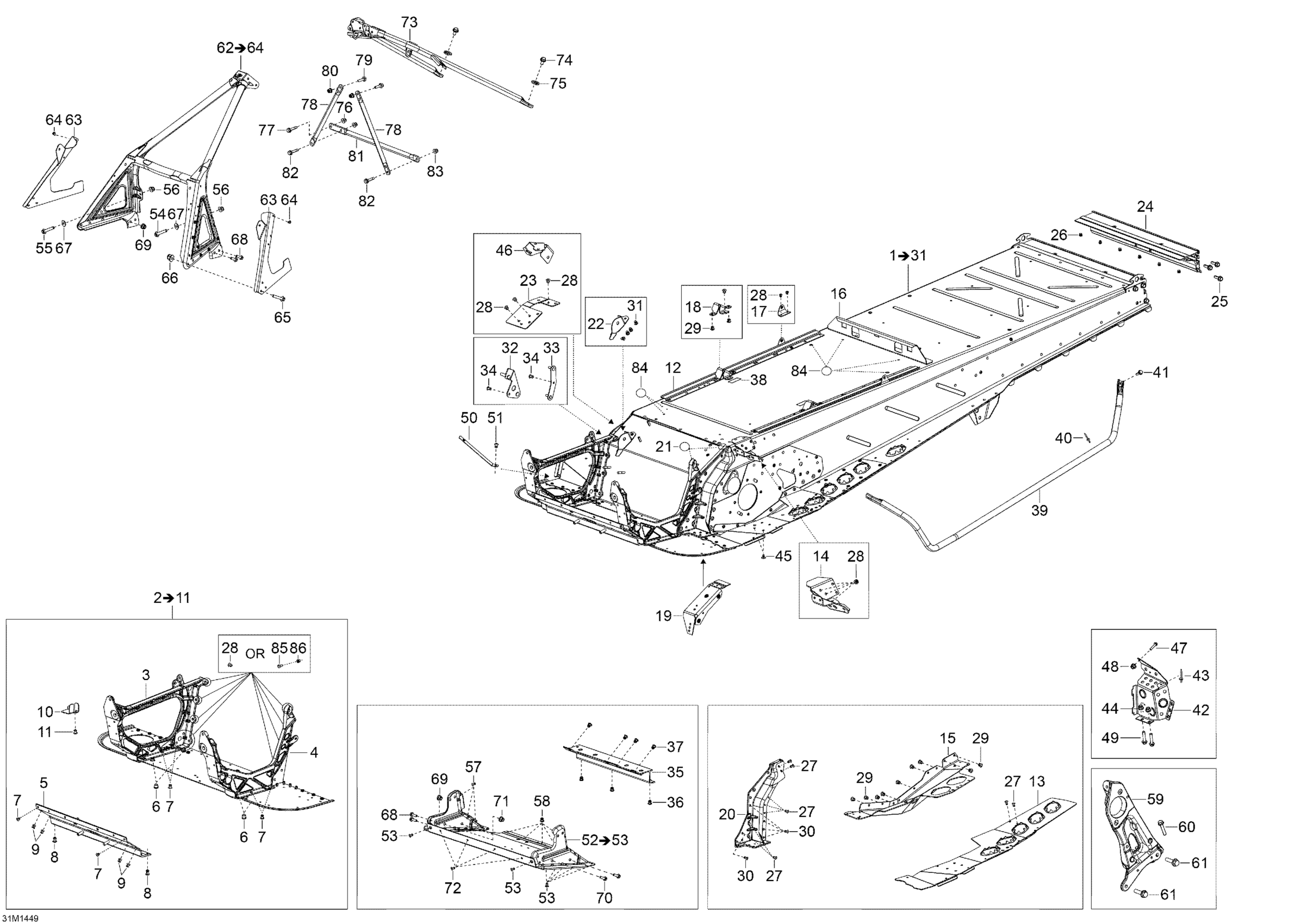

Ski-Doo TUNDRA WT 550F RER XU, 2014 Frame Diagram

#

Description
Price

1

Frame | Includes 1 To 31

518327758

Unavailable

2

MODULE E - Call your local BRP dealership | Includes 2 To 11

518328189

Unavailable

3

RH Member

518326795

Unavailable

4

LH Member

518325558

Unavailable

5

Front Member | Includes 10as to 10at

518325818

Unavailable

6

Clinch Nut Hexsert M8

605636002

$7.31

7

Avex Rivet

390909100

$0.29

8

Hemlock Rivet 6.5 mm

293150120

$7.23

9

Hemlock Rivet, 6.5 mm

293150119

$4.00

10

Muffler Support

518327219

Unavailable

11

Rivet Hucklok

293150163

$2.82

12

Fastening rail

518326107

$15.35

13

FOOTREST LH - Call your local BRP dealership

518326895

Unavailable

13

FOOTREST RH - Call your local BRP dealership

518326896

Unavailable

14

Fastening Bracket

605355235

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

BATTERY SUPPORT PLATE - Call your local BRP dealership

518325986

$73.05

17

Seat Box Bracket

518327457

$29.97

18

SUPPORT TUBE BRACKET LH - Call your local BRP dealership

518326109

$40.74

18

SUPPORT TUBE BRACKET RH - Call your local BRP dealership

518326110

$40.74

19

Clinch Nut plate

518326430

$45.99

20

LH Frame Corner

518325524

$52.28

20

RH Frame Corner

518328024

$52.28

21

Adhesive Patch

518325560

Unavailable

22

RH Support

518326520

Unavailable

23

Chain Case Support

518327877

Unavailable

24

Rear Profile

518328748

$217.66

25

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

26

Hemlock Rivet, 6.4 mm

293150174

$6.43

27

Avex Rivet

390909100

$0.29

28

Avex Rivet

390909200

Unavailable

29

Hemlock Rivet, 6.5 mm

293150119

$4.00

30

Rivet

293150183

$2.06

31

Hemlock Rivet, 6.5 mm

293150096

$3.17

32

Chain Case Counter Plate Front

518328028

Unavailable

33

Chain Case Counter Plate Rear

518328029

$15.35

34

Pop Rivet 3/16"

390402200

$0.26

35

Engine Support

518326719

Unavailable

36

Rivet Hucklok

293150163

$2.82

37

Avex Rivet

390909200

Unavailable

38

RUBBER COVER - Call your local BRP dealership

518326357

$9.69

39

LH Footboard Support Tube

518326963

$126.89

39

RH Footboard Support Tube

518326964

$126.89

40

Avex Rivet

390909100

$0.29

41

Hex. Flange Screw M6 x 20

207662056

$0.98

42

TOE HOOK LH - Call your local BRP dealership

518326671

Unavailable

42

Toe Hook RH

518328103

Unavailable

43

Avex Rivet

390909200

Unavailable

44

Clinch Nut M6 Hexsert

605636003

$4.12

45

Black, Dart

414644300

$0.78

46

Fastening Bracket

518327878

$25.35

47

Hex. Flange Screw M6 x 20

207662056

$0.98

48

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

49

Torx Screw M6 X 20

250000722

Unavailable

50

Spring Bracket

514054846

$4.34

51

Avex Rivet

390909200

Unavailable

52

S Module | Includes 300 to 300a

518326213

Unavailable

53

Avex Rivet

390909200

Unavailable

54

Hex. Flange Screw M6 X 25

207662544

Unavailable

55

Hex. Flange Screw M6 X 25

207662544

Unavailable

56

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

57

Avex Rivet

390909100

$0.29

58

Avex Rivet

390909200

Unavailable

59

PULLEY SUPPORT - Call your local BRP dealership

518326714

Unavailable

60

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

61

Hex. Flange Screw M8 X 30, Scotch Grip

207583086

$3.59

62

Front Member Ass'y | Includes 700 to 700d

518327004

Unavailable

63

LH Bumper Fastener

502007077

Unavailable

63

RH Bumper Fastener

502007078

Unavailable

64

Avex Rivet

390909200

Unavailable

65

Hex. Flange Screw M6 X 20

207662044

Unavailable

66

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

67

Flat Washer

224061201

Unavailable

68

Hex. Flange Screw M6 X 20

207662044

Unavailable

69

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

70

Hex. Flange Screw M6 X 20

207662044

Unavailable

71

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

72

Avex Rivet

390909200

Unavailable

73

Upper Support Tube Welded M6 This part replaces 518326103.

518329107

Unavailable

74

Hex. Flange Screw M6 x 20

207662056

$0.98

75

Not Available As Spare Part - Friction Washer

Unavailable

76

Hex. Flange Screw M6 X 25

207662556

Unavailable

77

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

78

Upper Lateral Column Support

518325114

Unavailable

79

Hex. Flange Screw M6 x 20

207662056

$0.98

80

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

81

Upper Column

518327876

$26.12

82

Hex Flange Screw M6 x 25

250000522

Unavailable

83

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

84

Adhesive Patch

518325560

Unavailable

85

Hex. Flange Screw M6 X 20

207662044

Unavailable

86

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable
