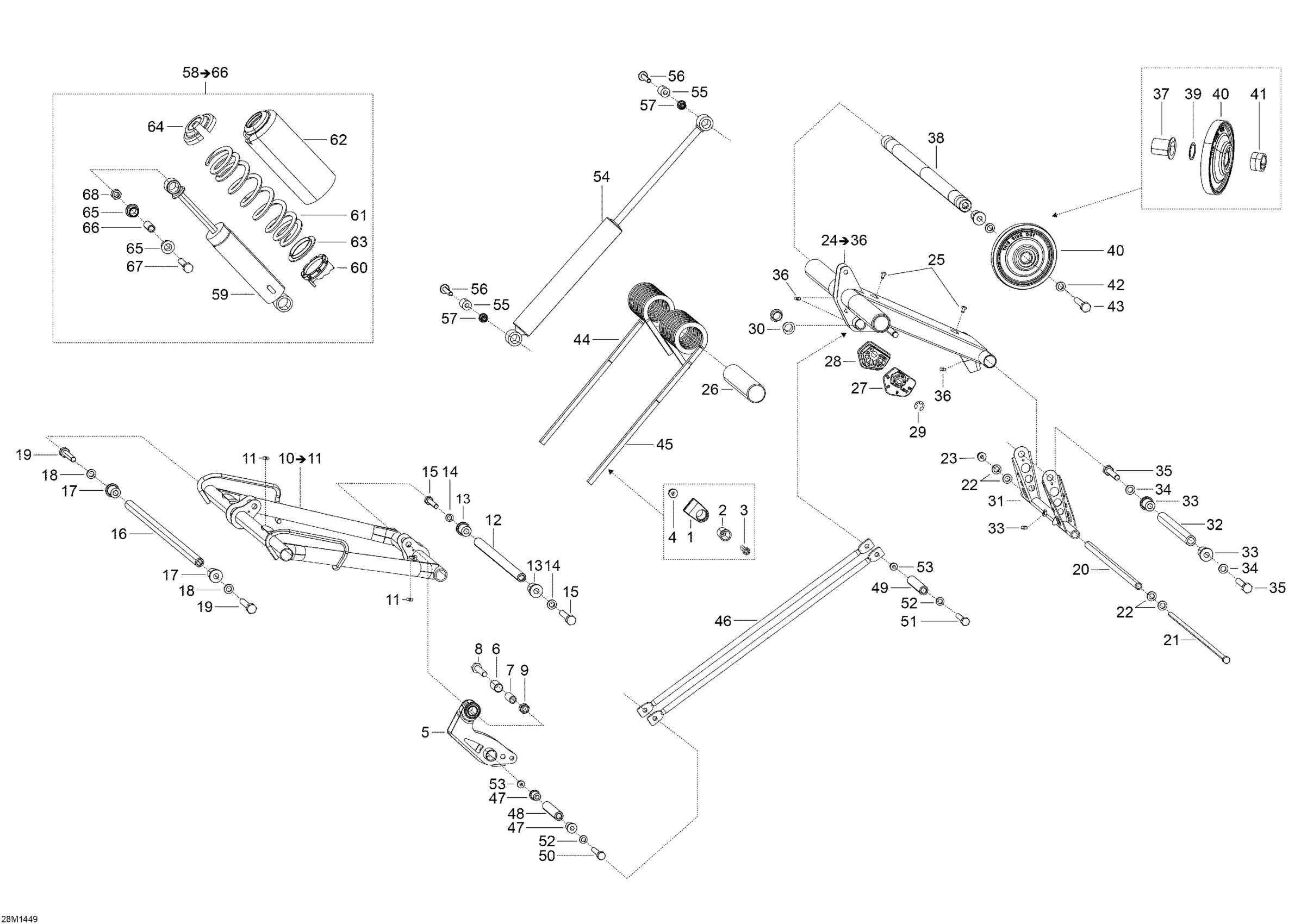

Ski-Doo TUNDRA WT 550F RER XU, 2014 Rear Suspension B Diagram
#
1
Spring Support Kit
861805547
Unavailable
2
Spring Support Kit
861805547
Unavailable
3
Socket Head Screw M8 X 25
205082544
Unavailable
4
Hex. Flange Elastic Nut M8
233281414
Unavailable
7
Bushing | Includes 240d to 240d1
503189282
Unavailable
8
Hex. Screw M10 X 1.5 X 50
207005044
Unavailable
11
Grease Fitting
408200700
Unavailable
12
Lower Shaft
503191390
Unavailable
14
Washer
503192496
Unavailable
18
Washer
503189564
Unavailable
20
Axle Pivot
503191396
Unavailable
21
Bolt 369MM
503195156
Unavailable
23
Hex. Flange Elastic Nut M8
233281414
Unavailable
24
Rear Arm Ass'y | Includes 24 To 37
503191709
Unavailable
26
Not Available As Spare Part - Friction Washer
Unavailable
27
LH Cam Adjuster
503191565
Unavailable
28
RH Cam Adjuster
503191566
Unavailable
29
E-Circlip
293370013
Unavailable
30
Swivel Bushing
503191555
Unavailable
31
Pivot Arm | Includes 3000j to 3000j3
503195154
Unavailable
34
Washer | 7415/7416. 7417/7418.
503189148
Unavailable
35
Socket Head Screw M12 X 35, Scotch Grip
205523544
Unavailable
36
Grease Fitting
408200700
Unavailable
37
Cushion
503191451
Unavailable
40
Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b
503191738
Unavailable
42
Washer
503192491
Unavailable
45
Black LH Square Spring
503192378
Unavailable
47
Swivel Bushing
503191555
Unavailable
53
Hex. Flange Elastic Nut M8
233281414
Unavailable
55
Bushing
414936000
Unavailable
56
Hex. Flange Screw M8 X 40
207684044
Unavailable
57
Hex. Flange Elastic Nut M8
233281414
Unavailable
58
Not Available As Spare Part - Friction Washer
Unavailable
59
Center Shock
503192266
Unavailable
60
Adjustment Cam
505073625
Unavailable
62
Protector
503193663
Unavailable
63
Spring Guide
503191872
Unavailable
65
Urethane Bushing
503189117
Unavailable
66
Bushing | Includes 240d to 240d1
503189282
Unavailable
67
Hex. Screw M10 X 1.5 X 50
207005044
Unavailable
