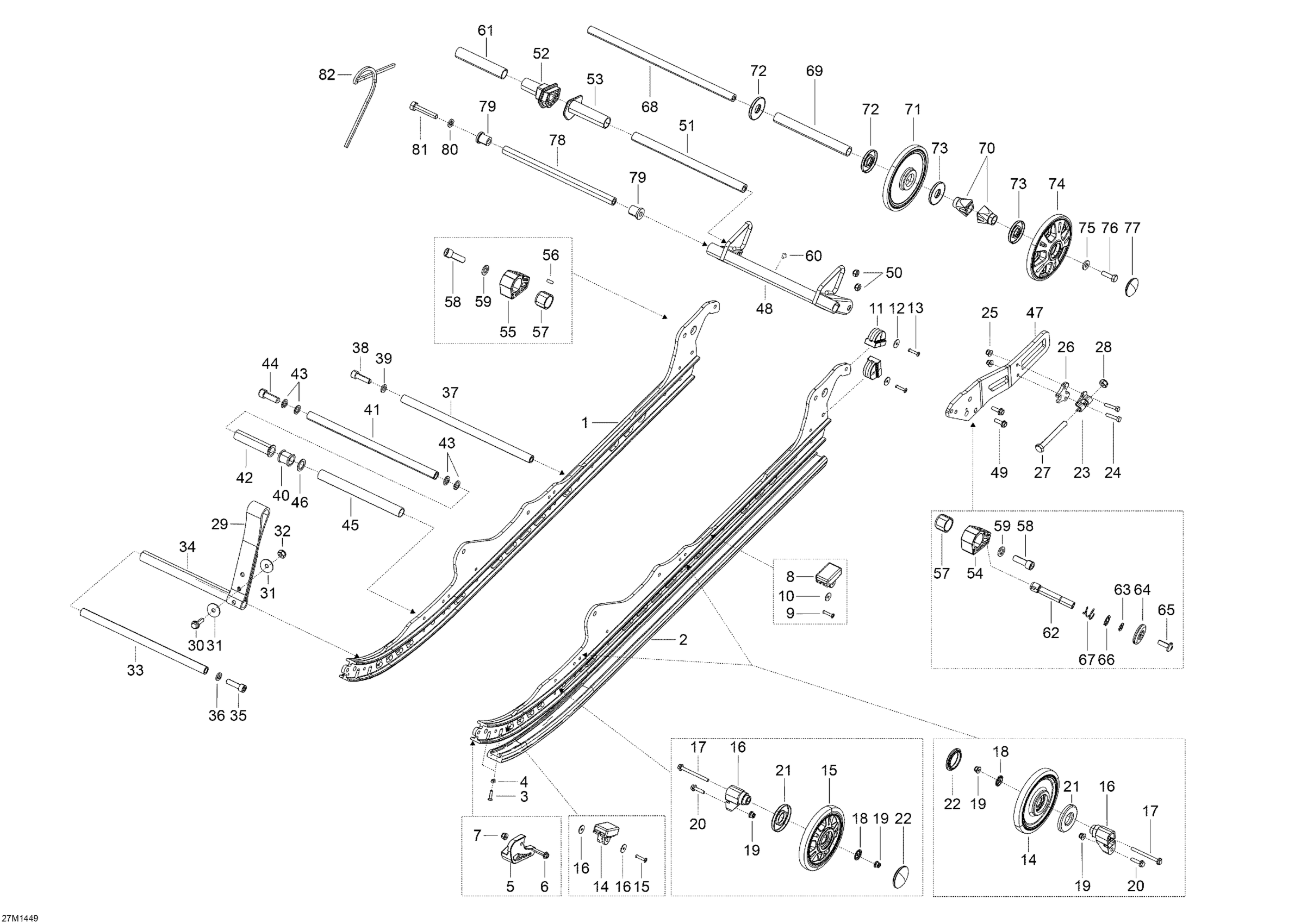

Ski-Doo TUNDRA WT 550F RER XU, 2014 Rear Suspension A Diagram

#

Description
Price

1

Runner | Model-LE

503193397

$230.74

2

Slider 137

503191619

$33.05

3

Phillips Screw M6 X 25

208562531

$1.74

4

Elastic Stop Nut M6

232561434

$1.55

5

Runner Protector

503192299

$23.82

6

Hex. Flange Screw M5 X 25

207652544

$0.42

7

Hex. Flange Elastic Nut M5

233251414

$1.66

8

Rubber Stopper

503190576

$10.23

9

Pop Rivet 3/16"

293150142

$2.11

10

Washer

503191273

$1.06

11

Rubber Stopper

503191291

$18.43

12

Pop Rivet 3/16"

293150142

$2.11

13

Washer

503191273

$1.06

14

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$46.12

15

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

503191152

$46.12

16

Casted Support

503193894

$12.75

17

Hex. Flange Screw M6 X 70

207667056

$3.61

18

Wheel Cup M6

503191820

$4.66

19

Hex. Flange Elastic Nut M6

233261466

$1.66

20

Hex. Flange Screw M6 X 25

207662556

$3.61

21

Labyrinth Seal

503190434

$4.29

22

Black, Wheel Cap

503192771

$2.28

23

Tensioner

503192583

$5.85

24

Hex Cap Screw DIN.931

250000480

$5.22

25

Elastic Flange Nut M6 X 1.0

233261416

$1.74

26

Spacer

503193250

$13.95

27

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

28

Elastic Locking Nut M10 X 1.5

233601416

$1.68

29

Stopper Strap

503192360

$19.97

30

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

31

Flat Washer

224081301

$0.86

32

Hex. Flange Elastic Nut M8

233281414

$1.14

33

Axle Strap

503191418

$55.35

34

Spacer

503191419

$2.28

35

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.39

36

Washer

503189564

$0.72

37

Axle Strap

503191418

$55.35

38

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.39

39

Washer

503189564

$0.72

40

Bushing

503189271

$10.46

41

Shaft

503191420

$128.43

42

Center Bushing

503191259

$8.97

43

Washer

503189276

$3.20

44

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.91

45

Spacer

503191421

$46.12

46

Washer

503189273

$3.20

47

Rail Pivot RH

503192435

$83.82

47

Rail Pivot LH

503192434

$83.82

48

Welded Pivot | Includes 100c to 100c3

503191414

$96.12

49

Hex. Flange Screw M8 X 25

207682534

$1.06

50

Hex. Elastic Stop Nut M8

232581414

$0.47

51

Cam Axle

503191711

$26.89

52

RH Spring Cam

503191190

$13.78

53

LH Spring Cam

503191668

$10.18

54

LH Block

503192426

$12.69

55

RH Block

503192427

$12.69

56

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

57

Block Guide

503189488

$37.66

58

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.91

59

Washer | 7415/7416. 7417/7418.

503189148

$2.72

60

Grease Fitting

408200700

$2.80

61

Spacer

503191713

$10.23

62

Rode

503192437

$5.85

63

Flat Washer M5

234051410

$0.44

64

Handle

503192438

$4.66

65

Torx Screw M5 X 14

250000742

$1.20

66

Circlip

293370068

$0.92

67

Compression Spring

503192436

$37.66

68

Rear Axle

503191408

$67.66

69

Spacer

503196316

$26.89

70

Rear Wheel Spacer

503190428

$6.06

71

Black, Wheel Ass'y, 165 mm | Includes 670 to 670b

503192140

$49.97

72

Labyrinth Seal

503190682

$5.85

73

Labyrinth Seal

503190434

$4.29

74

Deep Black, Wheel Ass'y, 165 mm | Includes 600 to 600b

503192128

$49.97

75

Washer

503190439

$5.82

76

Hex. Screw With Nylon

250000019

$1.42

77

Black, Wheel Cap

503192771

$2.28

78

Lower Shaft

503191390

$27.66

79

Bushing

503189324

$11.17

80

Washer

503192496

$0.75

81

Hex. Screw S.Grip M10 X 55

250000605

$6.18

82

Spring

503194624

$29.97
