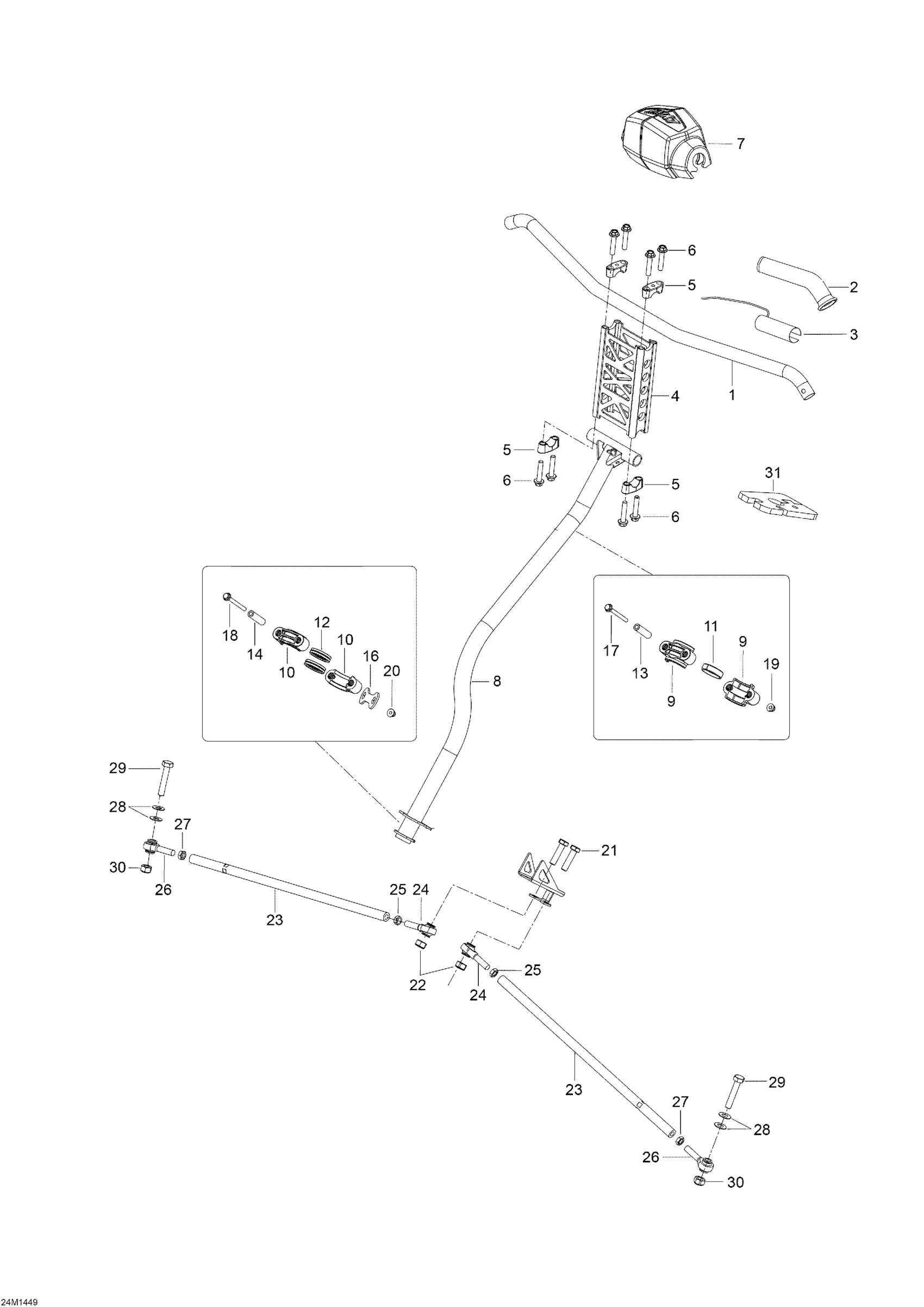

Ski-Doo TUNDRA WT 550F RER XU, 2014 Steering Diagram

#

Description
Price

1

Handle Bar

506152722

$145.35

2

Grip | WAKE This part replaces M5340464.

506152483

$9.85

3

Heating Element

506152467

Unavailable

4

Extension Kit ( 205mm ) This part replaces 860200269.

860200821

Unavailable

5

Steering Support | Includes 40 to 40a

506152751

$10.09

6

Hex. Flange Screw M8 x 40

250000285

$0.77

7

Steering Pad

506152192

Unavailable

8

Steering Column

506152963

$285.35

9

Upper Half-Housing

506152508

$7.40

10

Lower Half-Housing

506152217

$5.57

11

Upper Anti-Vibration Gasket

506152509

$4.52

12

Lower Vibration Ring

506152518

Unavailable

13

Housing Bushing

506152297

Unavailable

14

Lower Housing Bushing

506152388

Unavailable

16

Stopper Plate

506152389

Unavailable

17

Hex. Flange Screw M6 X 70

207667056

$3.61

18

Hex. Flange Screw, M8 X 65

207686544

$9.74

19

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

20

Hex. Flange Elastic Nut M8

233281414

Unavailable

21

Hex. Screw M10 X 40

207004044

$4.65

22

Elastic Stop Nut M10

232500416

$1.56

23

Tie Rod

506152436

Unavailable

24

LH Thread Ball Joint

506152081

$39.97

25

LH Threaded Hex. Jam Nut M10

250100016

Unavailable

26

RH Threaded Ball Joint

506152019

$39.97

27

RH Threaded Hex. Jam Nut M10

732610010

Unavailable

28

Washer

506152194

$4.42

29

Hex. Screw M10 X 45

207004544

Unavailable

30

Elastic Stop Nut M10

232500416

$1.56

31

Cushion

506152404

$25.35
