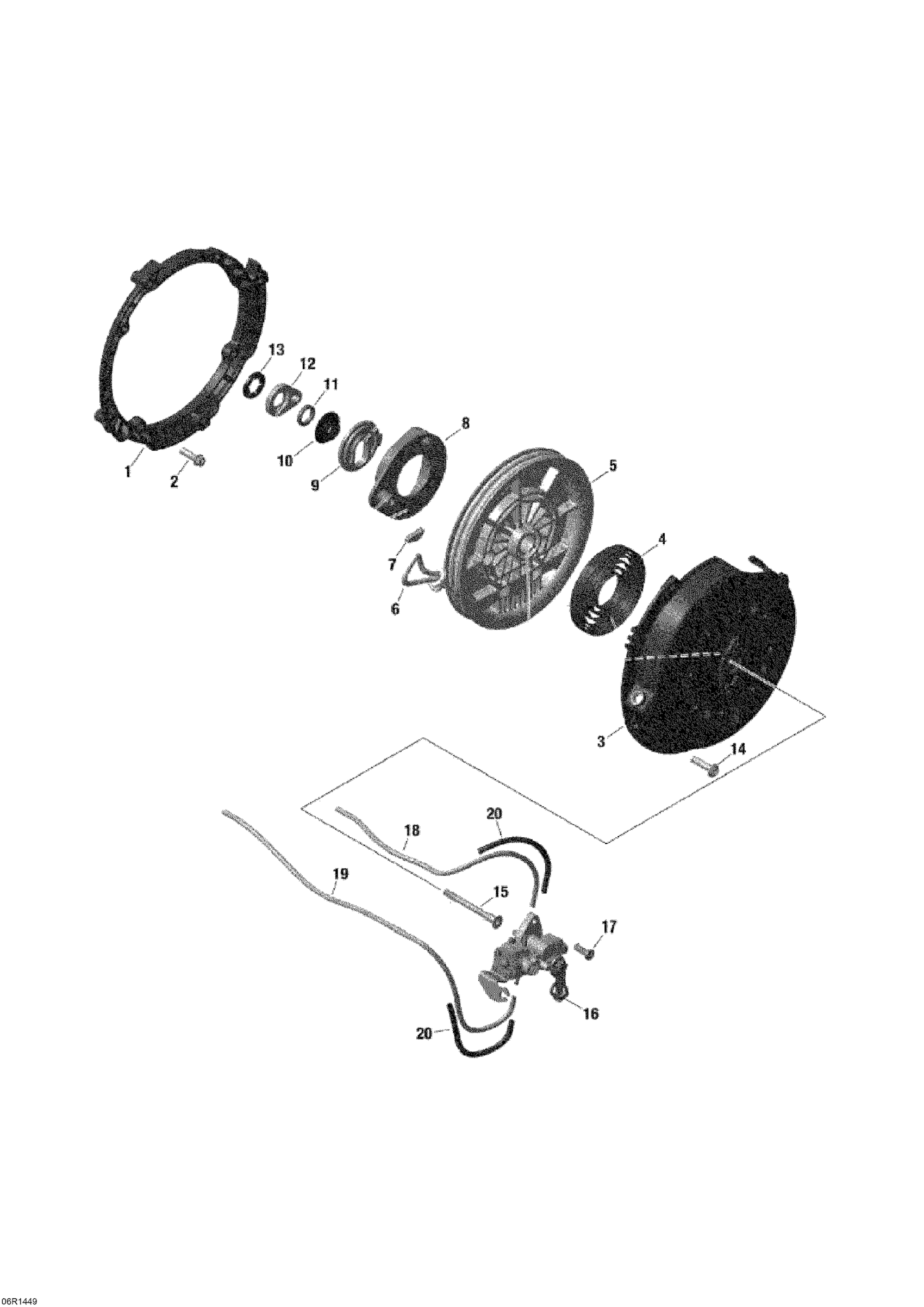

Ski-Doo TUNDRA WT 550F RER XU, 2014 Rewind Starter And Oil Pump Diagram

#

Description

Price

1

Flange Connector

420810955

Unavailable

2

Torx Flange Screw M6 X 20

420440207

$2.54

-

Rewing Starter Ass'y | Includes 3a to 13

420890175

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Rewind Spring

420939115

$25.32

5

Rope Sheave

420852480

Unavailable

6

Was 412500100 Rope-Starter

219704403

Unavailable

7

Key Clamp

420852070

Unavailable

8

Pawl

420852296

Unavailable

9

Pawl Lock | Includes no. 8-9

420852640

$5.51

10

Stage Sleeve

420847926

Unavailable

11

O-Ring

420250400

Unavailable

12

Lock Ring

420852520

Unavailable

13

Locking Element

420845560

Unavailable

14

Plastite Screw

420940431

Unavailable

15

Oil Pump Shaft

420820090

Unavailable

16

Oil Pump

420892291

Unavailable

17

Screw

420841971

Unavailable

18

Oil Hose 1500Mm Long

219704404

Unavailable

19

Oil Hose 1500Mm Long

219704404

Unavailable

20

Isolation Line

420960728

Unavailable
