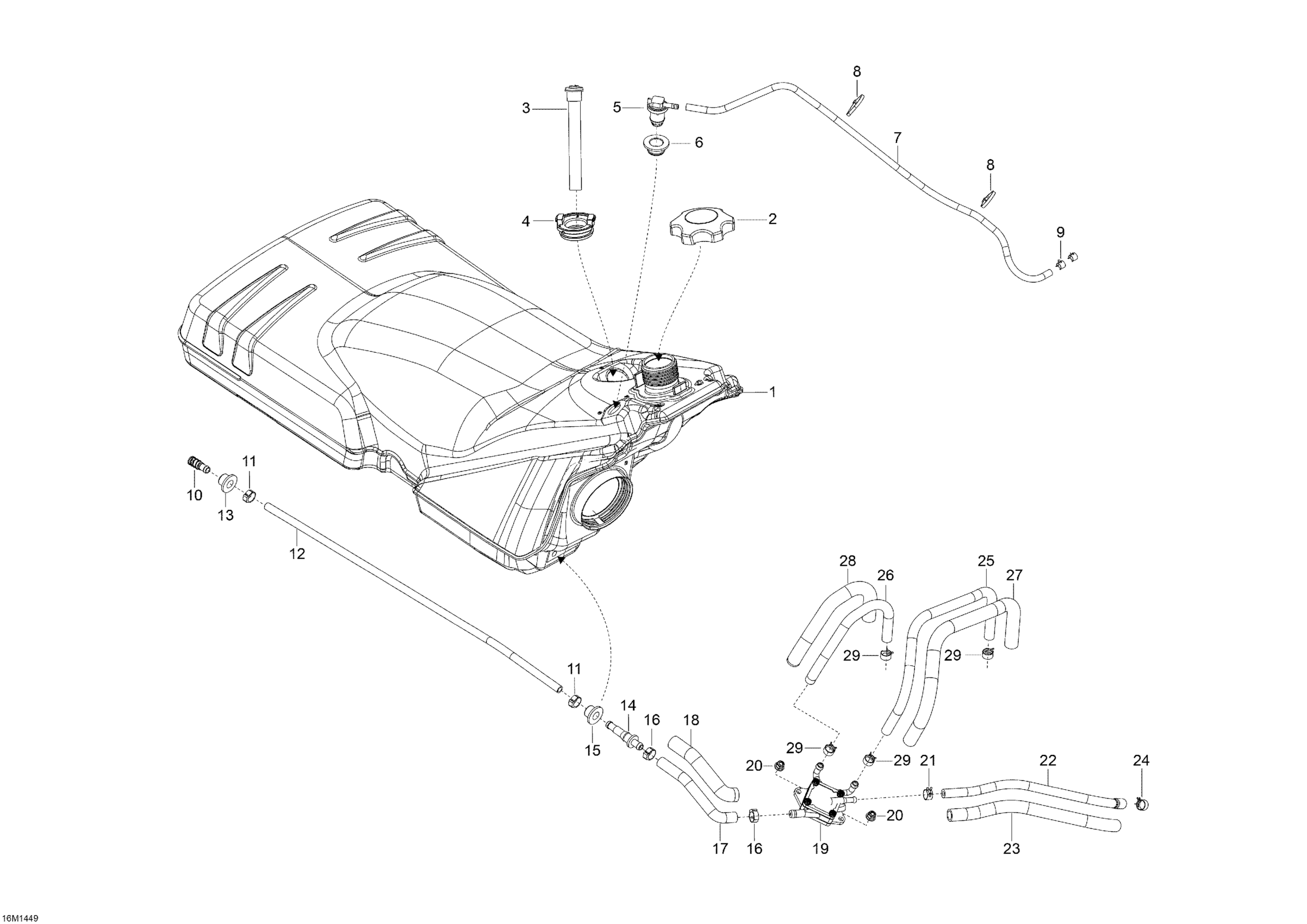

Ski-Doo TUNDRA WT 550F RER XU, 2014 Fuel System Diagram

#

Description
Price

1

Fuel Tank

513033632

Unavailable

2

Fuel Tank Cap 95 Octane | Europe

513033723

$25.35

3

Fuel Sensor

513033538

$77.66

4

Grommet

293720058

$11.00

5

Check Valve

513033842

$33.82

6

Grommet

513033596

$18.43

7

Polyurethane Hose 10000Mm Long

219704410

$46.12

8

Tie-Rap 180 mm

414115200

$0.09

9

Clip

414227300

$1.45

10

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$9.63

11

Norma Spring Clamp

513033010

$8.68

12

Polyurethane Hose 1000Mm Long

219704391

Unavailable

13

Grommet

280000674

$4.42

14

Male Connector

414872700

$1.86

15

Grommet

513033435

$3.73

16

Crimp Clamp

293650053

$2.42

17

Molded Hose - 3/8 I.D.

513033626

$12.74

18

Tubing 16 Mm 1000Mm Long

219704408

$6.23

19

Fuel Pump

403901813

$84.99

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

21

Spring Clamp

414415200

$0.83

22

Formed Hose

513033553

$23.82

23

Tubing 16 Mm 1000Mm Long

219704408

$6.23

24

Universal Spring Clamp

513033029

$5.11

25

Hose 3000Mm Long

219704612

$79.97

26

Hose 3000Mm Long

219704612

$79.97

27

Tubing 16 Mm 1000Mm Long

219704408

$6.23

28

Tubing 16 Mm 1000Mm Long

219704408

$6.23

29

Universal Spring Clamp

513033029

$5.11
