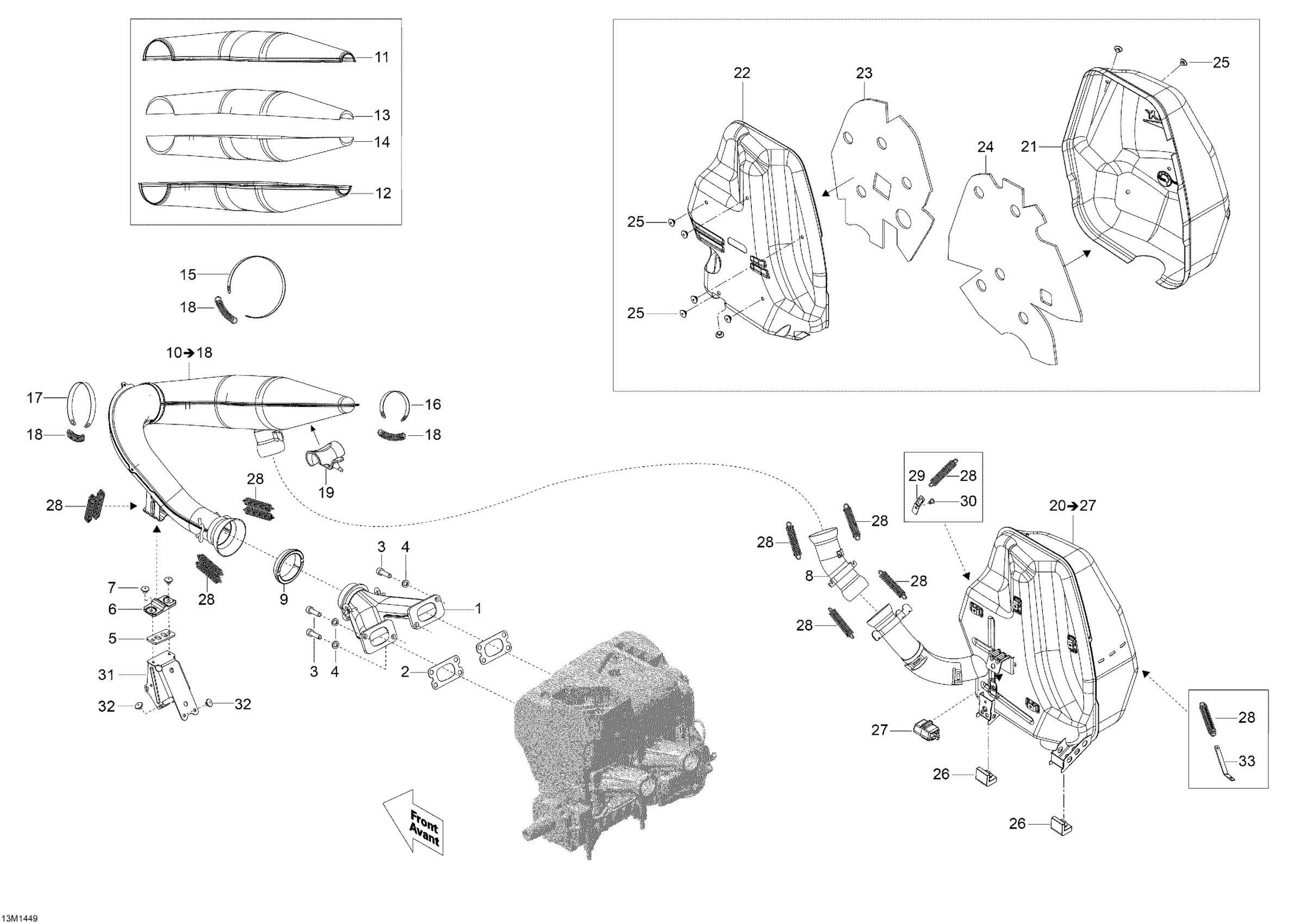

Ski-Doo TUNDRA WT 550F RER XU, 2014 Exhaust System Diagram

#

Description
Price

1

Exhaust Manifold

420673065

$349.99

2

Gasket 1.0 mm

420831849

$9.09

3

Socket Head Screw M8 X 30

205083044

$1.49

4

Washer

514053837

$4.49

5

Riser Shim

514054806

$11.49

6

Bumper

514054617

$16.99

7

Pop Rivet 3/16”

293150108

$1.49

8

Exhaust Elbow

514054411

$81.99

9

Exhaust Gasket

514053644

$26.99

10

TUNED PIPE ASS'Y - Call your local BRP dealership | Includes 200 to 200h

514054414

Unavailable

11

Rear Upper Half-enveloppe

514054208

$54.99

12

Rear Lower Half Envellope

514054210

$54.99

13

Upper Insulating Wool

514054244

$16.99

14

Lower Insulating Wool

514054243

$16.99

15

Retaining Strap

514053502

$11.99

16

RETAINING STRAP - Call your local BRP dealership

514053491

Unavailable

17

Retaining Strap

514053498

$11.99

18

Spring

514053643

$6.49

19

Bumper

514054513

$21.99

20

Muffler Ass'y | Includes 400 to 400g

514055055

$795.49

21

RH Deflector

514054984

$59.99

22

LH DEFLECTOR - Call your local BRP dealership

514055069

Unavailable

23

LH Insulated Wool

514054421

$21.99

24

RH Insulating Wool

514054711

$21.99

25

Pop Rivet 3/16”

390910000

$1.49

26

Lower Stopper

514054529

$18.49

27

Upper Stopper

514054606

$19.99

28

Spring

415107100

$6.49

29

Spring Bracket

514054522

$8.59

30

Pop Rivet 3/16"

390402200

$1.49

31

Exhaust Muffler Support

514054767

$20.49

32

Hemlock Rivet, 6.5 mm

293150096

$3.39

33

Spring Bracket

514054846

$4.69
