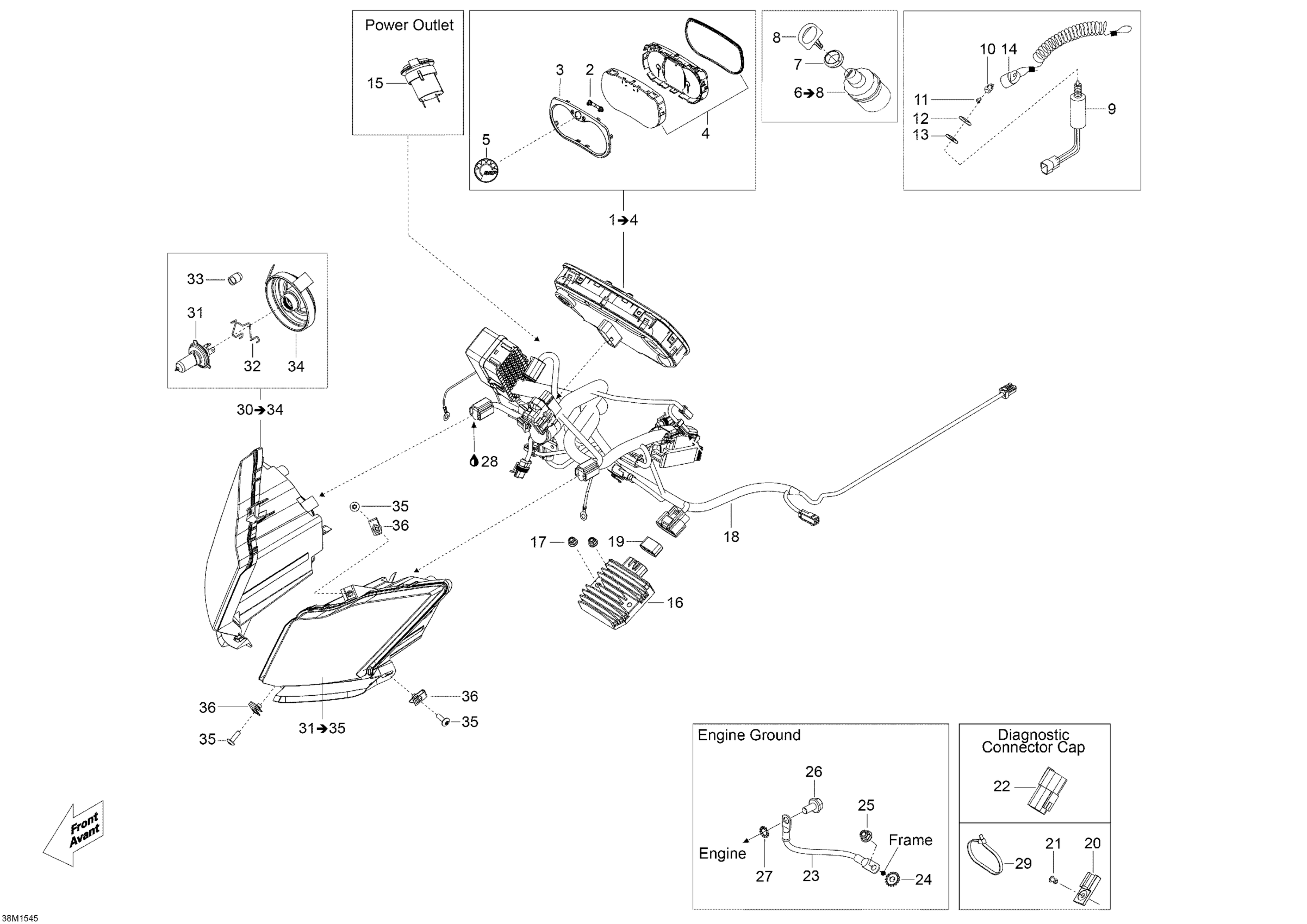

Ski-Doo Tundra WT 550 RER, 2015 Electrical System _38M1545 Diagram

#

Description
Price

1

Indicator | Includes 10 to 10c

515177279

$535.35

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

BRP Logo 20MM x 2MM | XTP

516006224

$10.05

6

Ignition Swirch

515177063

$41.57

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Brake Switch

515175653

$15.57

10

Switch Nut

515145900

$10.83

11

Plunger Cap

570151100

$10.14

12

Flat Washer

250200084

$2.76

13

RH Threaded Hex. Jam Nut M10

732610010

$0.72

14

Cap Ass'y

515178283

$37.66

15

DC Outlet

710001248

$31.17

16

Voltage Regulator

515176699

$149.99

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

18

Main Harness

515177505

Unavailable

19

Lock

515176681

$18.43

20

Clip

270000141

$8.33

21

Pop Rivet 3/16"

390402200

$0.26

22

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

Unavailable

23

Ground Wire

515176745

$27.66

24

Lock Washer Serrated M6

250200041

$0.92

25

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

26

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$1.74

27

Serrated Lock Washer 8 mm

234481608

$1.09

28

Not Available As Spare Part - Friction Washer

Unavailable

29

Tie Wrap 94 mm | 4X4

293750001

$0.83

29

Tie Wrap 142 mm

293750002

$0.88

29

Tie-Rap 180 mm

414115200

$0.09

29

Tie Wrap 368 mm

293750008

$0.85

30

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$139.97

30

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$139.97

31

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.05

32

Not Available As Spare Part - Friction Washer

Unavailable

33

Cap

515176498

$12.18

34

Rubber Cap Protector

219800280

$17.66

35

Torx Screw M6 X 20

250000722

$1.34

36

Panel Nut M6 X 1.0

250100198

$1.73
