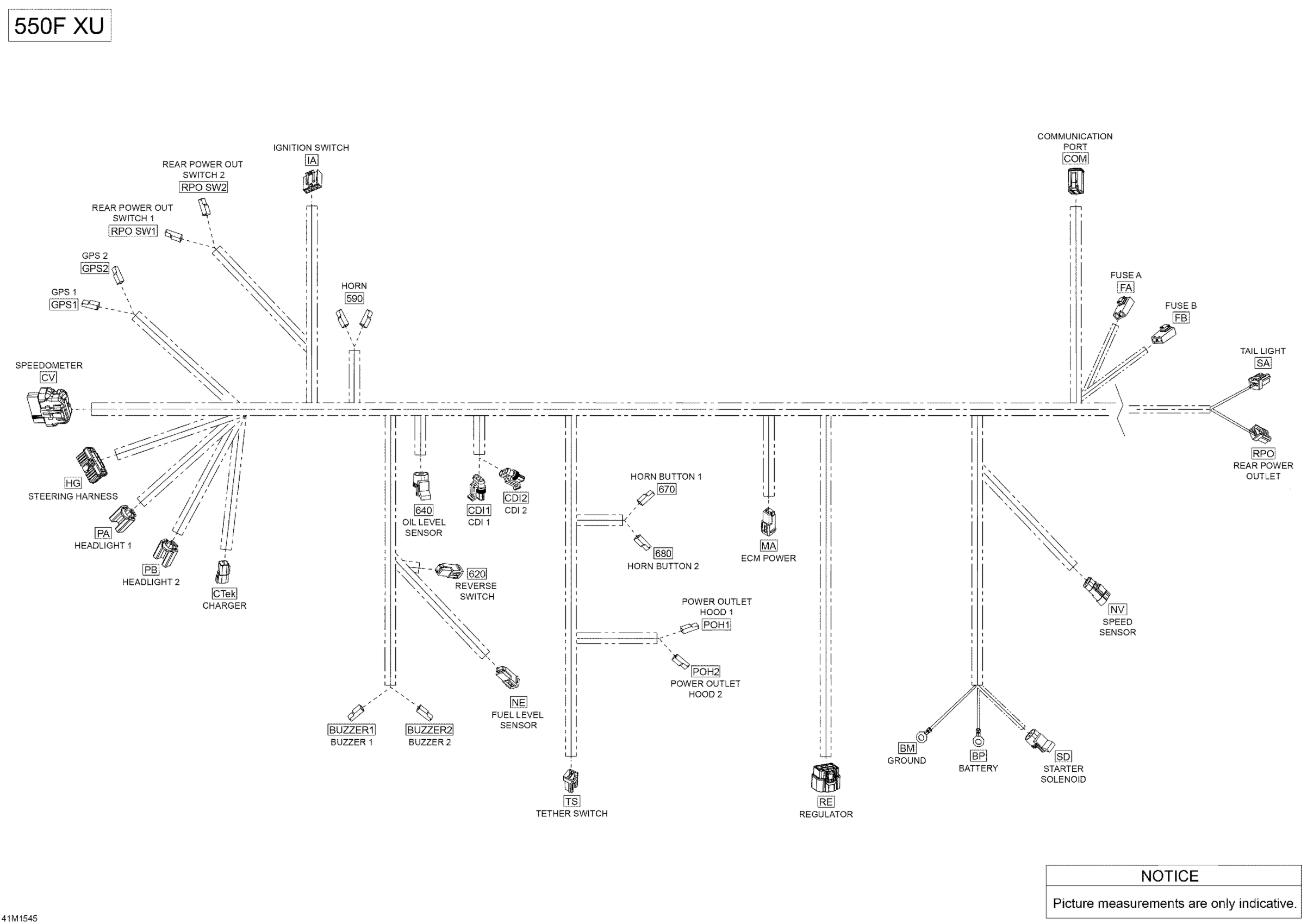

Ski-Doo Tundra WT 550 RER, 2015 Electrical Harness _41M1545 Diagram

#

Description
Price

1

Main Harness

515177505

Unavailable

2

Tubing 6 Mm 3000Mm Long

219704425

$12.75

2

Was 409901700 Tubing (9 mm)

219704399

$77.58

2

Tubing 10 MM 1000MM Long

219704407

$2.52

2

Was 409901800 Tubing (13 mm)

219704400

$10.79

2

Tubing 16 Mm 1000Mm Long

219704408

$7.15

2

Was 409901600 Tubing 19mm

219704398

$87.28

2

Not Available As Spare Part - Friction Washer

Unavailable

2

Tubing 25 MM 1000MM Long

219704402

$14.57

3

Not Available As Spare Part - Friction Washer

Unavailable

590

Female Housing, 2 Circuits

515175658

$14.90

590

Female Terminal

515175231

$4.00

620

Female Terminal Housing, 2 Circuits

515176296

$4.96

620

Female Terminal

515175231

$4.00

640

Male Connector, 2 Circuits

278001113

$14.52

640

Female Terminal

278001114

$2.93

670

Female Terminal Housing, 1 Circuit

409010400

$7.25

670

Female Terminal

409010100

$5.30

680

Female Terminal Housing, 1 Circuit

409010400

$7.25

680

Female Terminal

409010100

$5.30

BM

Open Barrel

278000992

$2.06

BP

Open Barrel

278000992

$2.06

BUZZER1

Female Terminal Housing, 1 Circuit

409010400

$7.25

BUZZER1

Female Terminal

409010100

$5.30

BUZZER2

Female Terminal Housing, 1 Circuit

409010400

$7.25

BUZZER2

Female Terminal

409010100

$5.30

CDI1

Female Housing, 4 Circuits

409209700

$14.90

CDI1

Female Terminal

278001014

$3.12

CDI1

Wire Seal

278001013

$3.12

CDI2

Female Housing, 3 Circuits

409209600

$34.30

CDI2

Female Terminal

278001014

$3.12

CDI2

Wire Seal

278001013

$3.12

COM

Male Housing, 6 Circuits

515175673

$12.66

COM

Male Wedge, 6 Circuits

515175678

$4.96

COM

Female Terminal

278000632

$1.94

COM

Sealing Cap

293000052

$2.93

CTek

Mâle Terminal Housing, 2 Circuits

278001674

$29.07

CTek

Male Lock, 2 Circuits

278001672

$2.93

CTek

Male Terminal

515175568

$7.25

CV

Female Housing, 24 Circuits

515175801

$8.73

CV

Retainer Block

515175802

$10.34

CV

Wire Seal

515175803

$2.76

CV

BLOCK - Call your local BRP dealership

515175804

Unavailable

CV

LOCK - Call your local BRP dealership

515175805

Unavailable

CV

Female Terminal

515175806

$0.93

CV

Plug

515175812

$1.96

CV

Female Housing

710000399

$13.60

FA

Female Terminal

409004200

$4.28

FA

Fuse Holder

409004000

$6.79

FA

Clip

710000992

$3.88

FA

Not Available As Spare Part - Friction Washer

Unavailable

FB

Female Terminal

409004200

$4.28

FB

Fuse Holder

409004000

$6.79

FB

Clip

710000992

$3.88

FB

Not Available As Spare Part - Friction Washer

Unavailable

GPS1

Female Terminal Housing, 1 Circuit

409010400

$7.25

GPS1

Female Terminal

409010100

$5.30

GPS2

Female Terminal Housing, 1 Circuit

409010400

$7.25

GPS2

Female Terminal

409010100

$5.30

HG

Female Terminal Housing, 13 Circuits

515175350

$12.49

HG

Female Terminal

515175231

$4.00

HG

Female Terminal

515175282

$6.24

IA

Female Terminal Housing, 4 Circuits

710000272

$9.84

IA

Lock, 4 Circuits

710000273

$8.72

IA

Female Terminal

710000274

$8.72

MA

Female Terminal Housing, 2 Circuits

515175670

$7.61

MA

Female Lock, 2 Circuits

515175675

$4.28

MA

Female Terminal

278000632

$1.94

NE

Male Terminal Housing, 2 Circuits

515175654

$7.25

NE

Male Terminal

515175232

$1.45

NV

Housing

710000568

$10.51

NV

Male Terminal

515176164

$6.24

NV

Clip

710000992

$3.88

NV

Wire Seal

515176621

$6.79

PA

Female Housing

515176908

$11.69

PA

Terminal

515176909

$2.06

PB

Female Housing

515176908

$11.69

PB

Terminal

515176909

$2.06

POH1

Female Terminal Housing, 1 Circuit

409010400

$7.25

POH1

Female Terminal

409010100

$5.30

POH2

Female Terminal Housing, 1 Circuit

409010400

$7.25

POH2

Female Terminal

409010100

$5.30

RE

Connector

515176530

$29.07

RE

Terminal

515176531

$10.99

RE

Seal

515176594

$6.24

RE

Lock

515176681

$17.88

RPO

Male Housing, 3 Circuits

515175494

$14.90

RPO

Male Terminal

515175232

$1.45

RPO SW1

Female Terminal Housing, 1 Circuit

409010400

$7.25

RPO SW1

Female Terminal

409010100

$5.30

RPO SW2

Female Terminal Housing, 1 Circuit

409010400

$7.25

RPO SW2

Female Terminal

409010100

$5.30

SA

Female Housing, 3 Circuits

515175495

$14.90

SA

Female Terminal

515175231

$4.00

SD

Male Connector, 2 Circuits

278001113

$14.52

SD

Female Terminal

278001114

$2.93

TS

Female Terminal Housing, 2 Circuits

515176296

$4.96

TS

Female Terminal

515175231

$4.00
